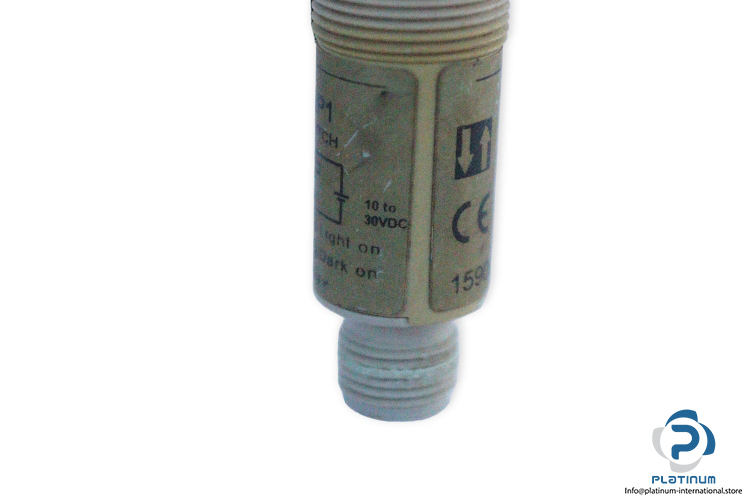

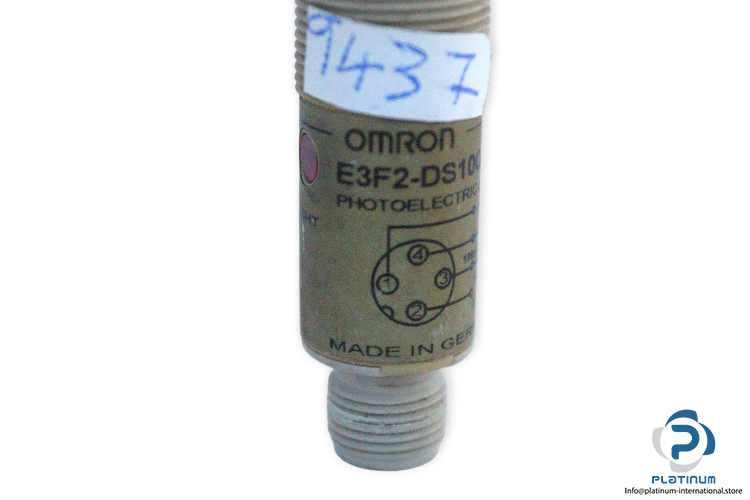

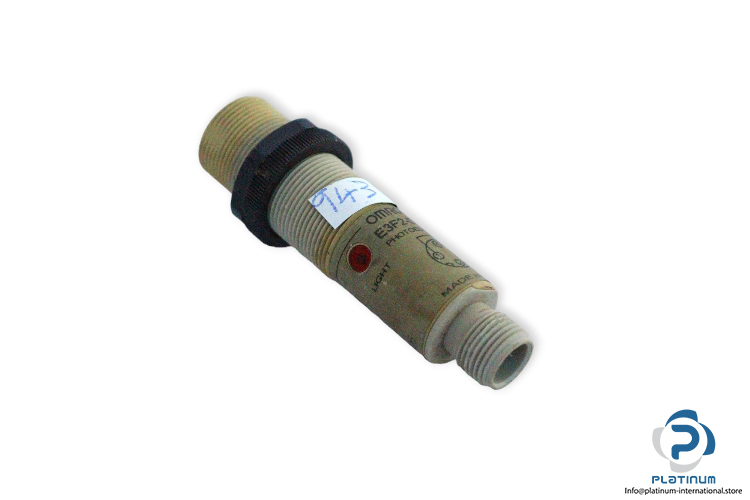

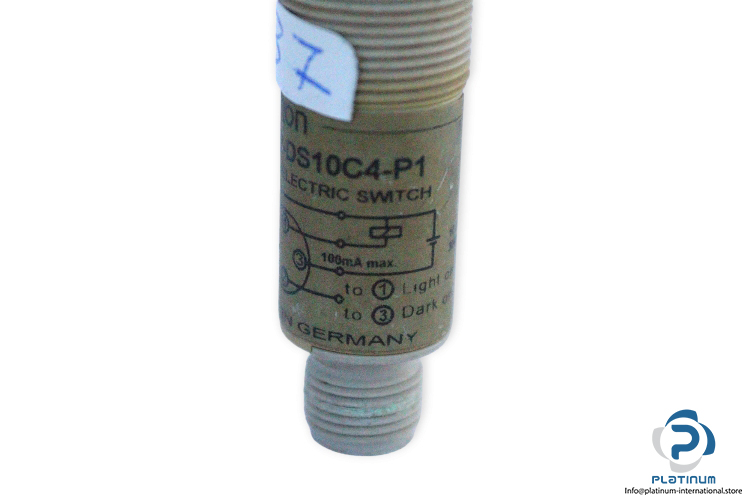

Omron E3F2-DS10C4-P1 Inductive Reflective Sensor
Manufacturer: OMRON
Type: Inductive Reflective Sensor
Model: E3F2DS10C4P1
Sensing Range: 100 mm
Light Source (Wave Length): Infrared LED (880 nm)
Operating Voltage: 10 … 30 V DC
Current Consumption Max.: 25 mA
Switching Output: NPN
Switching Output Current: 100 mA
Operation Mode: Light-ON /Dark-ON
Electrical Connection: M12 Connector, 4-Pin
Material: ABS Plastic
Length, Diameter: 73, 22 mm
Protection Class: IP67/IP69K
Operating Temperature: -25 … 55 °C
