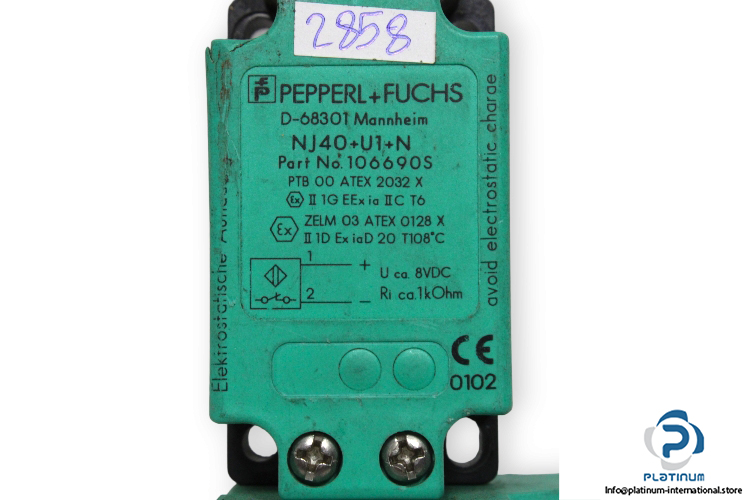

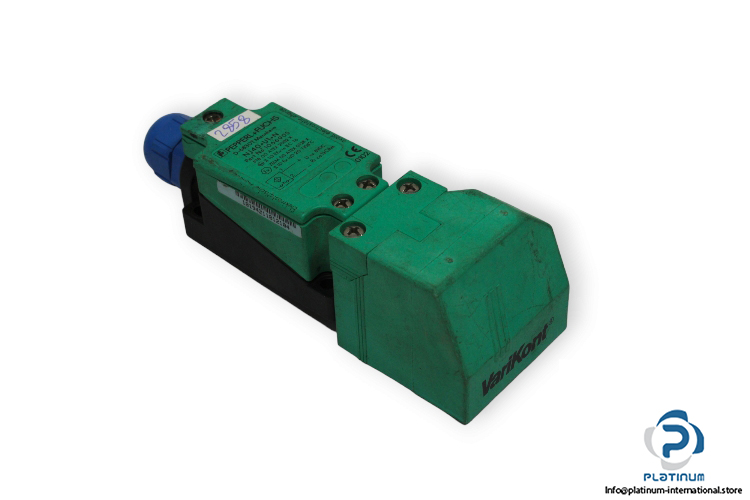

Pepperl+Fuchs NJ40+U1+N Inductive Sensor
Manufacturer: Pepperl+Fuchs
Type: Inductive sensor
Model: NJ40U1N
Part No.: 106690S
Rated Operating Distance: 40 mm
Assured Operating Distance: 0 … 32.4 mm
Operating Voltage: 8 V DC
Current consumption:
Measuring plate not detected: ≥ 3 mA
Measuring plate detected: ≤ 1 mA
Switching Frequency: 0 … 80 HZ
Output: 2-wire
Contact: Normally close
Installation: non-flush
Connection type: screw terminals
Housing material: PBT
Degree of protection: IP68
Ambient temperature: -25 … 100 °C
