Pepperl+Fuchs NJ40+U1+W Inductive Sensor
इस्तेमाल किया हुआ
स्टॉक में उपलब्ध2 यूनिट्सभेजने के लिए तैयार
111,11$
Inductive Sensor
The PEPPERL+FUCHS NJ40+U1+W inductive sensor offers a 40 mm sensing range, IP68 protection, and dual switching (N.O./N.C.) for rugged and versatile industrial detection.
नया
स्टॉक में उपलब्ध 139,99$
यह उत्पाद ब्रांड न्यू भी उपलब्ध है
नई संस्करण देखें →
विशाल भंडार
वैश्विक शिपिंग
विशेषज्ञ सहायता
गुणवत्ता की गारंटी

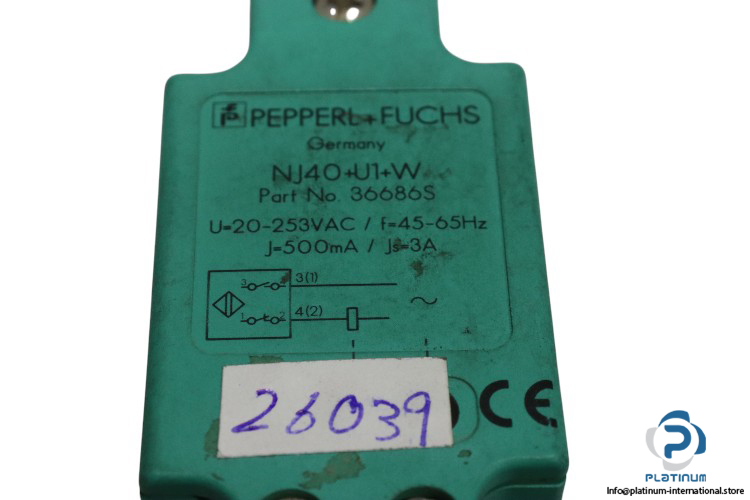

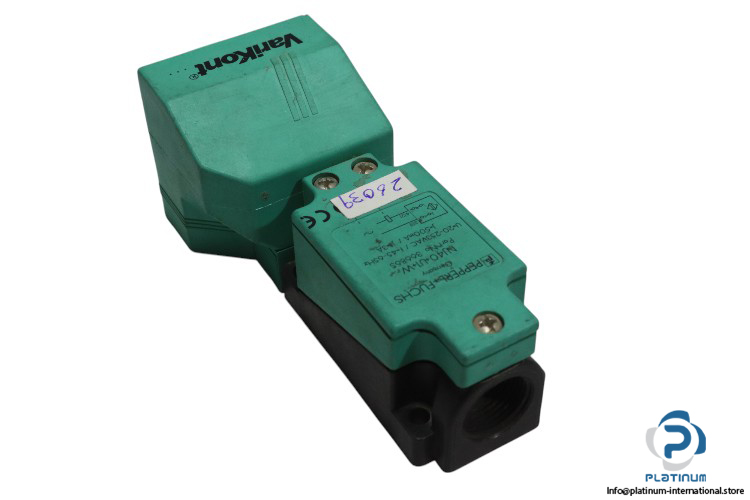

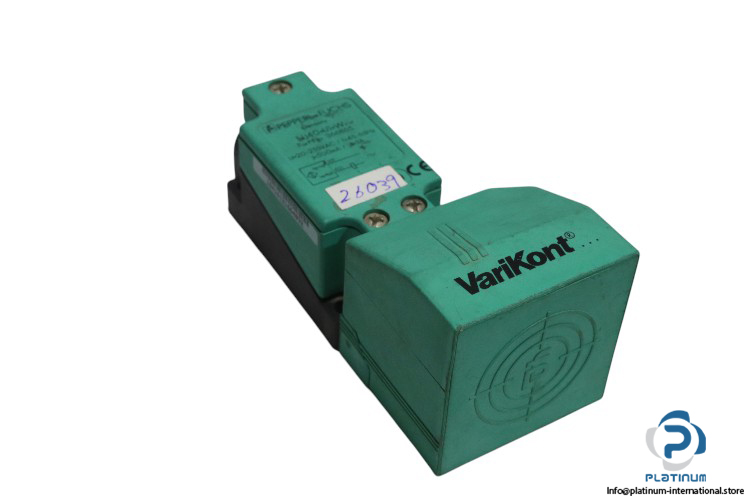

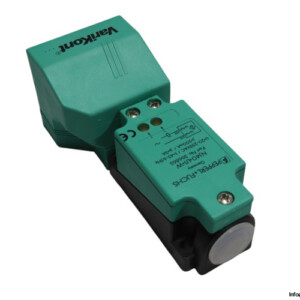

PEPPERL+FUCHS NJ40+U1+W Inductive Sensor
The PEPPERL+FUCHS NJ40+U1+W is a robust inductive sensor designed for precise, contactless object detection in industrial environments. With a wide voltage range, dual switching functionality, and IP68-rated protection, it ensures high reliability even under harsh conditions.
Manufacturer: PEPPERL+FUCHS
Type: Inductive Sensor
Model: NJ40+U1+W
Part No.: 36686S
| Measuring Switching Distance (sn) | 40 mm |
| Working Voltage (UB) | 20...253V |
| Switching Frequency (f) | 0...20 Hz |
| Short-Time Current | 0...3000 mA (20 ms, 0.1 Hz) |
| Working Current (IL) | 8...500 mA |
| Residual Current | 0.5...1.95 mA, typ. 1.2 mA |
| Switching Element Function | N.O./N.C. |
| Protection Class | IP68 |
| Housing Material | PBT |
| Ambient Temperature | -25...70°C |
