Pointel MC1 CAM Programmer Module
888,88$
कैम प्रोग्रामर मॉड्यूल Pointel MC1 कैम प्रोग्रामर मॉड्यूल में 4-लाइन बहुभाषी डिस्प्ले, 8 प्रोग्रामेबल फॉर्मेट, और उन्नत स्वचालन प्रणालियों के लिए सटीक एनकोडर नियंत्रण शामिल है। 24 V DC पावर से चलता है, DIN रेल या पैनल माउंटिंग विकल्पों के साथ।
POINTEL MC1 CAM PROGRAMMER MODULE

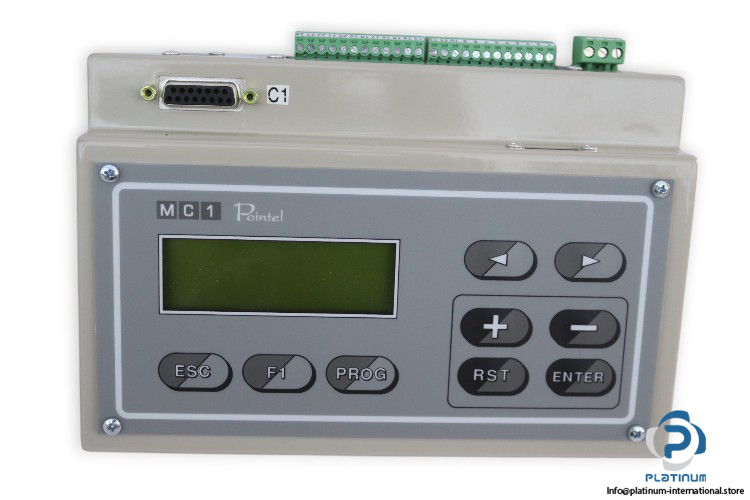

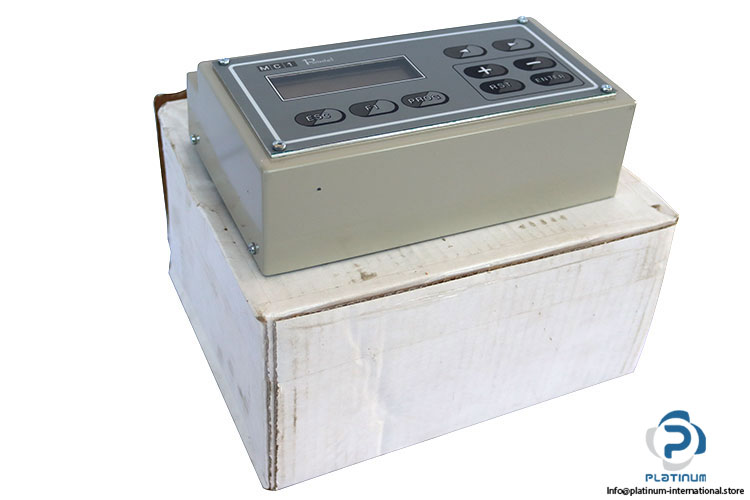

The Pointel MC1 CAM Programmer Module is a compact and efficient interface designed for precise machine programming. Built for easy panel or DIN rail installation, this module is ideal for industrial automation environments where accurate cam switching and format storage are critical.

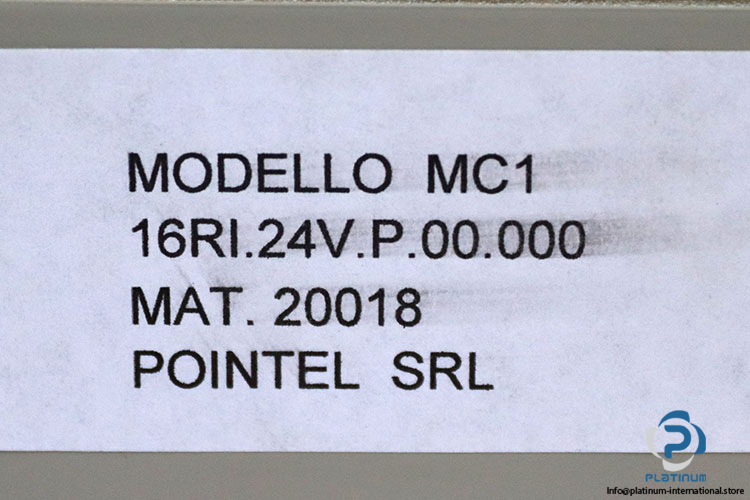

Manufacturer: Pointel
Type: CAM Programmer Module
Model: MC1
Part No.: 16RI.24V.P.00.000
Mat No.: 20018

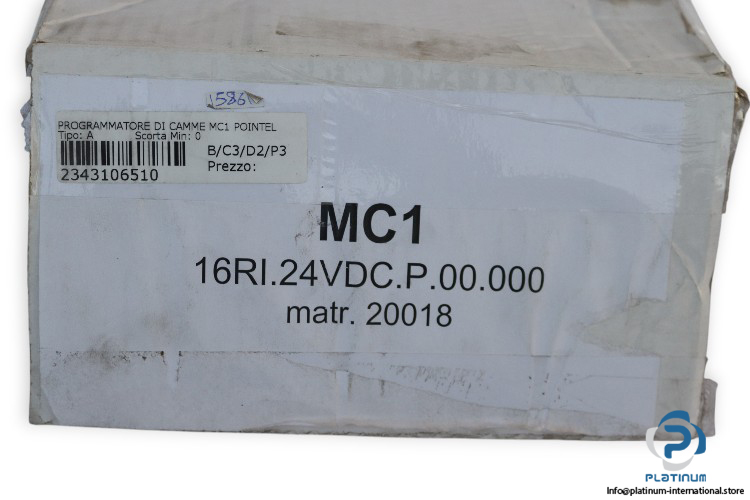

Ref No.: 2343106510 / B/C3/D2/P3 / TYPE A
Features
- Panel installation or bar DIN connection
- 4-line display, 20 characters each line
- 5 different languages available for programming and displaying
- Stores 8 programs (formats) in EEPROM, 16 outputs each
- Works with absolute encoder using GRAY code
- 99 ON/OFF sequences per output
- Independent automatic linear advance on each cam
- Encoder reset (zero machine reset) via keyboard
- Program selection via keyboard or PLC
- Clockwise or anticlockwise rotation selection via parameter
Technical Specifications
- Power Supply: 24 V DC
- Dimensions: 192 x 60 x 125 mm
Included Attachment

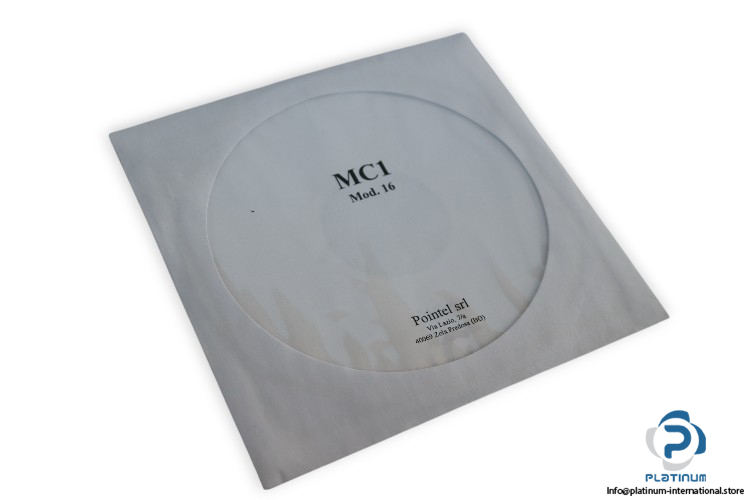

Attachment: POINTEL 16 PROGRAMMER CD
Type: Programmer CD
Part No.: 16
