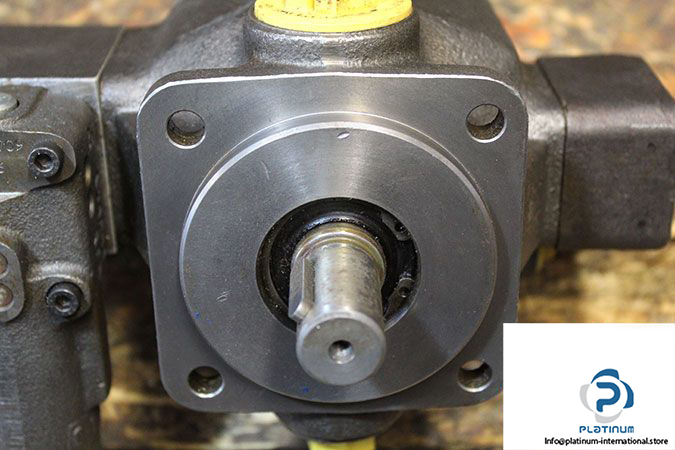

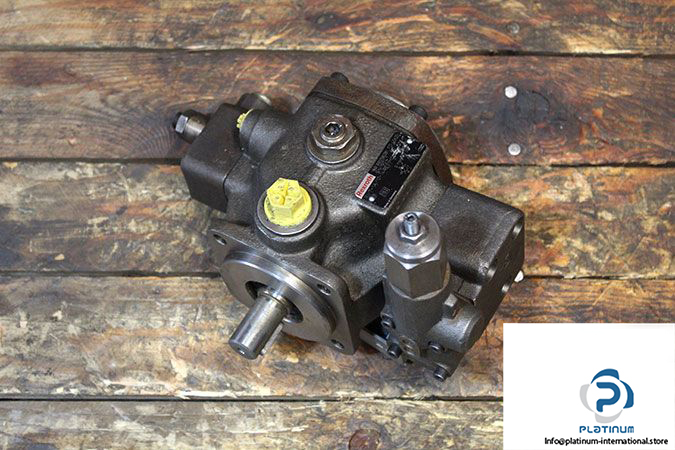

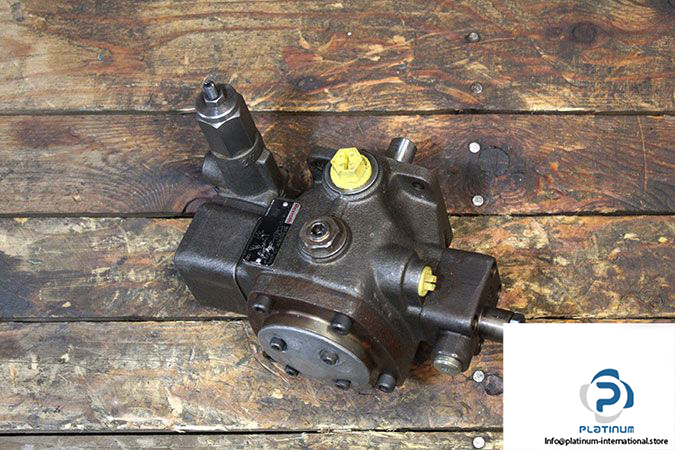

Rexroth R900580381 Variable Vane Pump
Manufacturer: Rexroth
Type: Variable vane pump

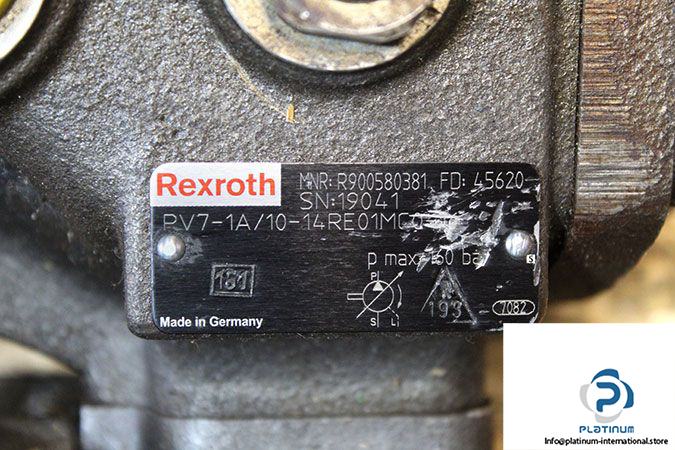

Model: PV7-1A/10-14RE01MC0-16
MNR: R900580381
Frame sizes: 10
size: 14
Displacement: 14 cm3
Direction of Rotation: Clockwise
Shaft Diameter: 20 mm
Mounting Flange: ISO 3019-2 (2 holes)
Operating pressure: 160 bar
Drive Speed: 900 …. 1800 rpm
Flow Rate at 1450 rpm: 21 l/m
Power at 100 bar, 1450 rpm: 6.3 KW
Torque at 100 bar: 90 N.m
Viscosity Range: 16 …. 36 mm2/s
Weight: 12.1 Kg
