Schmersal AZ 16-02ZVRK-M20 Safety Switch
इस्तेमाल किया हुआ
स्टॉक में उपलब्ध1 यूनिटभेजने के लिए तैयार
SAFETY SWITCH
The Schmersal AZ16-02ZVRK-M20 safety switch provides secure machine guarding with 2 NC contacts, IP67 protection, and durable design for reliable operation in harsh industrial environments.0054662411573811611573812AZ16-02ZVRK-M20BreakContactGuardingIndustrialIP67MachineNCPositiveSafetySchmersalSwitch
विशाल भंडार
वैश्विक शिपिंग
विशेषज्ञ सहायता
गुणवत्ता की गारंटी

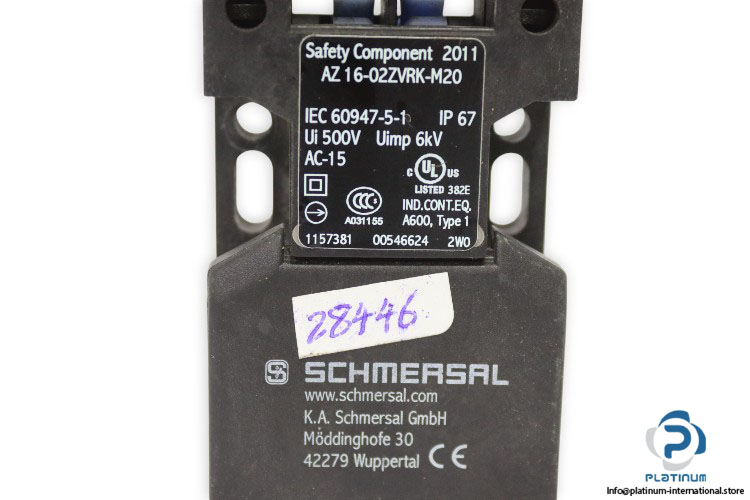

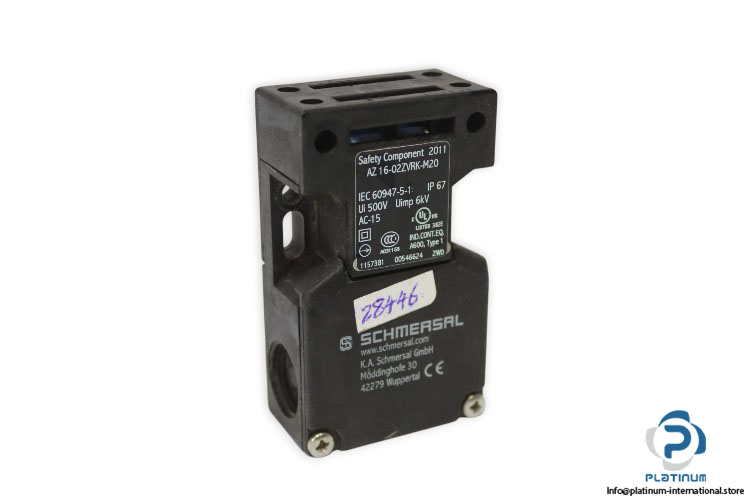

SCHMERSAL AZ16-02ZVRK-M20 SAFETY SWITCH
The Schmersal AZ16-02ZVRK-M20 is a robust safety switch designed for reliable machine protection and operator safety. Built with durable housing, high-rated insulation, and positive break contacts, it ensures dependable performance in demanding industrial environments.
Manufacturer: SCHMERSAL
Type: Safety Switch
Model: AZ16-02ZVRK-M20
Item Number: 161157381
Ref No.: 1157381 00546624
| Rated Insulation Voltage Ui | 500 V |
| Rated Impulse Withstand Voltage Uimp | 6 kV |
| Switching Element | 2 NC contact |
| Switching Principle | Slow action, positive break NC contact |
| Number of Actuating Directions | 3 |
| Number of Safety Contacts | 2 |
| Number of Cable Glands | 3 |
| Latching Force | 30 N |
| Positive Break Travel | 8 mm |
| Positive Break Force per NC Contact, Minimum | 10 N |
| Positive Break Force, Minimum | 20 N |
| Actuating Speed, Maximum | 2 m/s |
| Mounting | Screws |
| Type of Fixing Screws | 2x M6 |
| Cable Entries | 3x M20 x 1.5 |
| Dimensions | 52 mm x 90 mm x 30 mm |
| Degree of Protection | IP67 |
| Ambient Temperature | -30 ... +80 °C |
