Schneider LC1D18F7 Contactor
39,99$
कॉन्टैक्टर Schneider LC1D18F7AB एक 3-पोल कॉन्टैक्टर है जिसमें 110 V AC कॉइल और 18 A रेटेड करंट है। मोटर और पावर नियंत्रण के लिए डिज़ाइन किया गया, यह IP20 प्रोटेक्शन के साथ 690 V AC तक विश्वसनीय स्विचिंग प्रदान करता है।
Schneider LC1D18F7AB Contactor
The Schneider LC1D18F7AB is a robust and high-performance contactor from the LC1D series, designed for reliable motor control and power switching applications. With a rated current of 18 A and coil voltage of 110 V AC, it ensures efficient operation across a wide range of industrial and automation systems. Built with durable materials and precise engineering, it offers long service life and dependable performance.
Manufacturer: Schneider
Type: Contactor
Model: LC1D18F7AB
Part No.: 034945
Series: LC1D
| Rated Coil Voltage | 110 V AC |
| Rated Operational Voltage | 690 V AC / 300 V DC |
| Rated Operational Current (AC-3) | 18 A |
| Frequency | 50 / 60 Hz |
| Power (AC-3) 220 / 230 V AC | 4 kW |
| Power (AC-3) 380 / 400 V AC | 7.5 kW |
| Power (AC-3) 415 / 440 V AC | 9 kW |
| Power (AC-3) 500 / 660 / 690 V AC | 10 kW |
| Power Loss (AC-3) | 0.8 W |
| Rated Impulse Voltage (Uimp) | 6 kV |
| Main Poles | 3-Pole |
| No. of Poles | 3-Pole |
| Auxiliary Contact | 2-Pole (1 NO + 1 NC) |
| Switching Voltage (Min) | 17 V |
| Switching Current (Min) | 5 mA |
| Rated Breaking Capacity | 300 A |
| Protection Class | IP20 |
| Ambient Temperature | -40 / 60 °C |
| Dimensions | 77 × 45 × 86 mm |
अधिक से SCHNEIDER
संबंधित उत्पाद
PHOENIX CONTACT

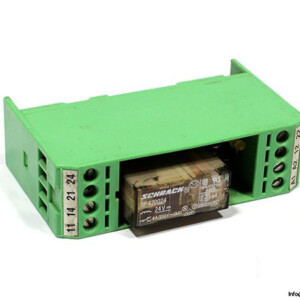

Phoenix Contact EMG 22-REL/KSR- 24/21-21 Relay Module
SKU: 994525
मात्रा: 3
MOELLER

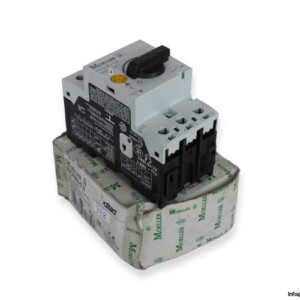

Moeller PKZM0-0,4 Motor-Protective Circuit-Breaker
