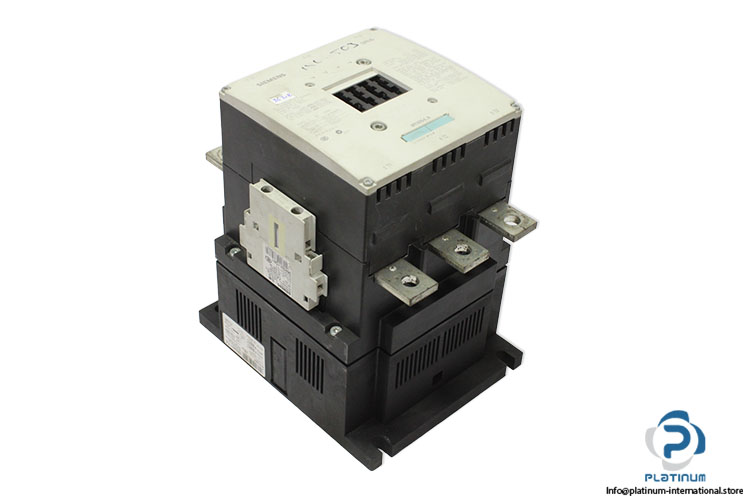

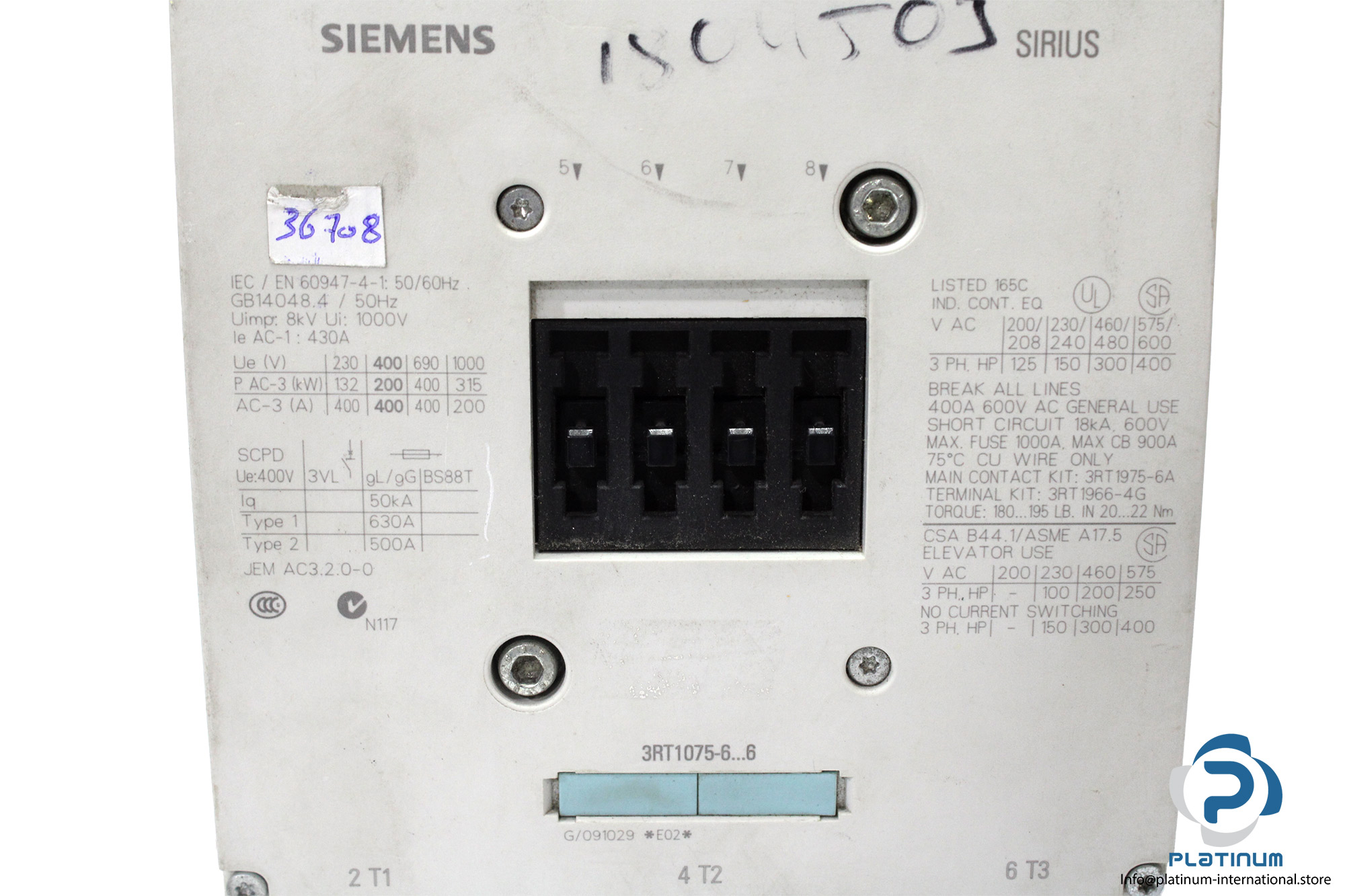

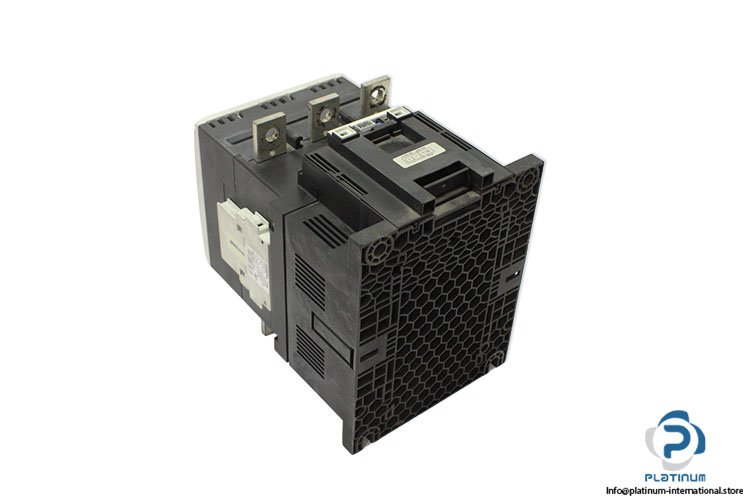

Siemens 3RT1075-6NP36 Power Contactor
नया
स्टॉक में उपलब्ध1 यूनिटभेजने के लिए तैयार
Power Contactor SIEMENS SIRIUS 3RT1075-6NP36 power contactor featuring a 3-pole main circuit, 200-277 VAC coil voltage, 200 kW operating power at 400 V, and auxiliary contacts for industrial motor control and automation systems.
विशाल भंडार
वैश्विक शिपिंग
विशेषज्ञ सहायता
गुणवत्ता की गारंटी

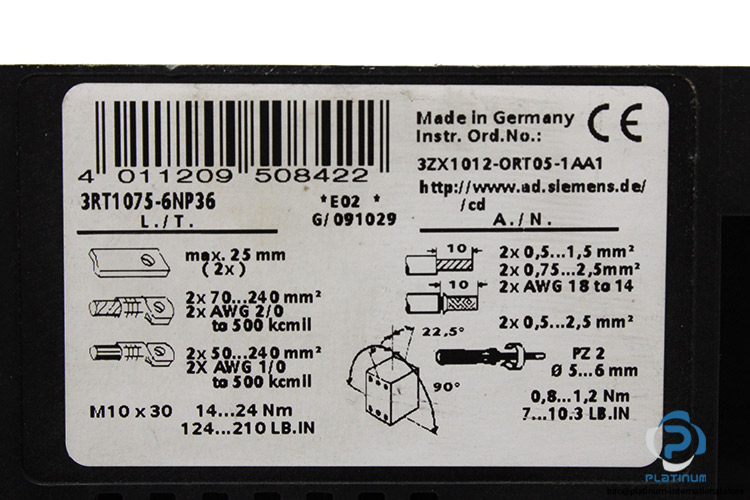

| MNR | 3RT1075-6NP36 |
| SN | 4011209 508422 |
| Product Brand Name | SIRIUS |
| Product Designation | Power Contactor |
| Product Type Designation | 3RT1 |
| Size Of Contactor | S12 |
| Power Loss [W] | For Rated Value Of The Current ? At AC In Hot Operating State 105 W ? At AC In Hot Operating State Per Pole 35 W ? Without Load Current Share Typical: 3.6 W |
| Insulation Voltage | Of Main Circuit With Degree Of Pollution 3 Rated Value 1 000 V/ Of Auxiliary Circuit With Degree Of Pollution 3 Rated Value 500 V |
| Surge Voltage Resistance | Of Main Circuit Rated Value 8 Kv ? Of Auxiliary Circuit Rated Value 6 Kv |
| Maximum Permissible Voltage For Protective Separation Between Coil And Main Contacts According To EN 60947-1 | 690 V |
| Installation Altitude At Height Above Sea Level Maximum | 2 000 M Ambient Temperature ? During Operation: -25 ... +60 °C |
| Number Of Poles For Main Current Circuit | 3 |
| Number Of NO Contacts For Main Contacts | 3 |
| Operating Voltage | At AC-3 Rated Value Maximum 1 000 V ? At AC-3e Rated Value Maximum 1 000 V |

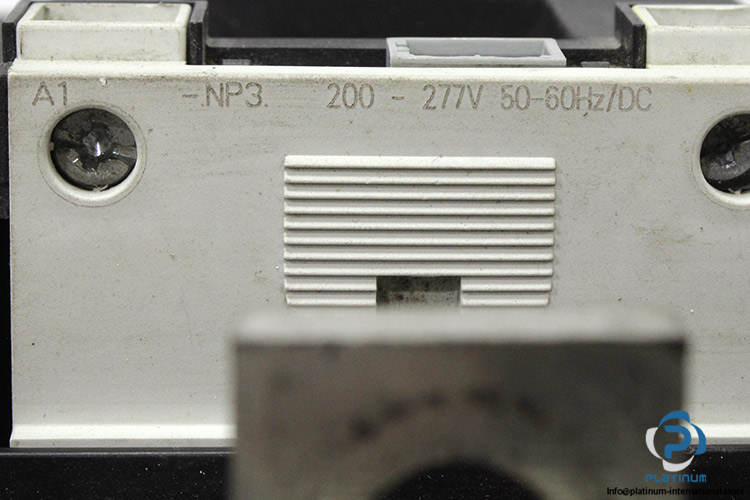

| Coil voltage | 200-277 VAC |
| Operating Power | At 400 V Rated Value 200 Kw |

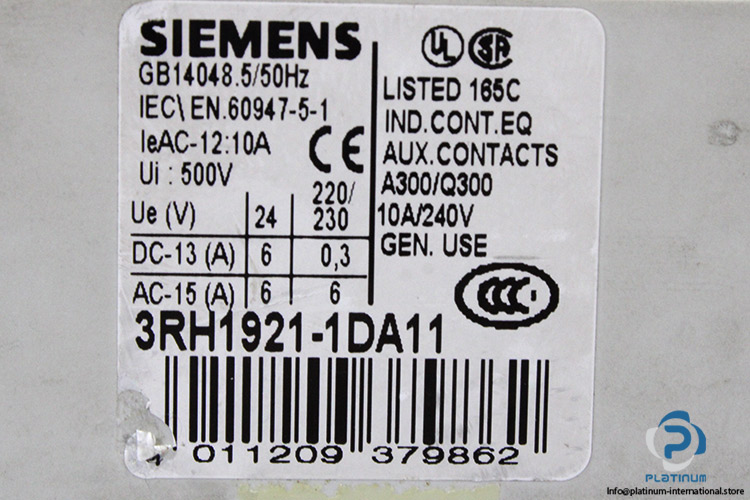

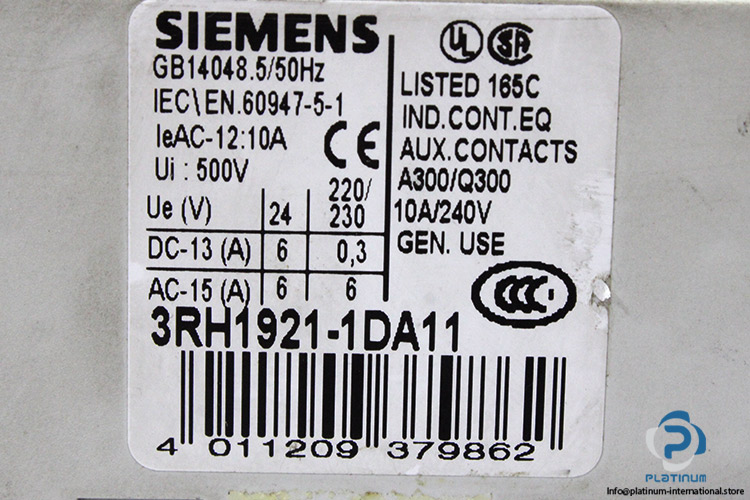

| Number Of NC Contacts For Auxiliary Contacts Instantaneous Contact | 2 Number Of NO Contacts For Auxiliary Contacts Instantaneous Contact: 2 |
| Height | 214 Mm |
| Width | 160 Mm |
| Depth | 225 Mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1099420 |
| Weight | 9,33 |
