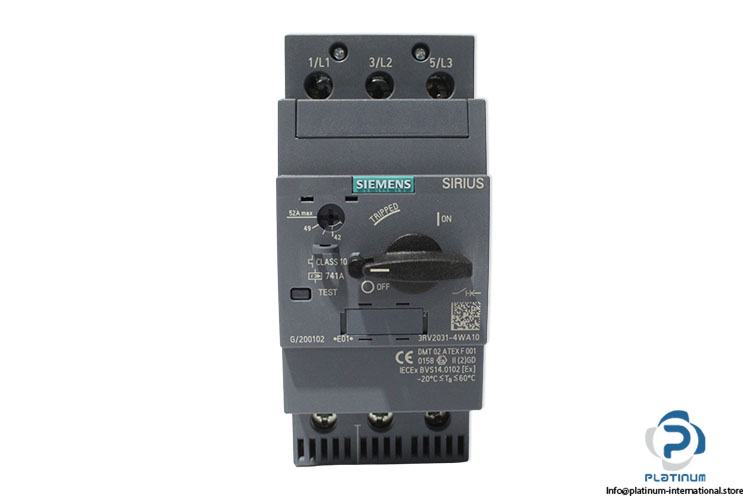

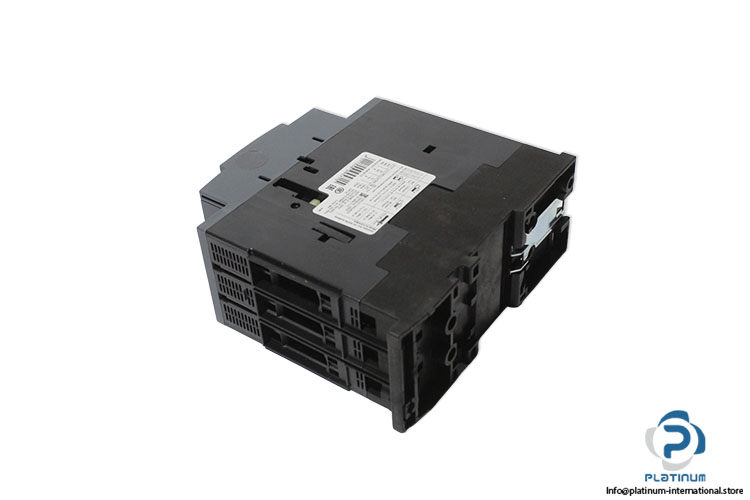

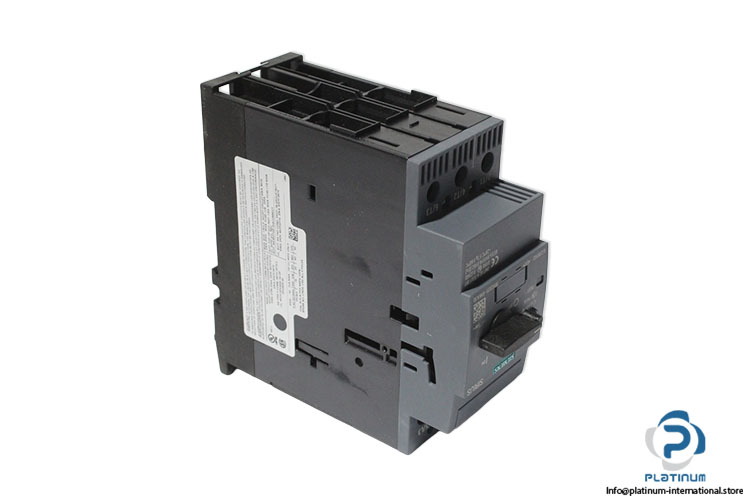

Siemens 3RV2031-4WA10 Circuit Breaker
नया
स्टॉक में उपलब्ध4 यूनिट्सभेजने के लिए तैयार
Circuit Breaker The Siemens Sirius 3RV2031-4WA10 is a three-pole motor protection circuit breaker featuring a 52 A operating current, 690 V operating voltage, thermal overload protection, magnetic short-circuit trip, and flexible screw or DIN rail mounting for industrial electrical and automation systems.
विशाल भंडार
वैश्विक शिपिंग
विशेषज्ञ सहायता
गुणवत्ता की गारंटी
| MNR | 3RV2031-4WA10 |
| Series | 3RV2 |
| Brand Name | Sirius |
| Size of the circuit-breaker | S2 |
| Power Loss [W] Total Typical | 17 W |
| Surge voltage resistance Rated value | 6 kV |
| Operating voltage | 690V |
| Insulation voltage | 690 V |
| Operating current | 52 A |
| Number of poles | 3 |
| Trip class | CLASS 10 |
| Design of the overload release | thermal |
| Design of the short-circuit trip | magnetic |
| Mounting type | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715 |
| Tightening torque | 3 ... 4.5 N·m |
| Ambient temperature | -20 ... +60 °C |
| Protection Degree | IP20, IP00 |
| Height | 140 mm |
| Width | 55 mm |
| Depth | 149 mm |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093354 |
| Weight | 1,16 |
