TR Electronic CE 65M Absolute Encoder
195,00$
ABSOLUTE ENCODER TR इलेक्ट्रॉनिक CE65M पूर्णांक एन्कोडर 4096 चरण/रिव (12-बिट) संकल्प के साथ PROFIBUS DP इंटरफेस, IP65 सुरक्षा प्रदान करता है और 6000 RPM तक काम करता है—सटीक, उच्च गति वाले अनुप्रयोगों के लिए आदर्श।

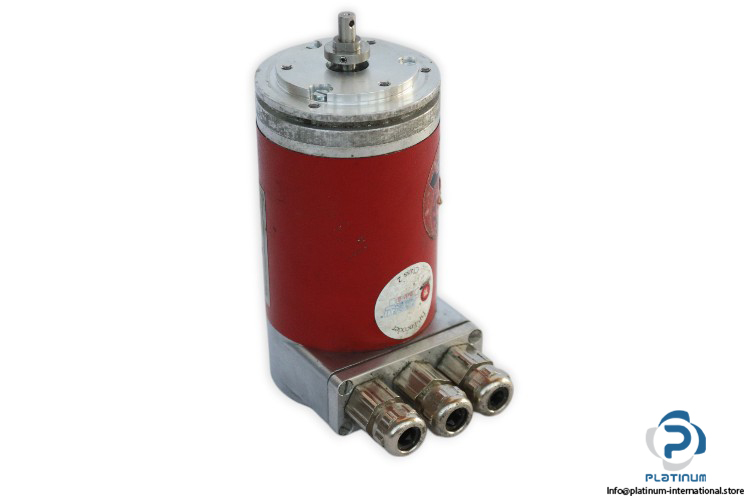

TR ELECTRONIC CE65M ABSOLUTE ENCODER
The TR ELECTRONIC CE65M Absolute Encoder is designed for high-precision industrial motion control applications. Featuring a rugged build and advanced communication interface, it ensures accurate positioning and reliable performance in demanding environments.
Manufacturer: TR ELECTRONIC
Type: Absolute Encoder

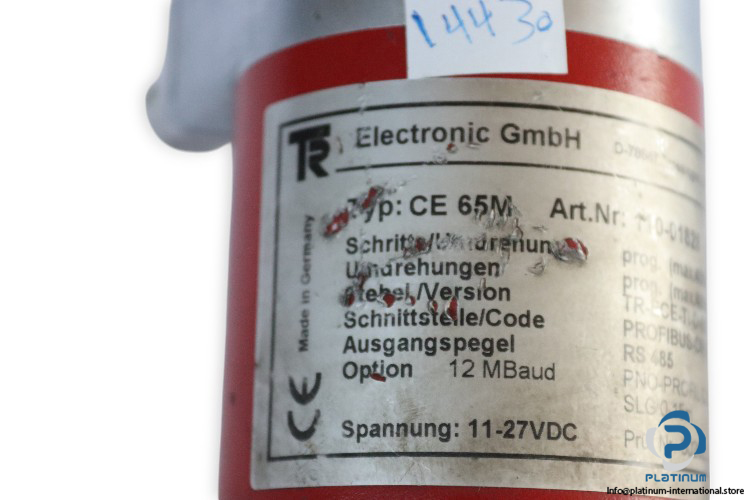

Model: CE65M

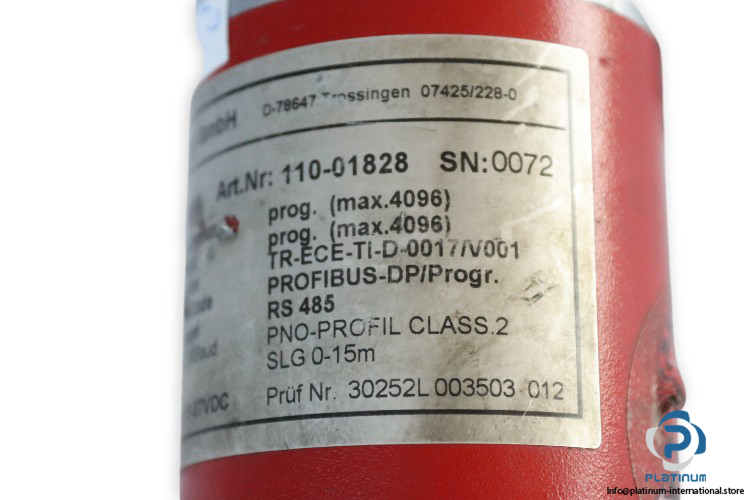

Art No.: 11001828
Serial No.: 0072
Reference No.: 30252L 003503 012
| Series | SRS 50 |
| Solid Shaft Diameter | 12 mm |
| Interface | RS 485 |
| Steps Per Revolution | 4096 Steps/Rev (12-Bit) |
| Maximum Operating Speed | 6000 RPM |
| Operating Voltage | 11 / 27 V DC |
| Communication Interface | PROFIBUS DP |
| Connection | 2xM16x1.5 + 1x8P.M12-ST |
| Flange Diameter | 50 mm |
| Protection Class | IP65 |
| Operating Temperature | -20 / 70 °C |
| Dimensions | 109 x 65 mm |
