Novotechnik IP-6501-A502 Angular Potentiometer
新着
ご依頼に応じて対応可能
300,00$
角度ポテンショメーター Novotechnik IP6501A502 は、密閉された6mmステンレス鋼シャフト、5 kohm抵抗、±0.075%の直線性、およびIP65保護を備えた高精度の角度ポテンショメーターで、産業条件下での正確な位置決め用に設計されています。
5AngularConductiveIndustrialIP65IP6501A502KOhmNovotechnikPlasticPositionPotentiometerSensorshaftstainlessSteel
大量在庫
グローバル配送
専門的なサポート
品質保証

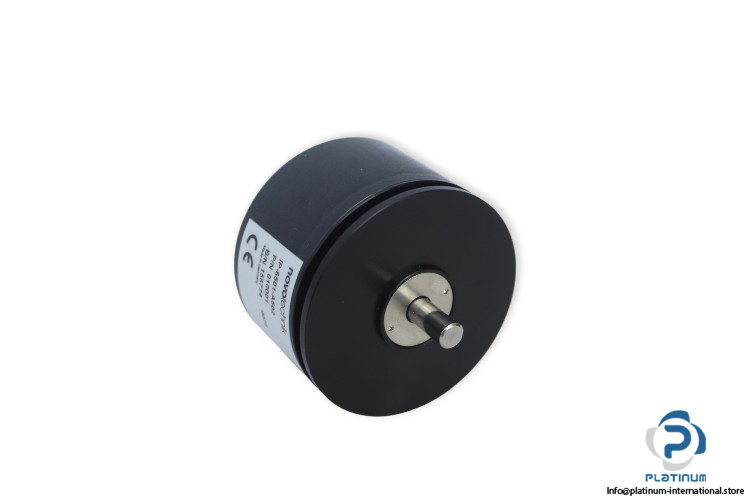

NOVOTECHNIK IP6501A502 ANGULAR POTENTIOMETER
The Novotechnik IP6501A502 is a high-precision angular potentiometer engineered for demanding industrial environments. With robust materials and excellent repeatability, it ensures accurate angular position measurement across a wide temperature range.

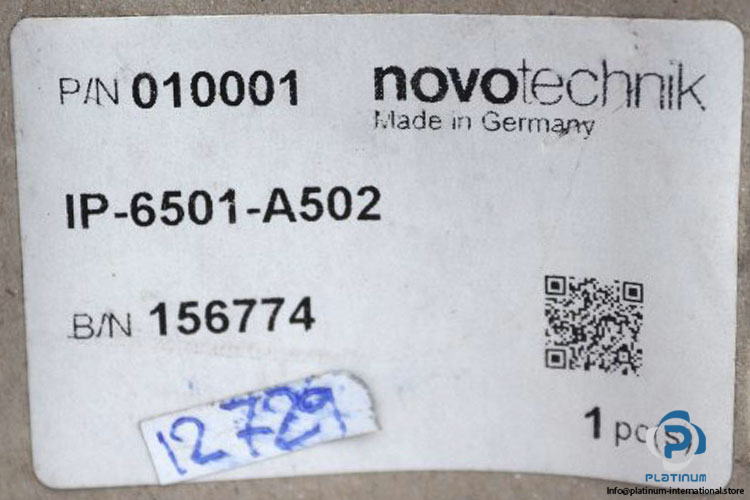

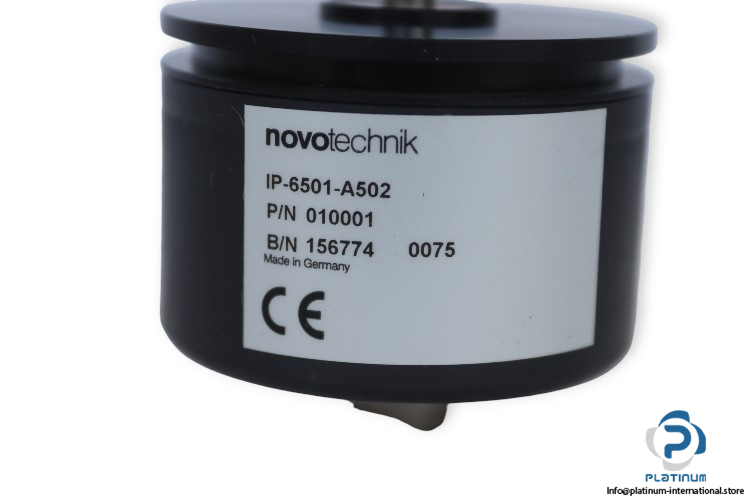

Manufacturer: Novotechnik
Type: Angular Potentiometer
Model: IP6501A502
Part No.: 010001
Ref No.: 156774 0075
| Nominal Resistance | 5 kohm |
| Max. Permissible Applied Voltage | 42 V |
| Shaft Diameter | 6 mm |
| Shaft Type | Sealed Shaft |
| Max. Wiper Current (Malfunction) | 10 mA |
| Case Material | Aluminum anodized, shaft passage sealed |
| Shaft Material | Stainless steel |
| Bearings | Stainless steel ball bearings |
| Resistance Element | Conductive plastic |
| Wiper Assembly | Precious metal multi-finger wiper |
| Repeatability | 0.002% (0.007°) |
| Independent Linearity | ±0.075% |

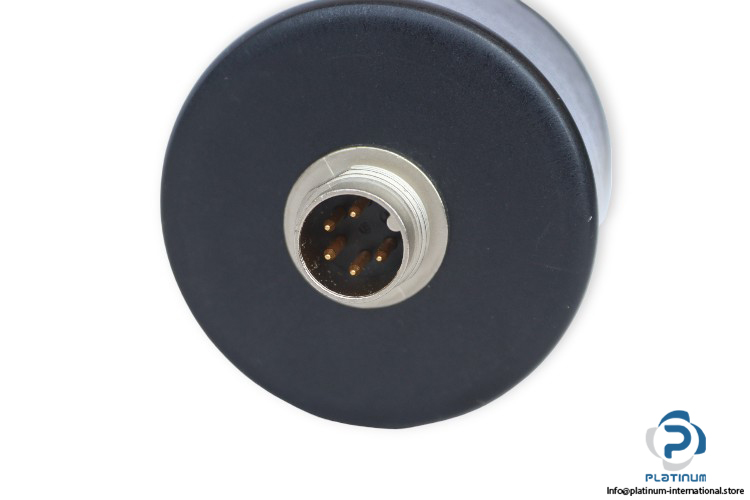

| Electrical Connections | 5-pin connector |
| Protection Class | IP 65 |
| Temperature Range | -40 / +100 °C |
