Novotechnik IP-6501-A502 Angular Potentiometer
300,00$
POTENTIOMÈTRE ANGULAIRE Novotechnik IP6501A502 est un potentiomètre angulaire haute précision avec un arbre en acier inoxydable étanche de 6 mm, une résistance de 5 kohm, une linéarité de ±0,075% et une protection IP65, conçu pour un positionnement précis en conditions industrielles.
NOVOTECHNIK IP6501A502 ANGULAR POTENTIOMETER
The Novotechnik IP6501A502 is a high-precision angular potentiometer engineered for demanding industrial environments. With robust materials and excellent repeatability, it ensures accurate angular position measurement across a wide temperature range.
Manufacturer: Novotechnik
Type: Angular Potentiometer
Model: IP6501A502
Part No.: 010001
Ref No.: 156774 0075
| Nominal Resistance | 5 kohm |
| Max. Permissible Applied Voltage | 42 V |
| Shaft Diameter | 6 mm |
| Shaft Type | Sealed Shaft |
| Max. Wiper Current (Malfunction) | 10 mA |
| Case Material | Aluminum anodized, shaft passage sealed |
| Shaft Material | Stainless steel |
| Bearings | Stainless steel ball bearings |
| Resistance Element | Conductive plastic |
| Wiper Assembly | Precious metal multi-finger wiper |
| Repeatability | 0.002% (0.007°) |
| Independent Linearity | ±0.075% |
| Electrical Connections | 5-pin connector |
| Protection Class | IP 65 |
| Temperature Range | -40 / +100 °C |
You May Also Need
Plus de NOVOTECHNIK
NOVOTECHNIK

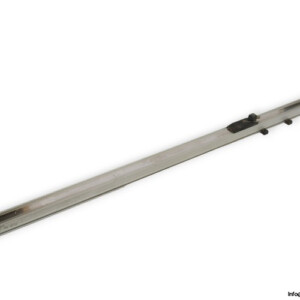

Novotechnik TR-0025 Transducer Potentiometric
