Afag LM20/30/06 Linear Module
중고
재고 있음1 단위즉시 배송 가능
Linear Module
AFAG LM20/30/06 pneumatic linear module with 20 mm cylinder diameter, 30 mm hub, controlled damping, and stable force output for industrial automation applications.
방대한 재고
글로벌 배송
전문 지원
품질 보장

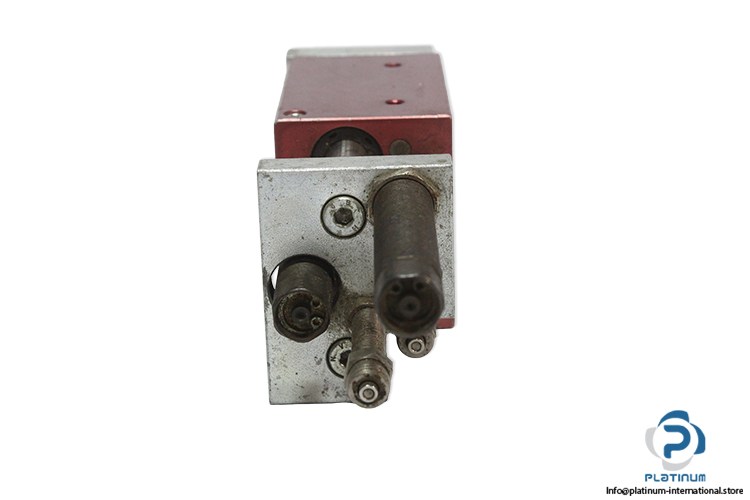

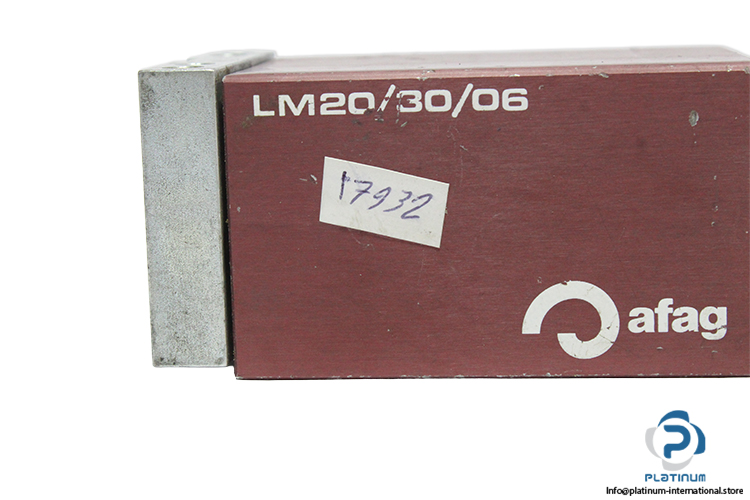

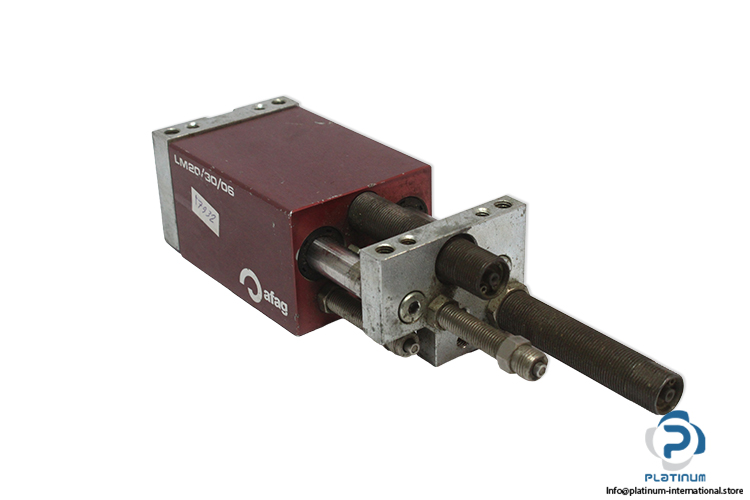

AFAG LM20/30/06 Linear Module
The AFAG LM20/30/06 is a compact pneumatic linear module designed for precise linear motion in industrial automation applications. It offers stable guidance, controlled damping, and reliable force output within a robust and space-saving design.
Manufacturer: AFAG
Type: Linear Module
Model: LM20/30/06
Series: LM20
Maximum Static Moment:
Maximum Dynamic Moment:
| Cylinder Diameter | 20 mm |
| Hub | 30 mm |
| Mounting Grid | 48 x 48 mm |
| Mounting Thread | M6 |
| Operating Pressure | 6 ± 2 bar |
| Air Connection (P) | M5 |
| Port Size | 5 mm |
| Piston Force (Retraction) | 140 N |
| Piston Force (Extension) | 172 N |
| Operating Temperature | 0 “ 50 °C |
| Storage Temperature | 0 “ 50 °C |
| Number of Intermediate Stops | 1 |
| Damping Travel | 15 mm |
| Mx | 11 Nm |
| My | 11 Nm |
| Mz | 11 Nm |
| Mx | 3 Nm |
| My | 5 Nm |
| Mz | 80 mm |
