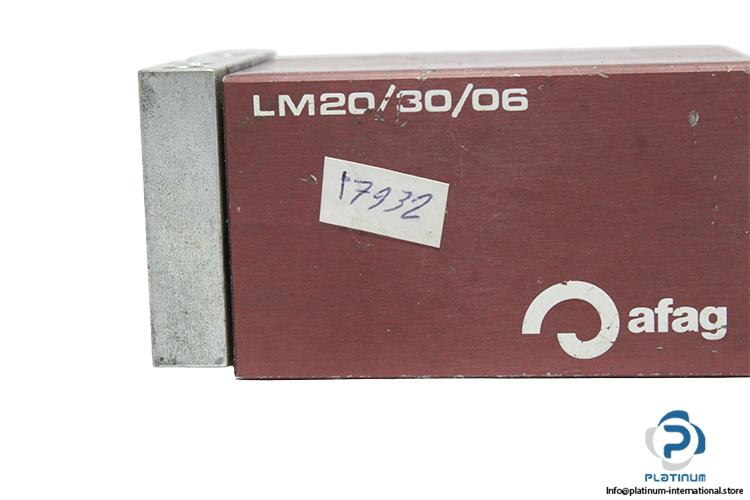

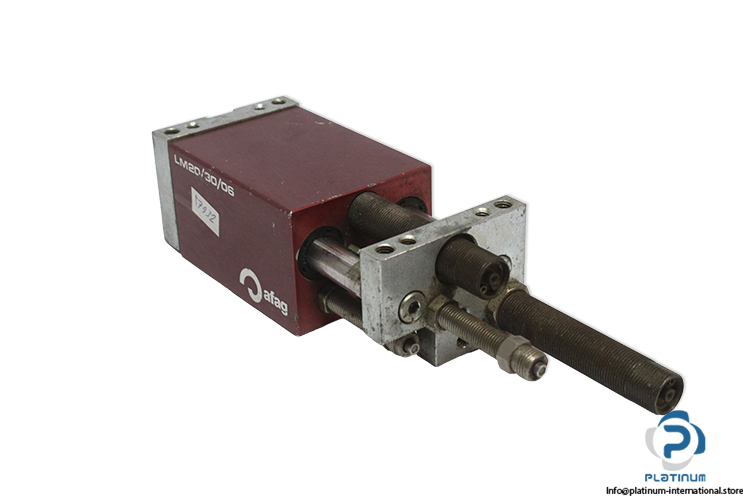

Afag LM20/30/06 Linear Module

In stock1 unitReady to ship

Linear Module

AFAG LM20/30/06 pneumatic linear module with 20 mm cylinder diameter, 30 mm hub, controlled damping, and stable force output for industrial automation applications.

Manufacturer
AFAG
SKU
1095332
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

AFAG LM20/30/06 Linear Module

The AFAG LM20/30/06 is a compact pneumatic linear module designed for precise linear motion in industrial automation applications. It offers stable guidance, controlled damping, and reliable force output within a robust and space-saving design.

Manufacturer: AFAG

Type: Linear Module

Model: LM20/30/06

Series: LM20

Maximum Static Moment:

Maximum Dynamic Moment:

Cylinder Diameter20 mm
Hub30 mm
Mounting Grid48 x 48 mm
Mounting ThreadM6
Operating Pressure6 ± 2 bar
Air Connection (P)M5
Port Size5 mm
Piston Force (Retraction)140 N
Piston Force (Extension)172 N
Operating Temperature0 “ 50 °C
Storage Temperature0 “ 50 °C
Number of Intermediate Stops1
Damping Travel15 mm
Mx11 Nm
My11 Nm
Mz11 Nm
Mx3 Nm
My5 Nm
Mz80 mm
