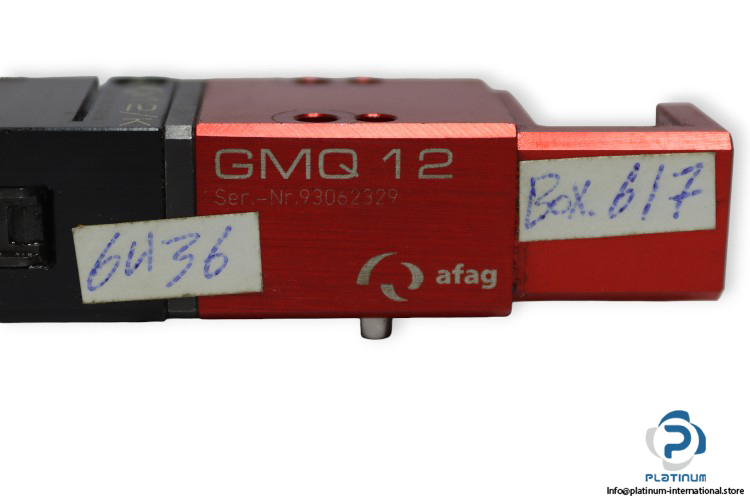

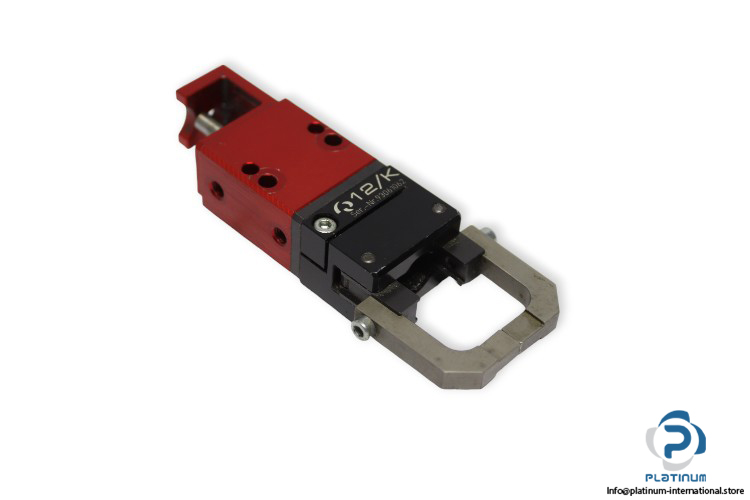

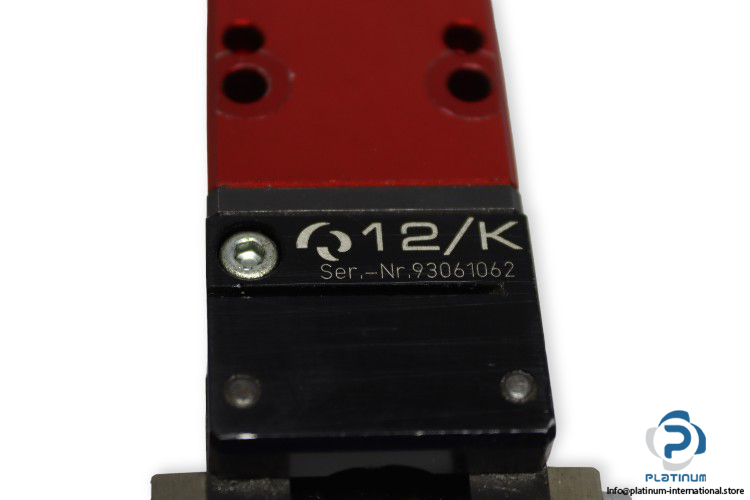

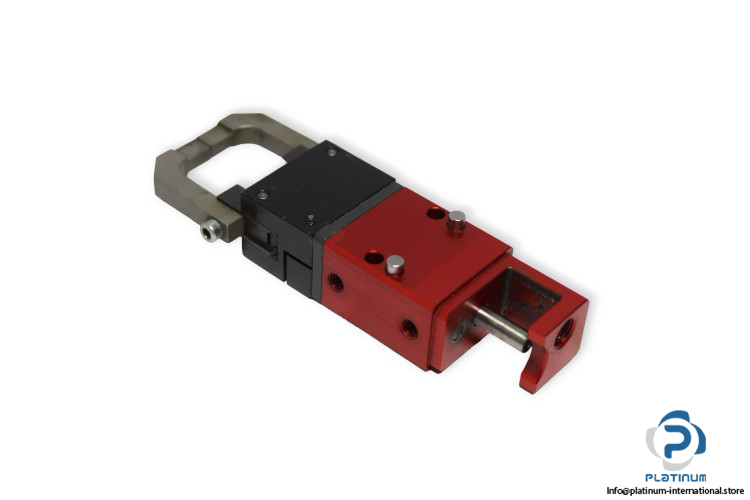

Afag GMQ 12/K Gripper Module
Manufacturer: AFAG
Type: Gripper Module
Model: GMQ12/K
Order No.: 11010496
Fluid: Compressed Air
Opening Angle: 176°
Piston Diameter: 12 mm
Attachment Grid: 22 mm
Working Pressure: 6 +/- 2 bar
Pneumatic Connection: M5
Max. admissible weight per gripper finger: 40 g
Air Consumption Per Cycle: 0.005 NL
Gripping Time: 0.1 s
Gripping Force: 14 N
Ambient Temperature Range: 0… 50°C
