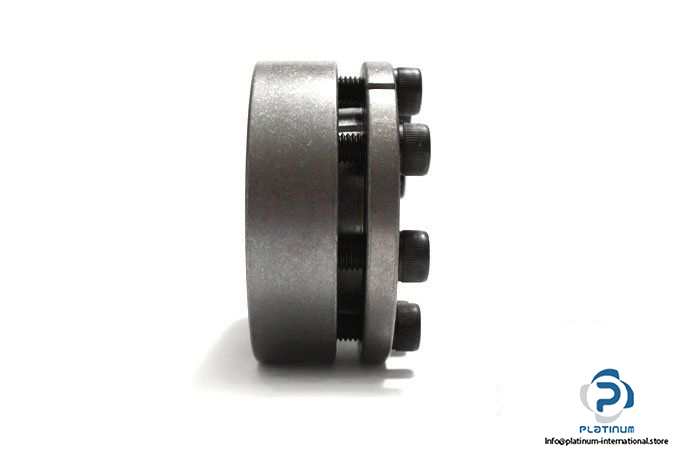

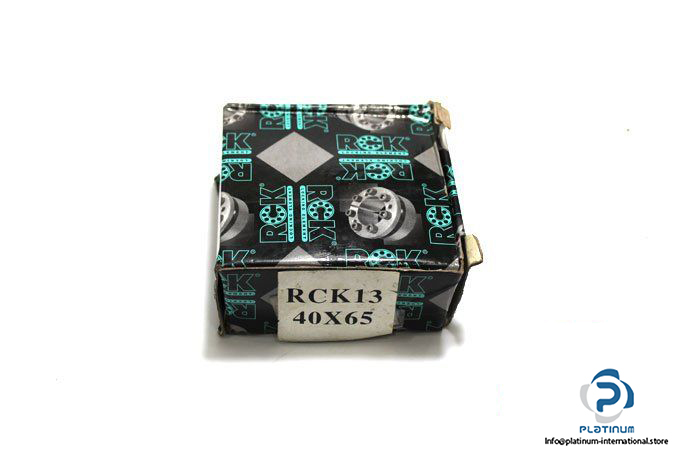

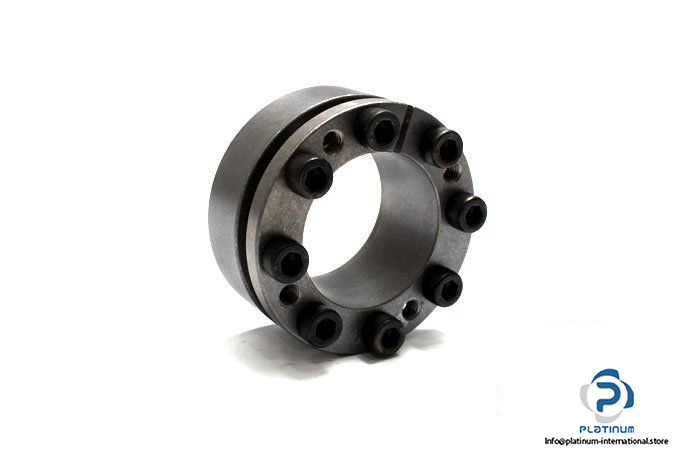

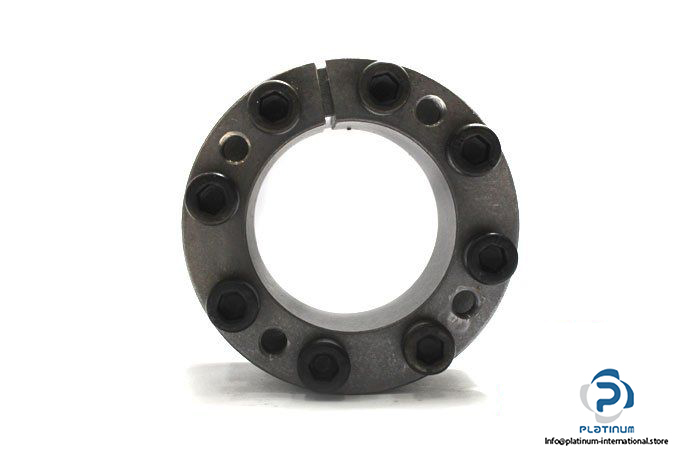

Chiaravalli RCK 40X65 RCK13 Locking Element
CHIARAVALLI 40X65 RCK13 Locking Element / Clamping Element
The CHIARAVALLI 40X65 RCK13 Locking Element / Clamping Element is a precision-engineered component designed for secure shaft-hub connections. It provides strong, uniform clamping pressure, ensuring high torque transmission and reliability in various industrial applications.
- Manufacturer: CHIARAVALLI
- Type: Locking Element / Clamping Element
- Model: 40X65 RCK13
- Part No.: 06130040

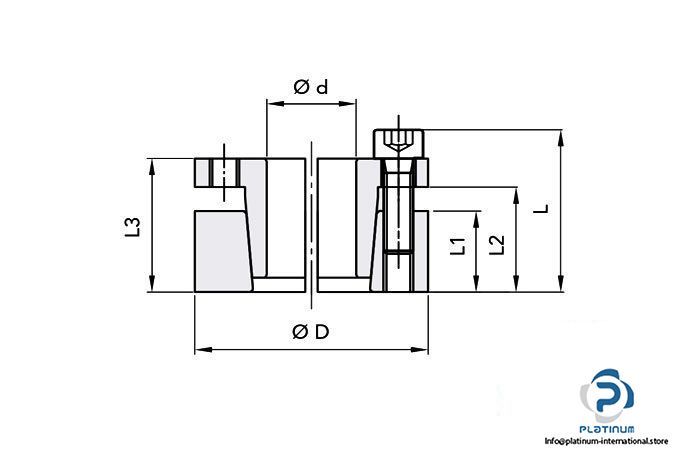

Technical Specifications
- Inner Diameter (d): 40 mm
- Outer Diameter (D): 65 mm
- Overall Length (L): 34 mm
- Overall Length Without Screws (L1): 17 mm
- Width of Ring (L3): 28 mm
- Max. Torque: 1200 Nm
- Clamping Pressure on Shaft: 235 N/mm²
- Clamping Pressure on Hub: 145 N/mm²
