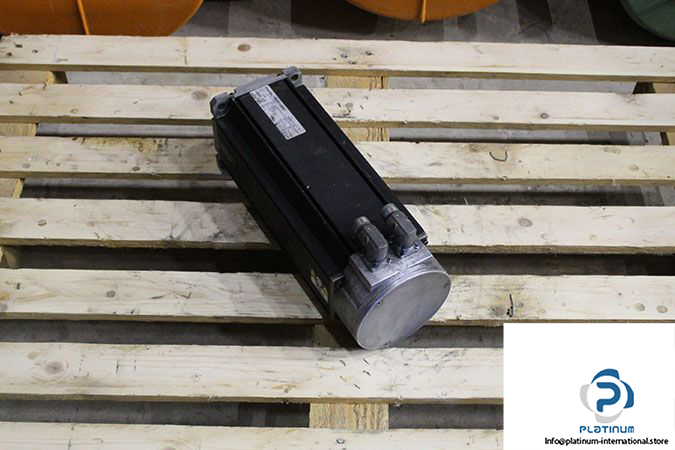

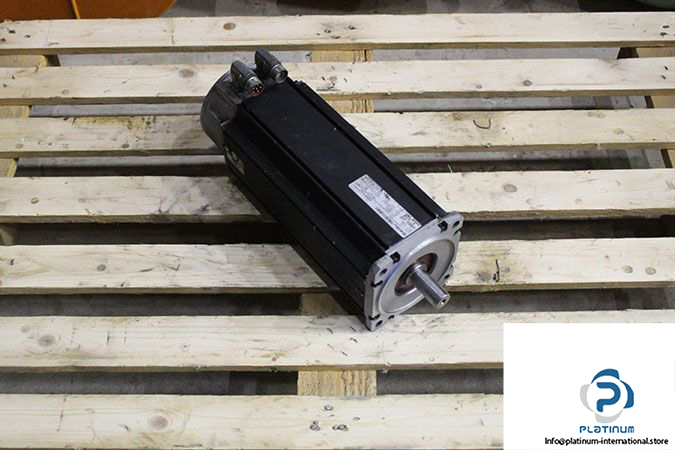

Control Techniques 142U2E305BAAEA165240 AC Servomotor
중고
재고 있음1 단위즉시 배송 가능
2 333,33$
방대한 재고
글로벌 배송
전문 지원
품질 보장

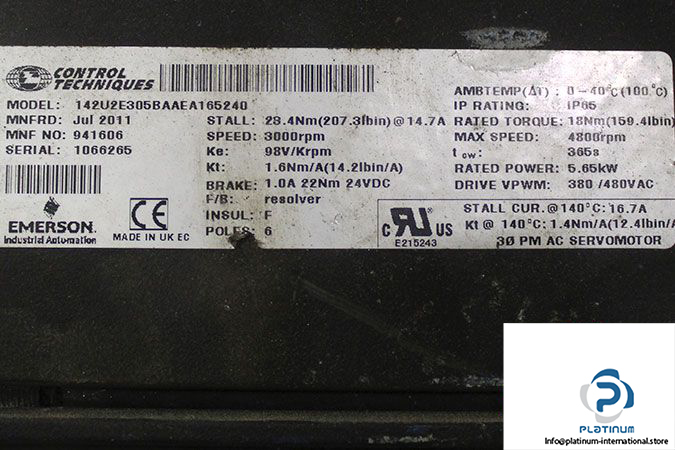

Manufacturer: Control Techniques
Type: AC Servo Motors
Model: 142 U2E305BAAEA165240
MNF No.: 941606
Serial: 1066265
Frame Size: 142
Stall Current [A]: 14.7
Rated Power [kW]: 5.65
Still Torque [Nm]: 28.4
Rated Torque [Nm]: 18
Rated Speed [rpm]: 3000
Max. Speed [rpm]: 4800
Constant Voltage [Vrms/krpm]: 98
Constant Torque [Nm/Arms]: 1.6
Number of Poles: 6
Brake Voltage [VDC]: 24
Brake Current [A]: 1
Brake Torque [Nm]: 22
Ambient Temperature [°C]: 0-40
Protection Class [IP]: 65
Insulation Class: F
Weight [kg]: 22.0
