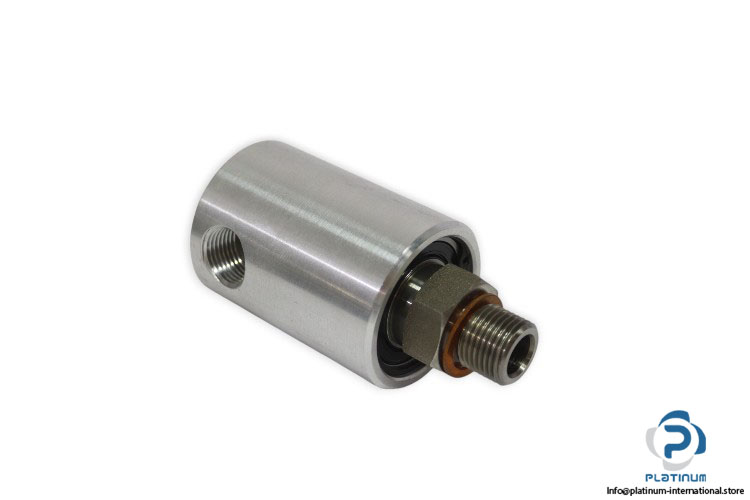

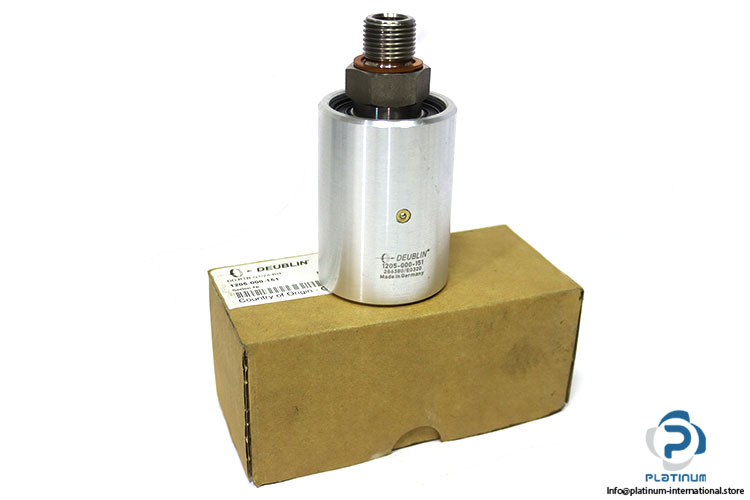

Deublin 1205-000-151 Rotary Joint
The Deublin 1205-000-151 is a high-performance rotary joint designed with a balanced mechanical seal and self-supported rotating union structure. Engineered for demanding applications, it ensures reliable transfer of vacuum, hydraulic oil, and air while maintaining long service life with minimal maintenance. Its aluminum body with hardened steel and stainless-steel internals provides durability under harsh industrial conditions.
Manufacturer: Deublin
Type: Rotary Joint / Self-Supported Rotating Union / Balanced Mechanical Seal
Part No.: 1205-000-151

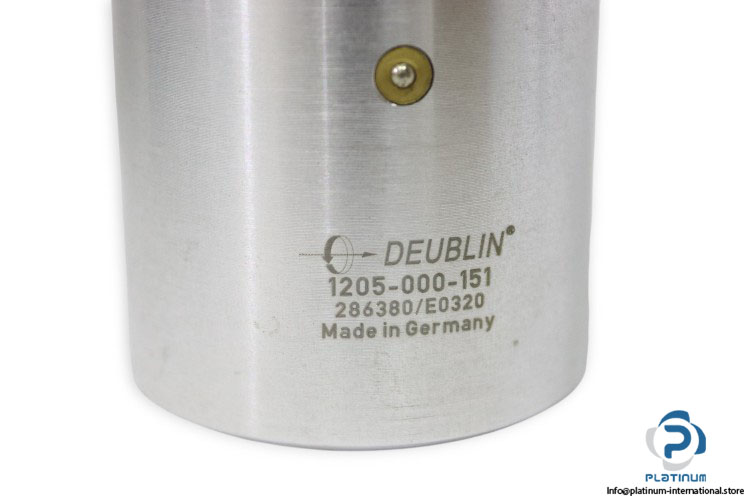

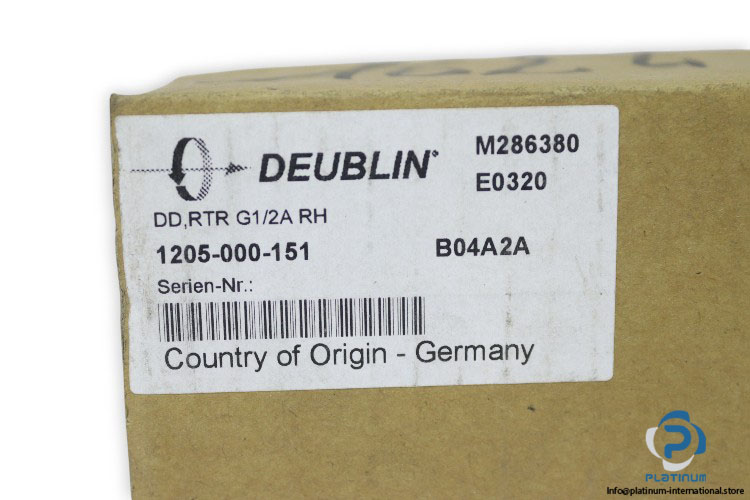

Marking: DD, RTR G1/2A RH
Ref. Code: M286380/E0320
Serial No.: B04A2A
| Media | Vacuum, Hydraulic Oil, Air |
| Rotor Connection | G 1/2 |
| Housing Connection | G 1/2 |
| Air Max. Flow | 4247 l/min |
| Air Max. Pressure | 10 bar |
| Air Max. Temperature | 121 °C |
| Hydraulic Oil Max. Flow | 26.9 l/min |
| Hydraulic Oil Max. Pressure | 51.7 bar |
| Hydraulic Oil Max. Temperature | 121 °C |
| Vacuum Max. Pressure | -0.95 bar |
| Vacuum Max. Temperature | 121 °C |
| Housing Material | Aluminum body with hardened steel or stainless internal components |
