Deublin 1205-000-151 Rotary Union

Name: DEUBLIN 1205-000-151 ROTARY UNION
SKU: 1082229
Price: 122.22 USD
Availability: LimitedAvailability

deublin-1205-000-151-rotary-union-(new)-(carton)

deublin-1205-000-151-rotary-union-(new)-(carton)-1

deublin-1205-000-151-rotary-union-(new)-(carton)-2

deublin-1205-000-151-rotary-union-(new)-(carton)-3

Novo

Disponível sob consulta

122,22$

Rotary Joint

The Deublin 1205-000-151 Rotary Joint with balanced mechanical seal provides reliable transfer of vacuum, hydraulic oil, and air, featuring G 1/2 connections and robust aluminum housing with steel and stainless-steel components.

Fabricante

DEUBLIN

SKU

1082229

Categoria

Other Mechanical Equipment

Condição

Novo

1/2 1205-000-151 Air Automation Balanced Components connection Deublin G Hydraulic Industrial Joint Mechanical oil Rotary Rotating Seal Seals Self-Supported Union vacuum

Grande Estoque

Envio Global

Suporte Especializado

Qualidade Garantida

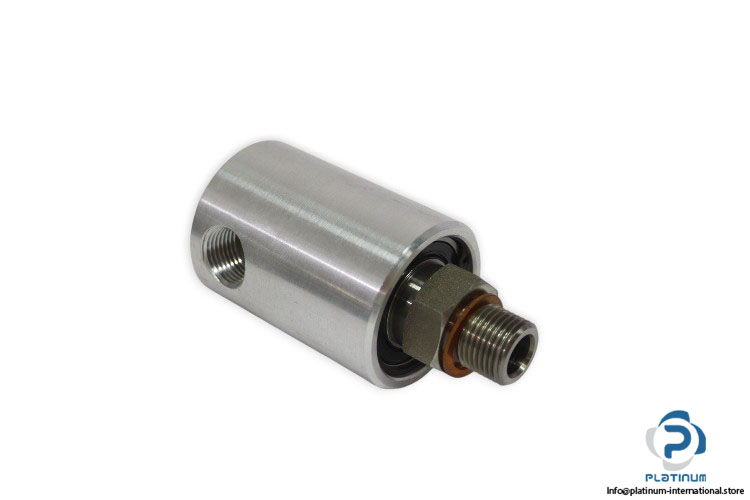

Deublin 1205-000-151 Rotary Joint

The Deublin 1205-000-151 is a high-performance rotary joint designed with a balanced mechanical seal and self-supported rotating union structure. Engineered for demanding applications, it ensures reliable transfer of vacuum, hydraulic oil, and air while maintaining long service life with minimal maintenance. Its aluminum body with hardened steel and stainless-steel internals provides durability under harsh industrial conditions.

Manufacturer: Deublin

Type: Rotary Joint / Self-Supported Rotating Union / Balanced Mechanical Seal

Part No.: 1205-000-151

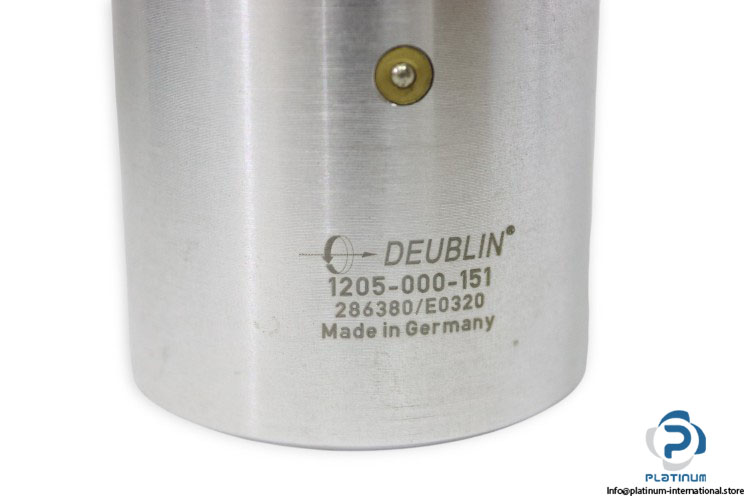

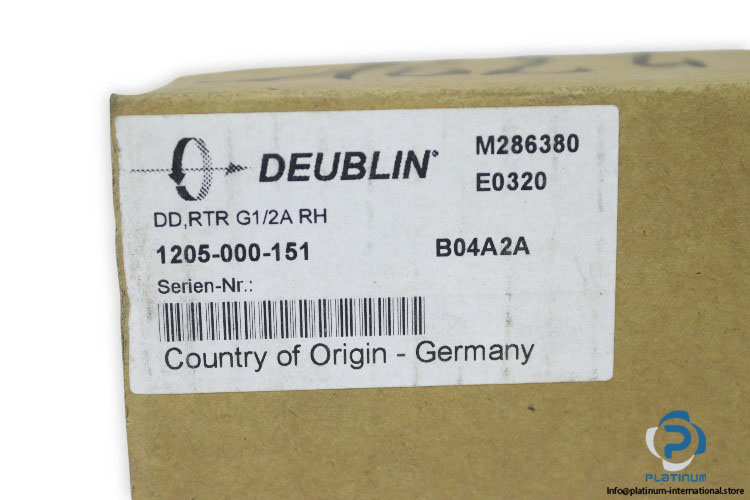

Marking: DD, RTR G1/2A RH

Ref. Code: M286380/E0320

Serial No.: B04A2A

Media	Vacuum, Hydraulic Oil, Air
Rotor Connection	G 1/2
Housing Connection	G 1/2
Air Max. Flow	4247 l/min
Air Max. Pressure	10 bar
Air Max. Temperature	121 °C
Hydraulic Oil Max. Flow	26.9 l/min
Hydraulic Oil Max. Pressure	51.7 bar
Hydraulic Oil Max. Temperature	121 °C
Vacuum Max. Pressure	-0.95 bar
Vacuum Max. Temperature	121 °C
Housing Material	Aluminum body with hardened steel or stainless internal components
