Elap RE420C10245R10LD5X13 Incremental Encoder
중고
재고 있음1 단위즉시 배송 가능
인크리멘탈 로터리 인코더 ELAP RE420C10245R10LD5X13, 고해상도 1024 ppr 인코더, 10mm 중공축, TTL 신호 출력 및 IP65 보호. 정밀 산업 자동화에 적합.
방대한 재고
글로벌 배송
전문 지원
품질 보장

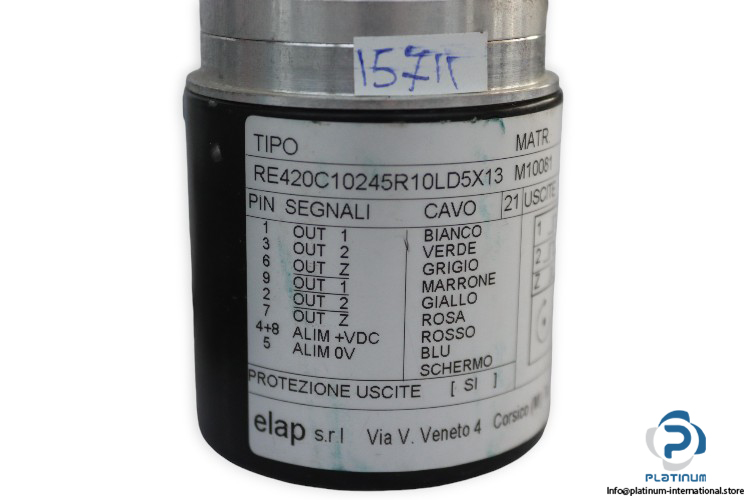

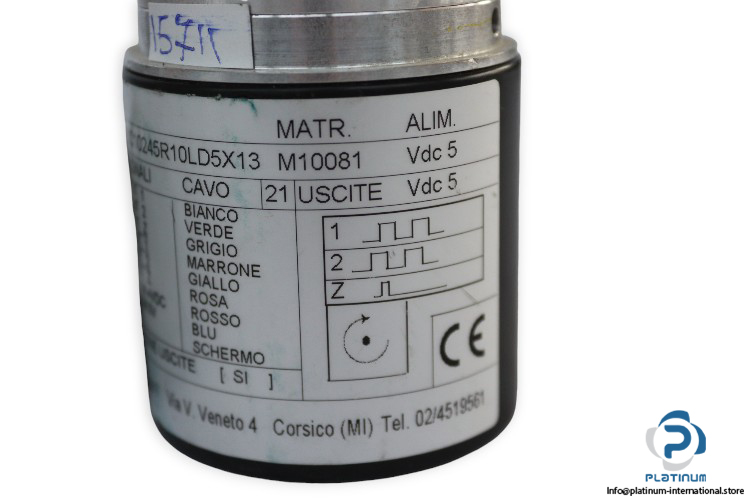

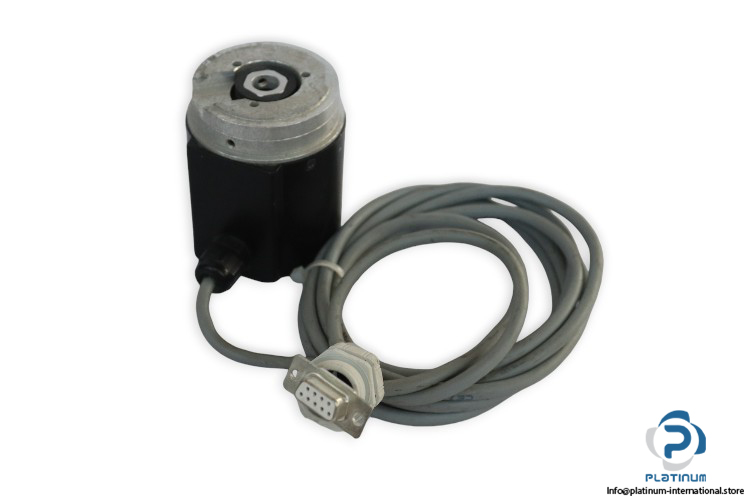

ELAP RE420C10245R10LD5X13 INCREMENTAL ROTARY ENCODER
The ELAP RE420C10245R10LD5X13 is a high-precision incremental rotary encoder designed to deliver accurate and reliable position feedback in industrial automation systems. Built with a durable aluminum housing and IP65-rated enclosure, it ensures dependable performance in demanding environments.
Manufacturer: ELAP
Type: Incremental Rotary Encoder
Model: RE420C10245R10LD5X13
Part No.: M10081
| Input Voltage | 5 V DC |
| Principle of Operation | Incremental |
| Shaft Type | Hollow Shaft |
| Output Signal Level | TTL |
| Resolution | 1024 ppr |
| Shaft Diameter | 10 mm |
| Shaft Length | 24.5 mm |
| Enclosure Rating | IP65 |
| Max Rotation Speed | 6000 rpm |
| Output Type | Cable End MS Connector (9 Pins) |
| Material | Aluminum |
| Operating Temperature | -10 / +70°C |
