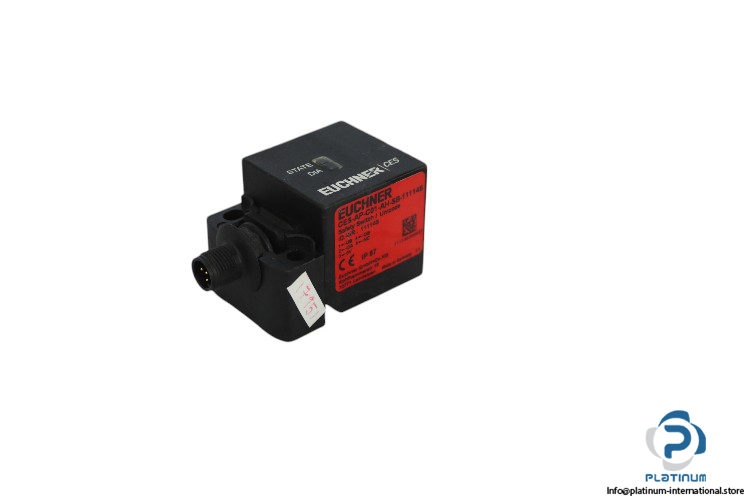

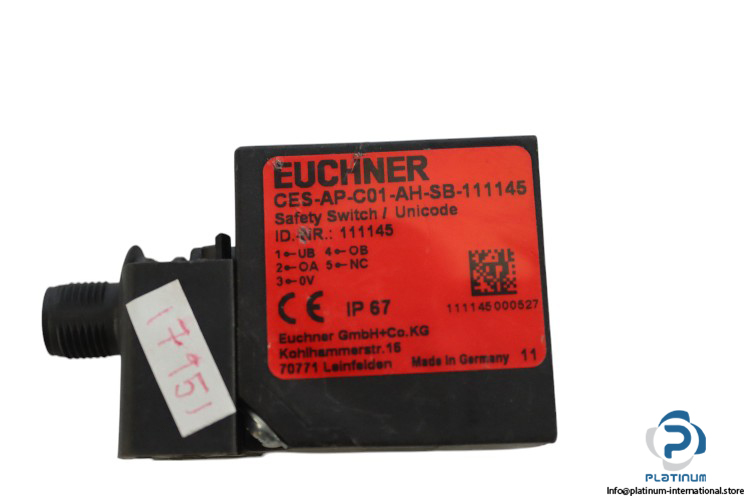

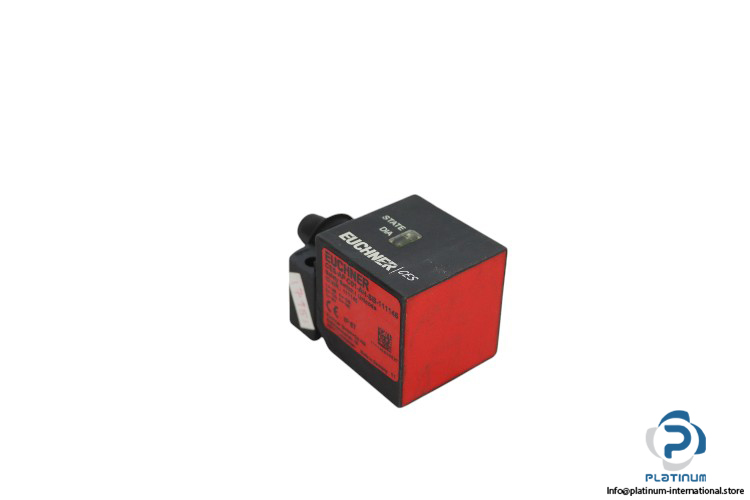

Euchner CES-AP-C01-AH-SB Safety Switch
중고
재고 있음9 단위즉시 배송 가능
Euchner Safety Switch/Unicode CESAPC01AHSB with 24 V DC operating voltage, IP67 protection, and semiconductor outputs. Reliable and precise for industrial applications.
방대한 재고
글로벌 배송
전문 지원
품질 보장
Euchner Safety Switch/Unicode CESAPC01AHSB
Euchner Safety Switch/Unicode CESAPC01AHSB is designed to provide reliable safety solutions in industrial environments. This product ensures safety and precision with high-quality components and easy-to-use features.
- Manufacturer: Euchner
- Type: Safety Switch/Unicode
- Model: CESAPC01AHSB
- ID. No.: 111145
Technical Data:
- Operating Voltage: 24 V DC
- Rated Insulation Voltage Ui: 75 V
- Output Voltage:
- LOW U(OA, OB): 0 to 1 V DC
- HIGH U(OA, OB): UB – 1.5 to UB V DC
- Rated Impulse Withstand Voltage Uimp: 1.5 kV
- Turn-On Time Safety Outputs: max. 400 ms
- Rated Conditional Short-Circuit Current: max. 100 A
- Connection Type: M12 Plug Connector, 5-pin
- Output Type: Semiconductor Outputs
- Tightening Torque Fixing Screws: max. 1 Nm
- Switching Frequency: max. 1 Hz
- Mounting Distance: min. 40 mm
- Degree of Protection: IP67
- Ambient Temperature: -20 to +55 degrees Celsius
