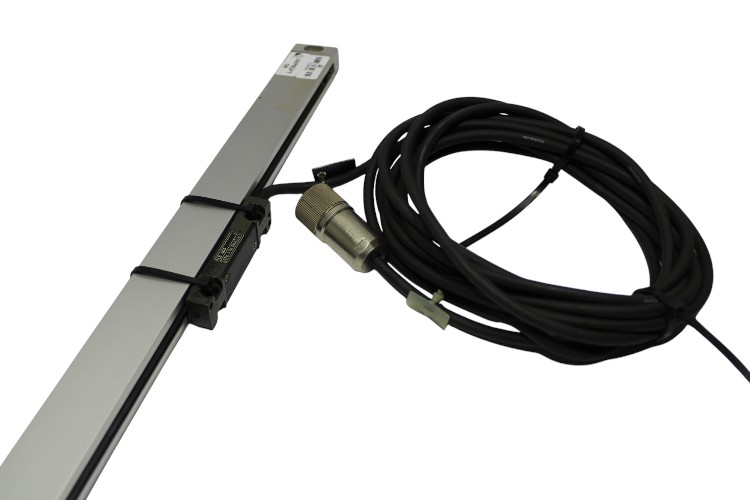

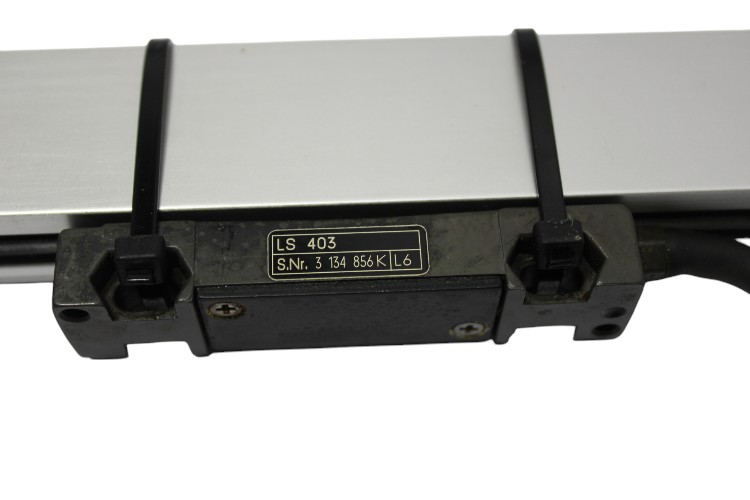

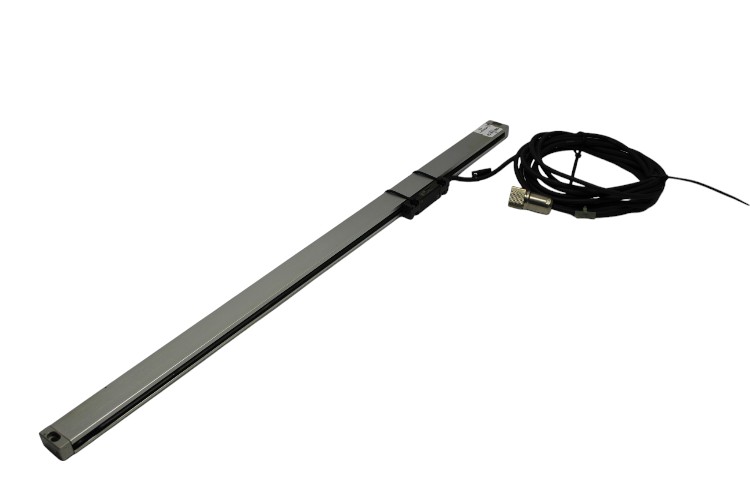

Heidenhain LS 403 Linear Scale Encoder

Name: HEIDENHAIN LS 403 LINEAR SCALE ENCODER
SKU: 1055637
Availability: LimitedAvailability

heidenhain-LS-403-linear-scale-encoder-(new)

heidenhain-LS-403-linear-scale-encoder-(new)-1

heidenhain-LS-403-linear-scale-encoder-(new)-2

heidenhain-LS-403-linear-scale-encoder-(new)-3

신제품

요청 시 제공 가능

리니어 스케일 인코더 Heidenhain LS403 리니어 스케일 인코더는 620mm 측정 길이, 5V 전원 공급 및 IP53/IP64 보호 기능을 갖추고 있습니다. 정밀한 응용을 위해 설계되었으며 산업 자동화에서 신뢰할 수 있는 위치 피드백을 보장합니다.

제조업체

HEIDENHAIN

SKU

1055637

카테고리

Linear Encoders

상태

신제품

400 620mm CNC Encoder Heidenhain high-precision Industrial IP64 Linear LS LS403 Measurement Positioning Scale Series System

방대한 재고

글로벌 배송

전문 지원

품질 보장

Heidenhain LS403 Linear Scale Encoder

The Heidenhain LS403 Linear Scale Encoder is a high-precision measurement system designed for industrial applications requiring accurate position feedback. With a robust design and incremental signal output, this encoder ensures reliable performance in automation and machining environments.

Manufacturer: Heidenhain

Type: Linear Scale Encoder

Model: LS403

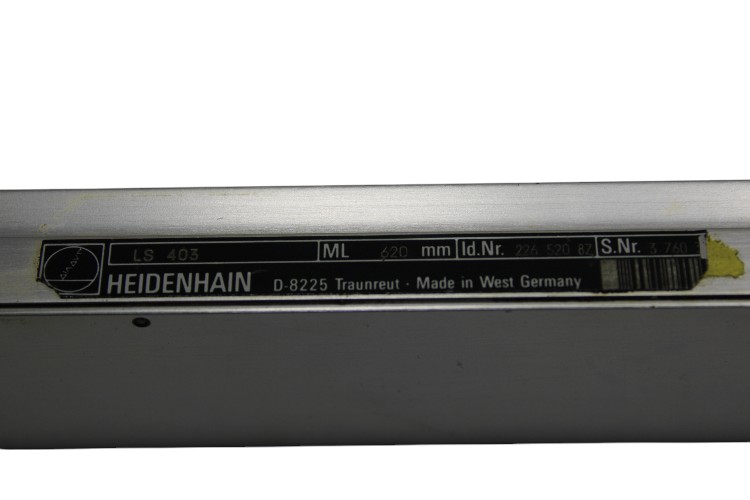

ID. NO.: 226 520 87

Series: LS 400

Designed for high accuracy and durability, the Heidenhain LS403 is an ideal choice for CNC machines, metrology equipment, and precision automation systems.

Power Supply	5 V / 100 mA
Max. Traversing Speed	48 m/min. (1890 ipm)
Measuring Length (ML)	620 mm
Required Moving Force	5N
Incremental Signals	2 sinusoidal signals
Electrical Connection	Connector
Protection Degree	IP53, IP64
Operating Temperature	0 to 50Â°C
