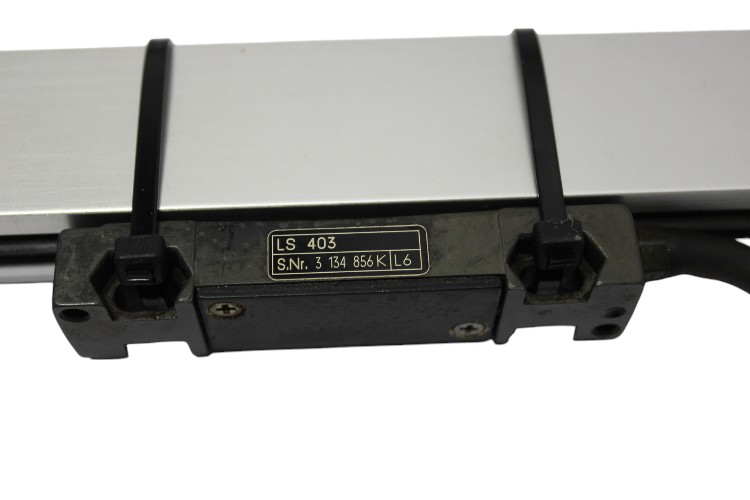

Heidenhain LS 403 Linear Scale Encoder
مُشَفِّر مِقياس خَطِّي يتميز Heidenhain LS403 مُشَفِّر مِقياس خَطِّي بطول قياس 620 مم، مزود طاقة 5 فولت، وحماية IP53/IP64. صُمم للتطبيقات الدقيقة، ويضمن تغذية راجعة موثوقة للموقع في الأتمتة الصناعية.
Heidenhain LS403 Linear Scale Encoder
The Heidenhain LS403 Linear Scale Encoder is a high-precision measurement system designed for industrial applications requiring accurate position feedback. With a robust design and incremental signal output, this encoder ensures reliable performance in automation and machining environments.
Manufacturer: Heidenhain
Type: Linear Scale Encoder
Model: LS403
ID. NO.: 226 520 87
Series: LS 400
Designed for high accuracy and durability, the Heidenhain LS403 is an ideal choice for CNC machines, metrology equipment, and precision automation systems.
| Power Supply | 5 V / 100 mA |
| Max. Traversing Speed | 48 m/min. (1890 ipm) |
| Measuring Length (ML) | 620 mm |
| Required Moving Force | 5N |
| Incremental Signals | 2 sinusoidal signals |
| Electrical Connection | Connector |
| Protection Degree | IP53, IP64 |
| Operating Temperature | 0 to 50°C |
