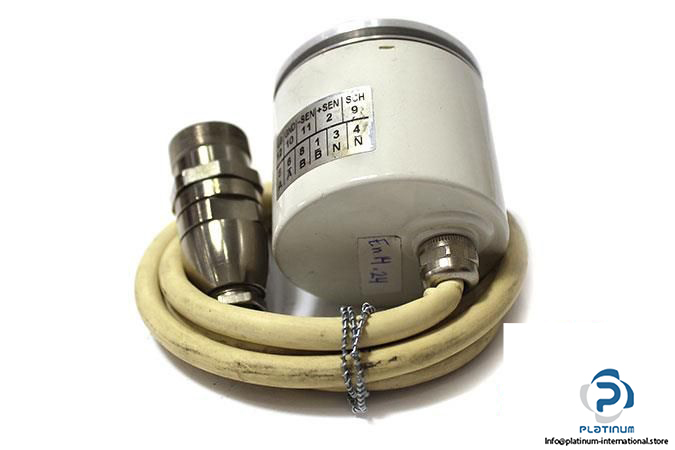

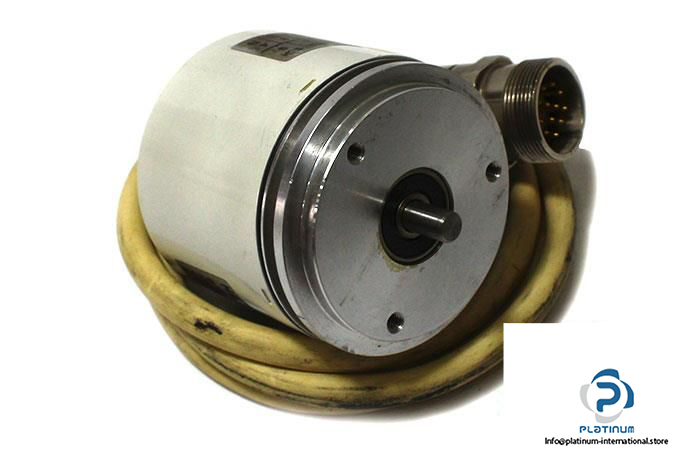

Hengstler RI58-O/2500AS.41TE-D Incremental Encoder
HENGSTLER RI58-O/2500AS.41TE-D INCREMENTAL ENCODER
The HENGSTLER RI58-O/2500AS.41TE-D is a high-precision incremental encoder built for industrial automation environments. Featuring 2500 pulses per revolution (PPR), solid shaft construction, and RS 422+Sense output, it ensures reliable feedback performance in motion control systems. With an IP65/64 protection rating and wide operating temperature range, this encoder delivers stable operation under demanding conditions.
Manufacturer: HENGSTLER
Type: Incremental Encoder

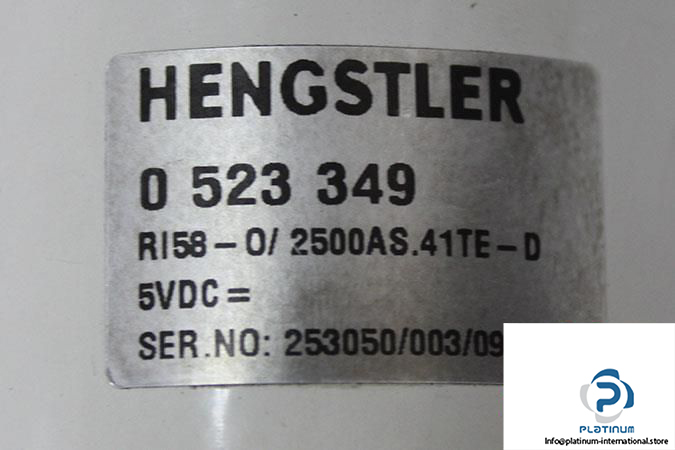

Model: RI58-O/2500AS.41TE-D
Part No: 0523349
Serial No: 253050/003/09
| Flange Type | Synchro Flange |

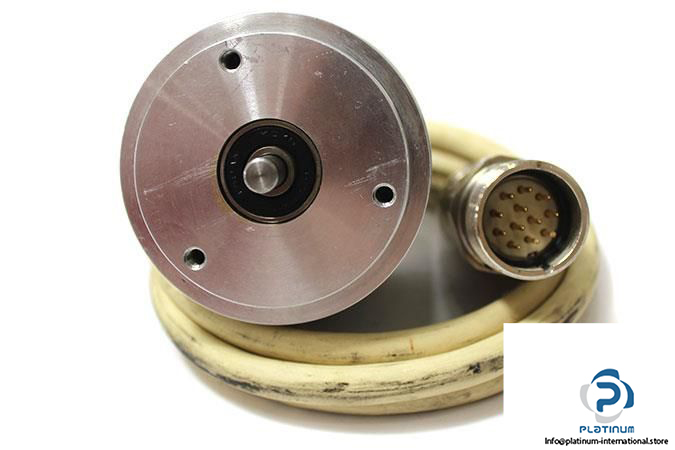

| Shaft Type | Solid Shaft |
| Shaft Diameter | 6 mm |
| Housing Diameter | 58 mm |
| Resolution | 2500 PPR (Pulses Per Revolution) |
| Voltage Supply | 5 VDC |

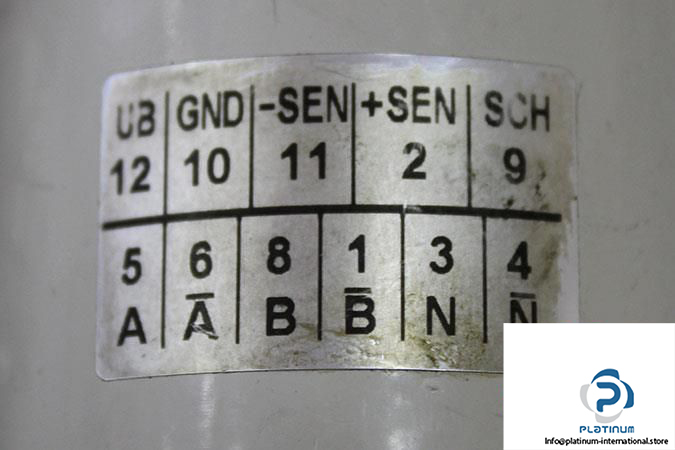

| Output Circuits | RS 422+Sense |
| Output Frequency | 0 / 100 KHz |
| Connection Type | TPE Cable, Axial |
| Protection Class | IP65/64 |
| Temperature Range | -10 / 70 °C |
