Motion Control Rotary Encoders

Lika I58-H-1000ZCZ46R/S506 Incremental Encoder

Name: LIKA I58-H-1000ZCZ46R/S506 INCREMENTAL ENCODER
SKU: 1002445
Price: 377.77 USD
Availability: InStock

lika-i58-h-1000zcz46r-s506-incremental-encoder-1

중고

재고 있음1 단위즉시 배송 가능

377,77$

증분 엔코더 Lika I58-H-1000ZCZ46R/S506 1000 ppr 해상도, 6mm 축, 방사형 연결 및 IP64 보호 기능을 갖춘 증분 엔코더. 5“30 V 전원 및 M23 12핀 플러그와 호환됩니다.

제조업체

LIKA

SKU

1002445

카테고리

Rotary Encoders

상태

중고

1000 connection Encoder High I58-H-1000ZCZ46R/S506 Incremental Industrial Lika M23 Output Plug PPR radial Resolution Universal

방대한 재고

글로벌 배송

전문 지원

품질 보장

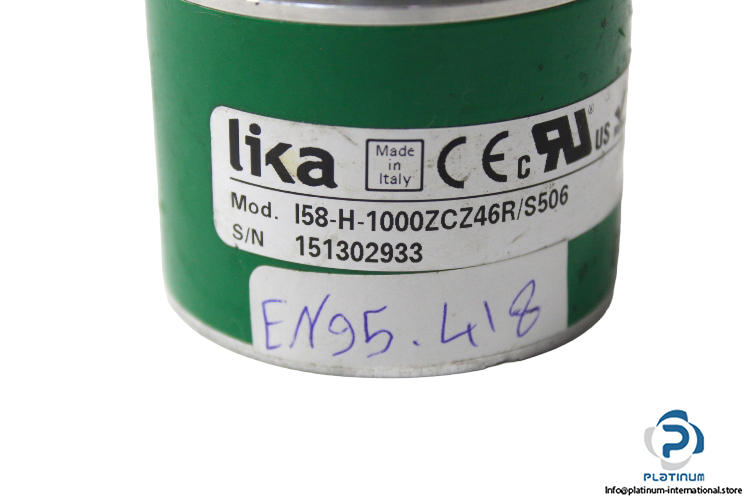

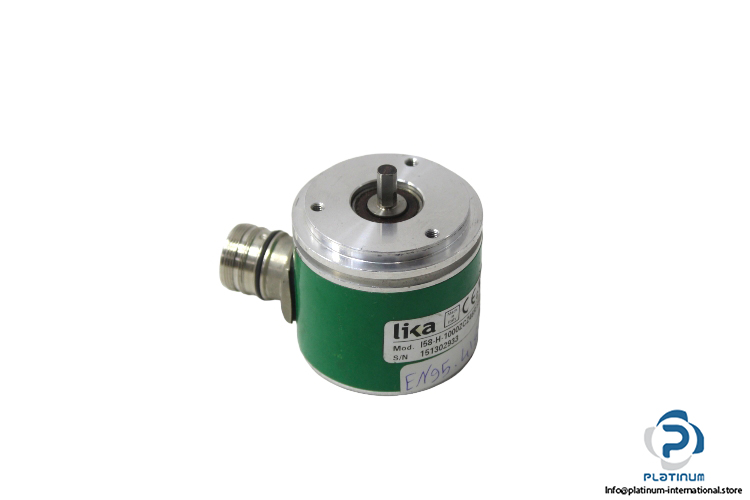

LIKA I58-H-1000ZCZ46R/S506 INCREMENTAL ENCODER

The Lika I58-H-1000ZCZ46R/S506 is a high-resolution incremental encoder designed for precision motion detection in industrial environments. With robust construction and a universal output circuit, it ensures compatibility and performance under demanding conditions.

Manufacturer: Lika

Type: Incremental Encoder

Model: I58-H-1000ZCZ46R/S506

Serial No.: 151302933

Supply Voltage	5 / 30 V
Shaft Diameter	6 mm
Resolution	1000 ppr
Connection Position	Radial
Output Circuit	PP/LD Universal Circuit
Output Signals / Connections	AB0 /AB0, M23 12 Pin Plug
Operating Temperature	-25 / +85 °C
Degree of Protection	IP64
