Lumberg KV 60 Circular Connector
원형 커넥터 LUMBERG KV60 6극 원형 커넥터, -40 °C~+85 °C 온도 범위, 내구성 있는 금속 하우징 및 산업용 애플리케이션을 위한 신뢰할 수 있는 5 A 정격 전류.

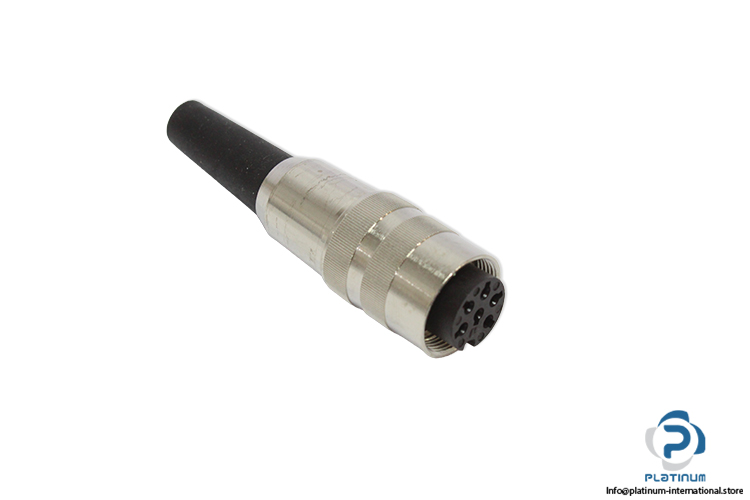

LUMBERG KV60 Circular Connector
The LUMBERG KV60 circular connector is a robust industrial connection solution designed for secure multi-pole electrical connections. It offers reliable signal and power transmission with durable materials and high mechanical resistance, making it suitable for demanding industrial environments.
Manufacturer: LUMBERG
Type: Circular Connector
Model: KV60
Part No.: 304020
Code: 19756
Connection: 6 Pole
Temperature Range: -40 °C / +85 °C
Materials
Insulating Body: PA GF, V-0 according to UL94
Contact Bush: CuZn, Silver-Plated and Passivated (3-8 Poles), CuZn Pre-Nickel and Gold-Plated (12 Poles)
Sleeve: PC, HB according to UL94
Strain Relief: Steel, Nickel-Plated
Housing: CuZn, Nickel-Plated
Knurled Nut: CuZn, Nickel-Plated
Bend Protection Sleeve: TPE
Screw: Steel, Nickel-Plated
Rated Voltage with Pollution Degree 1:
300 V (Versions 30, 40, 50/6, 60, 70)
100 V (Versions 50, 71, 80, 81)
160 V (Polbild 120)
Rated Voltage with Pollution Degree 2:
250 V (Versions 30, 40)
32 V (Versions 50, 71, 80, 81)
160 V (Versions 50/6, 60, 70, 120)
| Contact Resistance | ‰¤ 5 m„¦ |
| Rated Current | 5 A (Tamb 40 °C, 3-8 Poles), 3 A (Tamb 40 °C, 12 Poles) |
