재고 있음2 단위즉시 배송 가능

Moeller / Eaton 접촉기 DIL M17-10, 3극, 1개 정상 오픈 접점, AC-1 (380 V)에서 정격 동작 전류 40 A, 8000 V AC 고내성 임펄스 전압. 산업용 제어 및 스위칭 응용에 이상적입니다.

제조업체
Moeller / Eaton
SKU
1064424
상태
신제품
공유
방대한 재고
글로벌 배송
전문 지원
품질 보장

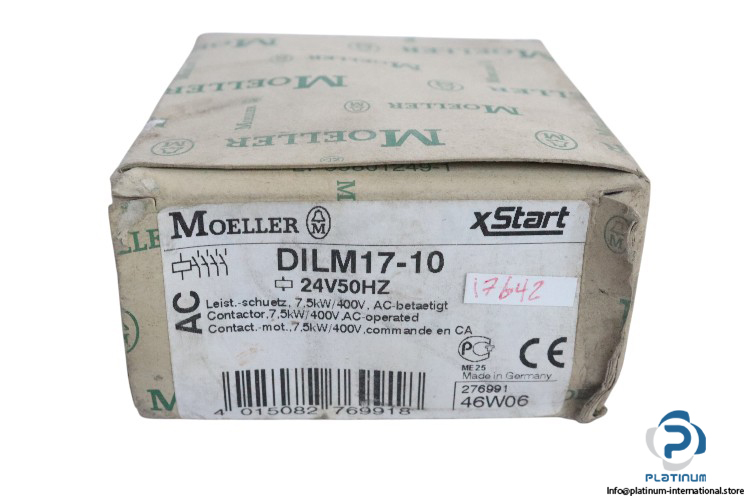

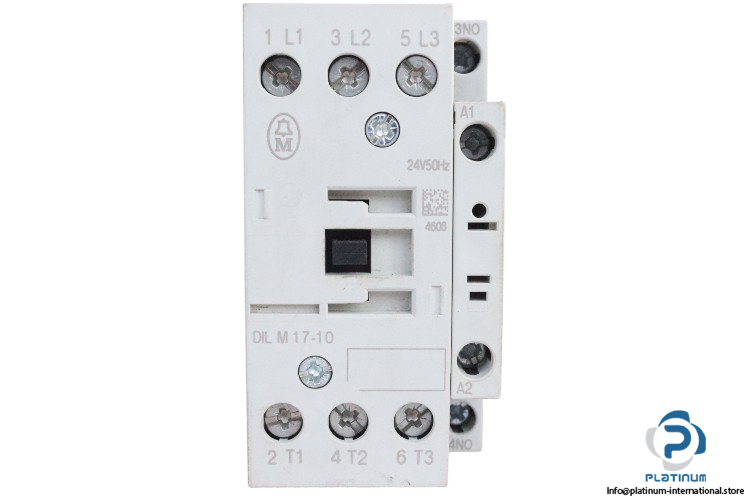

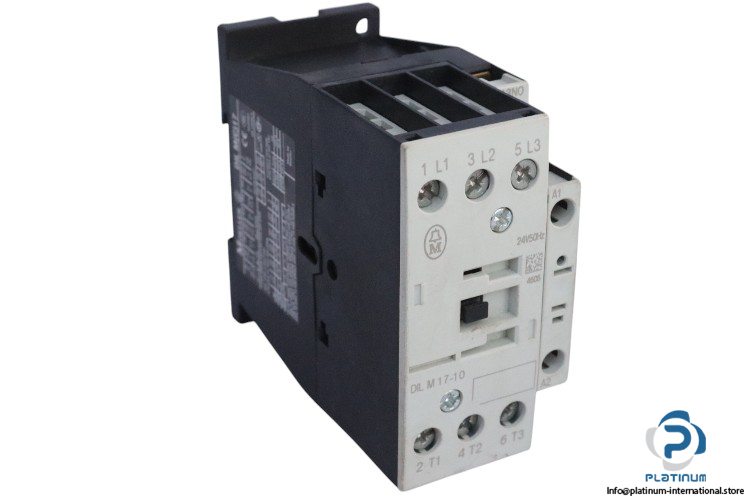

Moeller / Eaton Contactor DIL M17-10

Moeller / Eaton Contactor DIL M17-10 is designed for high-efficiency control and switching in industrial electrical applications. It is part of the DILM series and offers reliable performance with high operational current ratings, compact size, and easy installation. Below are the key technical specifications:

  • Manufacturer: Moeller / Eaton
  • Type: Contactor
  • Model: DIL M17-10
  • Series: DILM
  • EAN No.: 4015082769918

Technical Data:

  • Coil Voltage: 24 V AC at 50 Hz
  • Conventional Thermal Current (Ith): 35 A at 60°C (3-pole, open)
  • Rated Operational Current (Ie) at AC-1, 380 V, 400 V, 415 V: 40 A
  • Rated Operational Current (Ie) at AC-3, 380 V, 400 V, 415 V: 18 A
  • Rated Operational Current (Ie) at AC-4, 440 V: 10 A
  • Rated Operational Current (Ie) at DC-1, 60 V, 110 V, 220 V: 35 A
  • Rated Operational Power at AC-3, 380/400 V, 50 Hz: 7.5 kW
  • Rated Impulse Withstand Voltage (Uimp): 8000 V AC
  • Contact: 1 Normally Open
  • Number of Poles: 3
  • Connection: Screw terminals
  • Degree of Protection: IP00
  • Pollution Degree: 3
  • Operating Temperature: -25 to 60°C
  • Dimensions: 97 x 85 x 45 mm

더 보기 Moeller / Eaton

Moeller DILER-31 Mini Contactor Relay
신제품

Moeller / Eaton

Moeller DILER-31 Mini Contactor Relay

SKU: 1064427

수량: 5

견적을 통해 제공됩니다
Moeller PLS4-B50/3-MW Miniature Circuit Breaker
신제품

Moeller / Eaton

Moeller PLS4-B50/3-MW Miniature Circuit Breaker

SKU: 1043289

수량: 15

견적을 통해 제공됩니다
Moeller DIL00BM-G-10 Contactor
신제품

Moeller / Eaton

Moeller DIL00BM-G-10 Contactor

SKU: 1064435

수량: 1

견적을 통해 제공됩니다
Moeller DILR31-G Contactor Relay
신제품

Moeller / Eaton

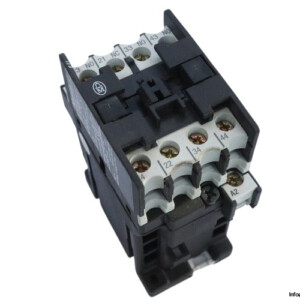

Moeller DILR31-G Contactor Relay
