Em estoque2 unidadesPronto para envio

Contator Moeller / Eaton DIL M17-10 com 3 polos, 1 contato normalmente aberto, corrente operacional nominal de 40 A em AC-1 (380 V) e alta resistência a impulsos de 8000 V AC. Ideal para aplicações industriais de controle e comutação.

Fabricante
Moeller / Eaton
SKU
1064424
Condição
Novo
Compartilhar
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

Moeller / Eaton Contactor DIL M17-10

Moeller / Eaton Contactor DIL M17-10 is designed for high-efficiency control and switching in industrial electrical applications. It is part of the DILM series and offers reliable performance with high operational current ratings, compact size, and easy installation. Below are the key technical specifications:

  • Manufacturer: Moeller / Eaton
  • Type: Contactor
  • Model: DIL M17-10
  • Series: DILM
  • EAN No.: 4015082769918

Technical Data:

  • Coil Voltage: 24 V AC at 50 Hz
  • Conventional Thermal Current (Ith): 35 A at 60°C (3-pole, open)
  • Rated Operational Current (Ie) at AC-1, 380 V, 400 V, 415 V: 40 A
  • Rated Operational Current (Ie) at AC-3, 380 V, 400 V, 415 V: 18 A
  • Rated Operational Current (Ie) at AC-4, 440 V: 10 A
  • Rated Operational Current (Ie) at DC-1, 60 V, 110 V, 220 V: 35 A
  • Rated Operational Power at AC-3, 380/400 V, 50 Hz: 7.5 kW
  • Rated Impulse Withstand Voltage (Uimp): 8000 V AC
  • Contact: 1 Normally Open
  • Number of Poles: 3
  • Connection: Screw terminals
  • Degree of Protection: IP00
  • Pollution Degree: 3
  • Operating Temperature: -25 to 60°C
  • Dimensions: 97 x 85 x 45 mm

Mais de Moeller / Eaton

Moeller PLS4-C63/3-MW Miniature Circuit Breaker
Novo

Moeller / Eaton

Moeller PLS4-C63/3-MW Miniature Circuit Breaker

SKU: 1043287

Qtd: 1

Disponível mediante cotação

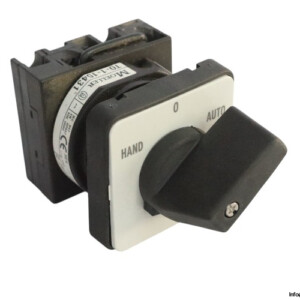

Moeller T0-1-15402/E Changeover Switch
