Novotechnik IP6501 A502 Angular Potentiometer

재고 있음1 단위즉시 배송 가능

349,99$

Angular Potentiometer

NOVOTECHNIK IP6501 A502 “ Precision rotary sensor with 6 mm sealed shaft, conductive plastic element, IP65, and wide temperature range.

제조업체
NOVOTECHNIK
SKU
1060350
카테고리
Rotary Encoders
상태
중고
공유
방대한 재고
글로벌 배송
전문 지원
품질 보장

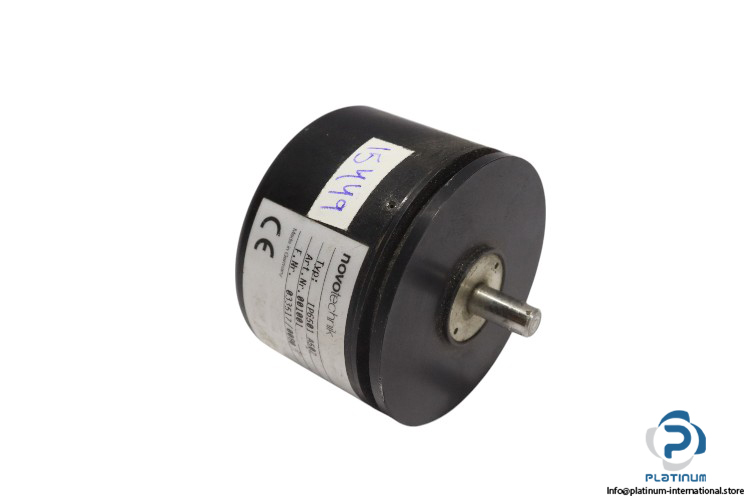

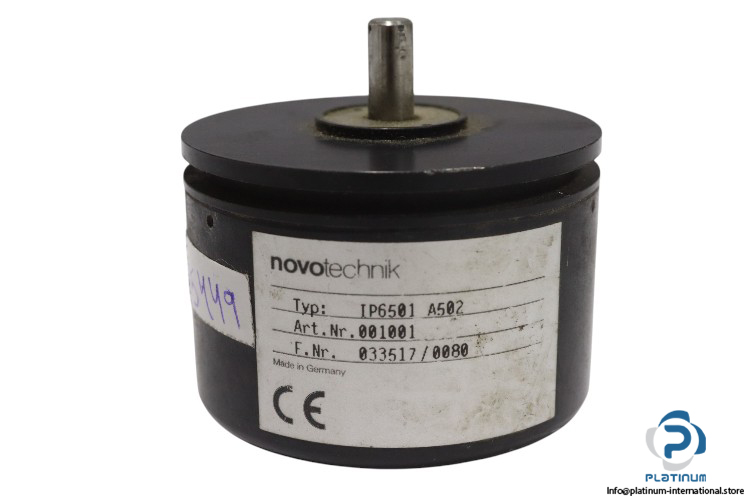

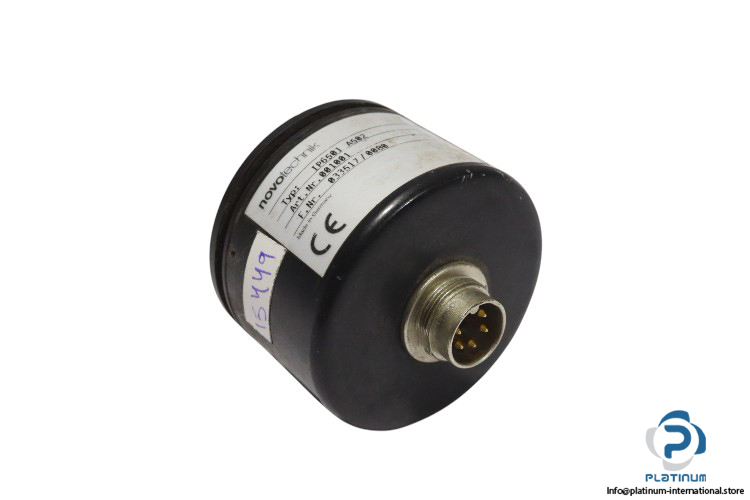

NOVOTECHNIK IP6501 A502 Angular Potentiometer

The NOVOTECHNIK IP6501 A502 is a precision angular potentiometer engineered for accurate rotary position measurement in industrial environments. With a sealed 6 mm stainless steel shaft, conductive plastic resistance element, and precious metal multi-finger wiper, this sensor ensures long-lasting, high-resolution feedback. Its aluminum anodized housing and stainless steel ball bearings offer excellent mechanical durability. With an IP65 protection rating and operating temperature range from -40°C to +100°C, it is ideal for robust applications requiring reliable angular position sensing.

  • Manufacturer: NOVOTECHNIK
  • Type: Angular Potentiometer
  • Model: IP6501 A502
  • Part No.: 001001 / 033517 / 0080

Technical Specifications:

  • Max. Permissible Applied Voltage: 42 V
  • Shaft Diameter: 6 mm
  • Shaft Type: Sealed Shaft
  • Max. Wiper Current (in malfunction): 10 mA
  • Case Material: Aluminum, anodized
  • Shaft Material: Stainless steel
  • Bearings: Stainless steel ball bearings
  • Resistance Element: Conductive plastic
  • Wiper Assembly: Precious metal multi-finger wiper
  • Electrical Connection: 5-pin connector
  • Protection Class: IP65
  • Operating Temperature: -40°C to +100°C

Applications:

  • Robotics and automation
  • Industrial machinery feedback systems
  • Angle and position sensing
  • Motion control systems
