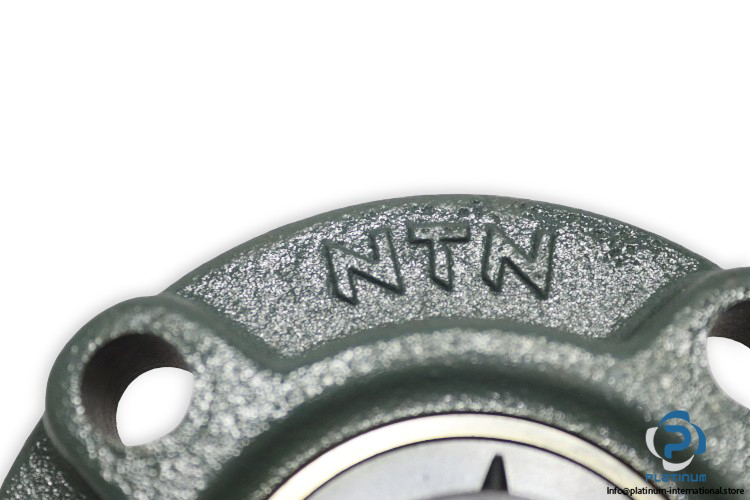

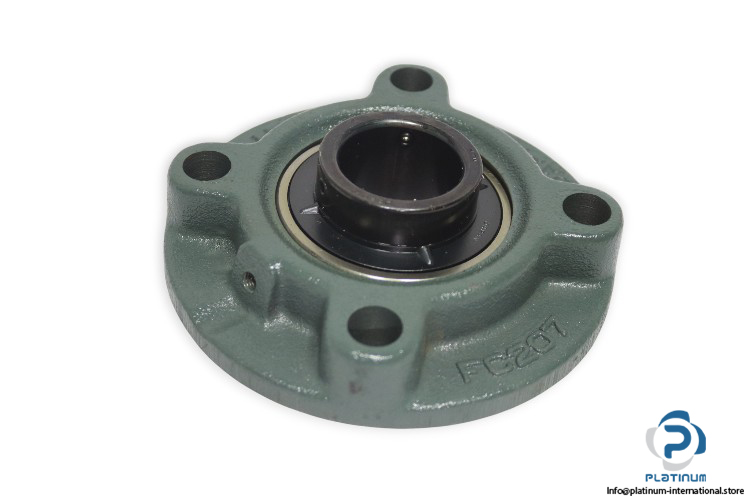

NTN M-UCFC207D1 Four Bolt Round Flanged Unit
NTN M-UCFC207D1 Four Bolt Ball Bearing Unit
The NTN M-UCFC207D1 is a four-bolt flange-mounted ball bearing unit designed to provide stable shaft support, high load capacity, and reliable operation in industrial applications.
Manufacturer: NTN
Type: Four Bolt Ball Bearing Unit
Model: M-UCFC207D1

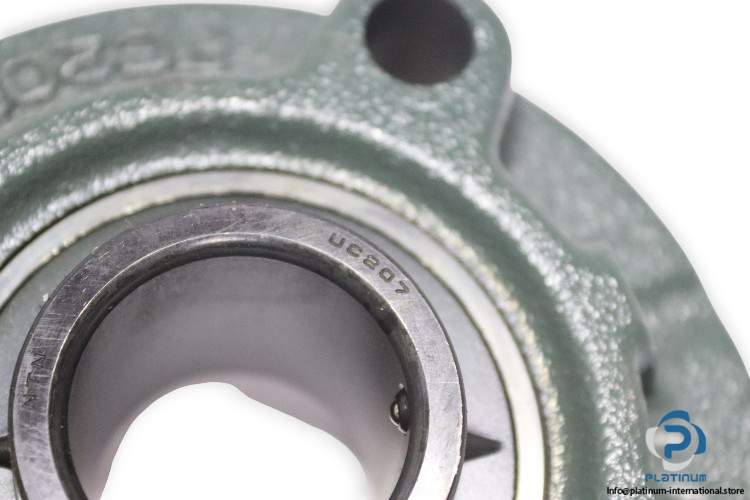

Bearing Number: UC207

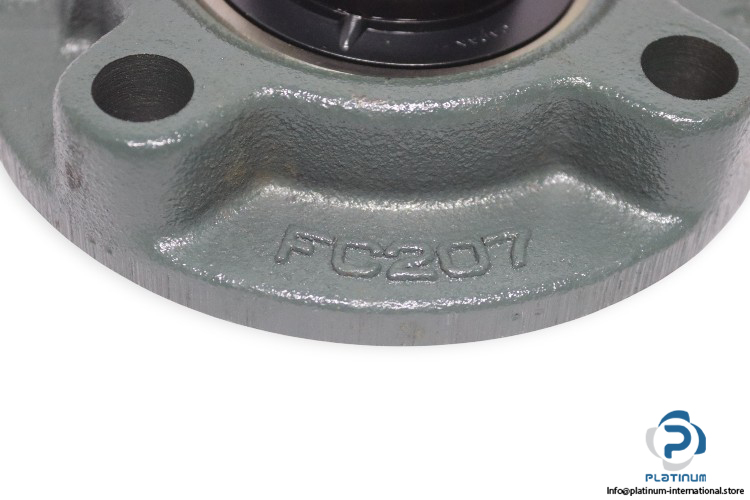

Housing Number: FC207
| Bore Diameter (d) | 35 mm |
| Overall Length (L) | 135 mm |
| Overall Height (H2) | 52 mm |
| Width of Inner Ring (B) | 42.90 mm |
| Distance Between Attachment Bolts (J) | 110 mm |
| Attachment Bolt Hole Diameter (N) | 14 mm |
| Dynamic Load Rating (Cr) | 25,700 N |
| Static Load Rating (C0r) | 15,300 N |
| Maximum Rotational Speed | 4,200 rpm |
| Mounting Type | Four-Bolt Flange |
| Locking Device | Set Screw |
| Housing Material | Cast Iron |
