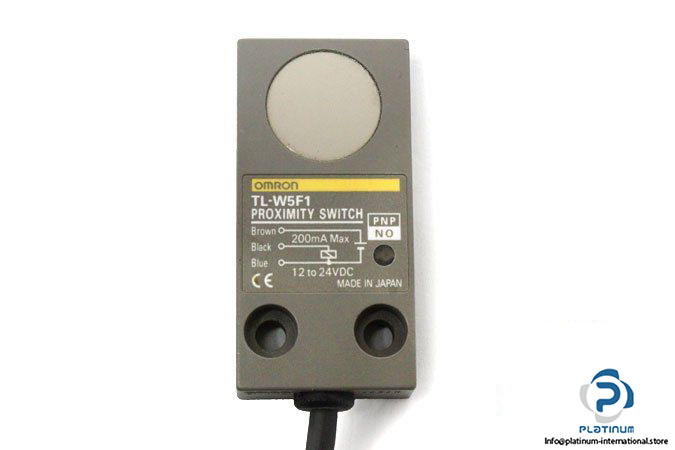

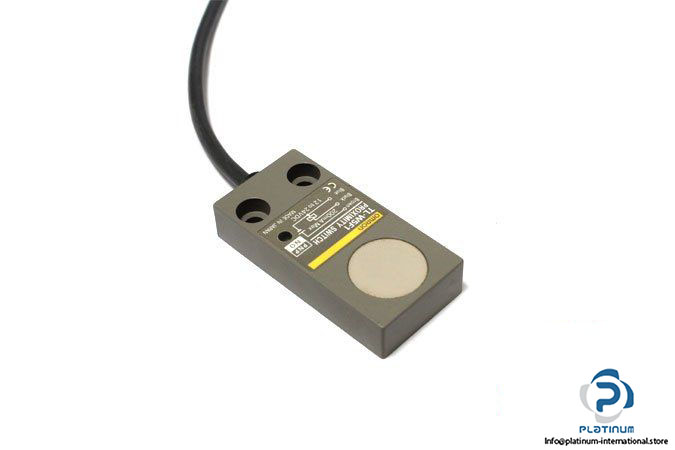

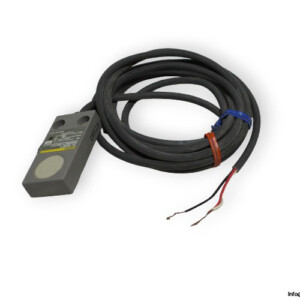

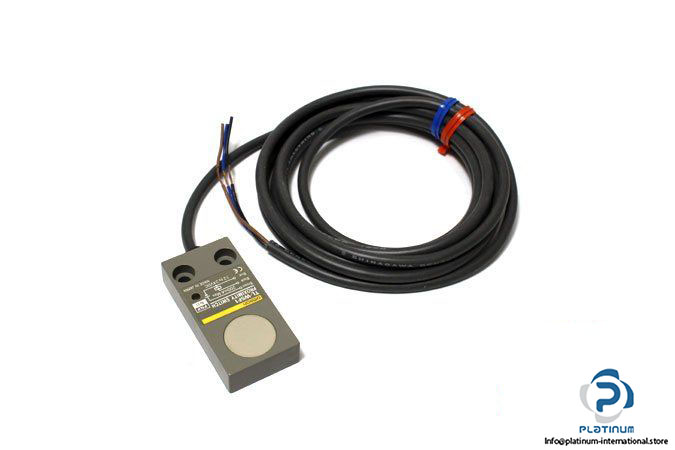

Omron TL-W5F1 Inductive Proximity Sensor
Manufacturer: OMRON
Type: INDUCTIVE PROXIMITY SENSOR
Model No.: TL-W5F1
Rated operating distance: 5 mm
Assured operating distance: 0 … 4 mm
Operating Voltage: 10 … 30 V DC
Switching frequency: 300 Hz
Electrical design: PNP
Switching output: Normally open
Connector type: PVC Cable, 2 m
Sensing object: Ferrous metal (Sensitivity lowers with non-ferrous metals
Enclosure rating: IP67
Ambient Operating temperature: -25 … 70°C
Dimensions: 24.9 x 10 x 50 mm
Weight: 100 g
Sensing face material: Heat-resistant ABS resin
