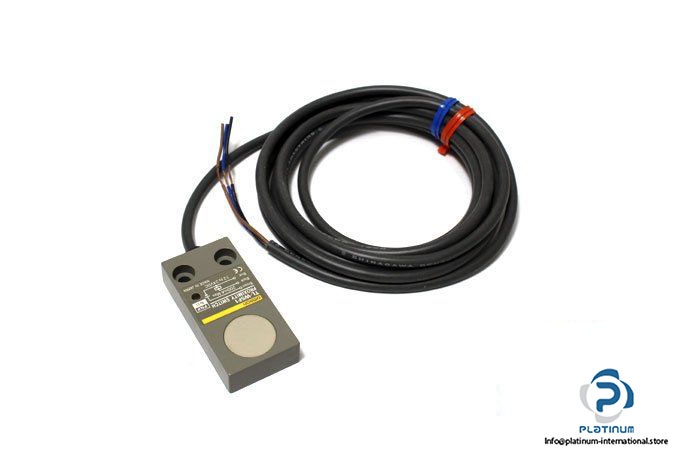

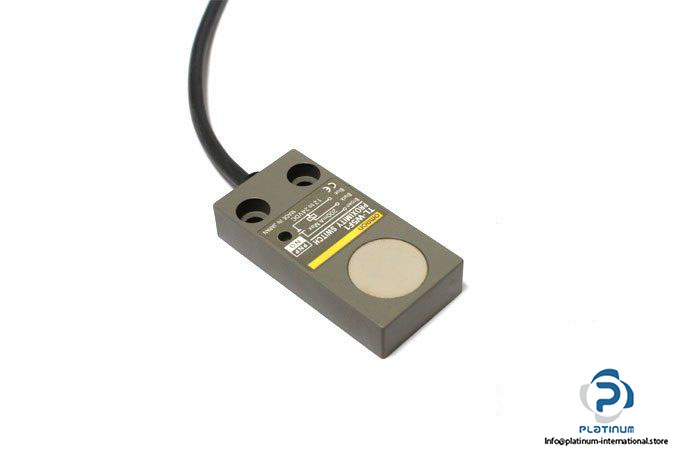

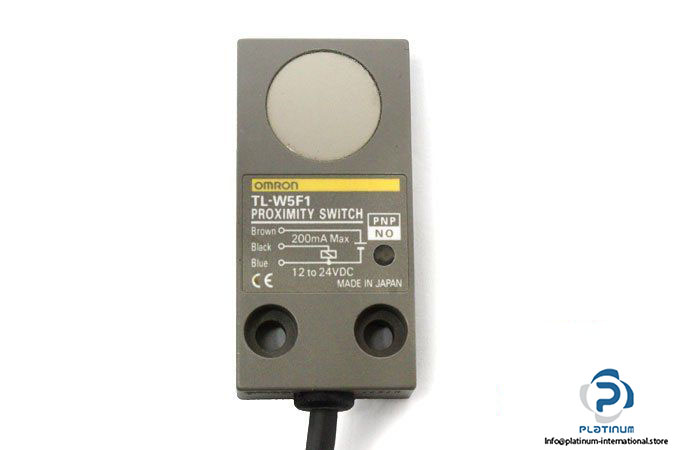

Omron TL-W5F1 Inductive Proximity Sensor

Manufacturer:  OMRON

Type:  INDUCTIVE PROXIMITY SENSOR

Model No.: TL-W5F1

Rated operating distance: 5 mm

Assured operating distance: 0 … 4 mm

Operating Voltage: 10 … 30 V DC

Switching frequency: 300 Hz

Electrical design: PNP

Switching output: Normally open

Connector type: PVC Cable, 2 m

Sensing object: Ferrous metal (Sensitivity lowers with non-ferrous metals

Enclosure rating: IP67

Ambient Operating temperature: -25 … 70°C

Dimensions: 24.9 x 10 x 50 mm

Weight: 100 g

Sensing face material: Heat-resistant ABS resin
