Aeco SC30M-A20 No/Nc K Capacitive Sensor

Name: AECO SC30M-A20 NO/NC K CAPACITIVE SENSOR
SKU: 1084137
Availability: LimitedAvailability

aeco-sc30m-a20-no-nc-kcapacitive-sensor(new)

aeco-sc30m-a20-no-nc-kcapacitive-sensor(new)-1

aeco-sc30m-a20-no-nc-kcapacitive-sensor(new)-2

aeco-sc30m-a20-no-nc-kcapacitive-sensor(new)-3

aeco-sc30m-a20-no-nc-kcapacitive-sensor(new)-4

aeco-sc30m-a20-no-nc-kcapacitive-sensor(new)-5

Nieuw

Op voorraad7 eenhedenKlaar voor verzending

Capacitive Sensor

Industrial AECO capacitive sensor with adjustable sensing distance up to 20 mm, programmable NO/NC output, and wide 20“250 VAC/DC operating voltage for automation and level detection systems.

Fabrikant

AECO

SKU

1084137

Categorie

Sensors

Staat

Nieuw

AC Adjustable Aeco Automation Capacitive dc Industrial IP65 M30 NC NO programmable Proximity Sensor

Enorme Voorraad

Wereldwijde verzending

Deskundige Ondersteuning

Kwaliteit Gegarandeerd

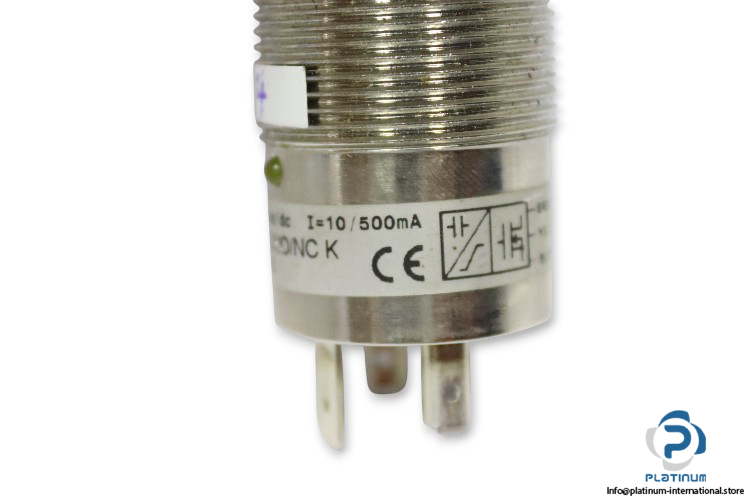

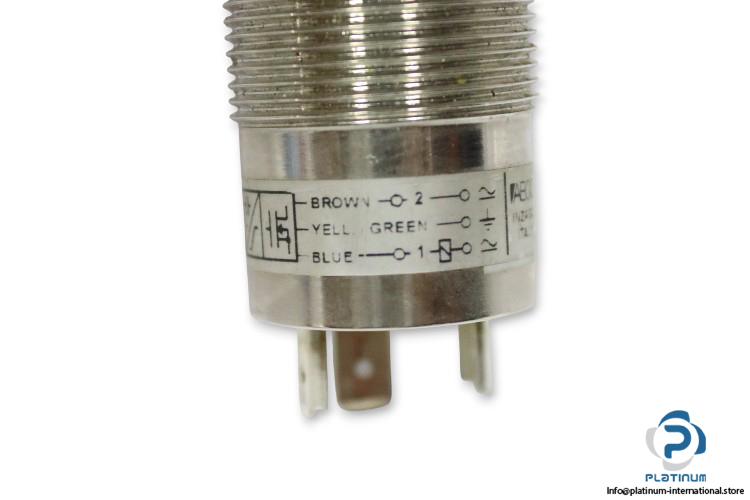

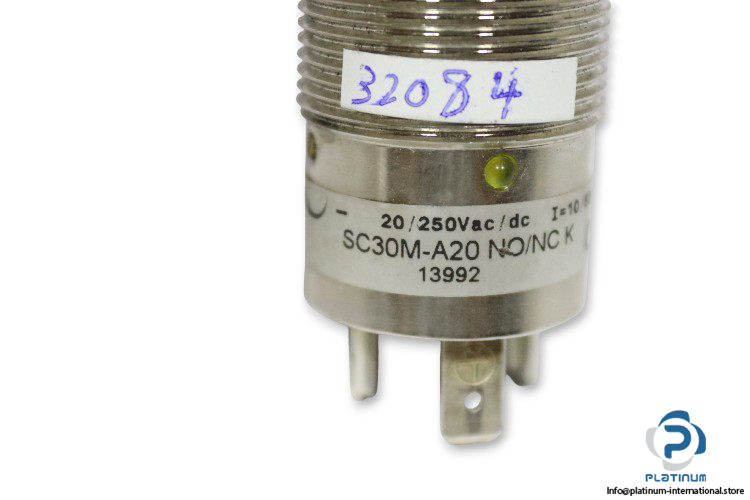

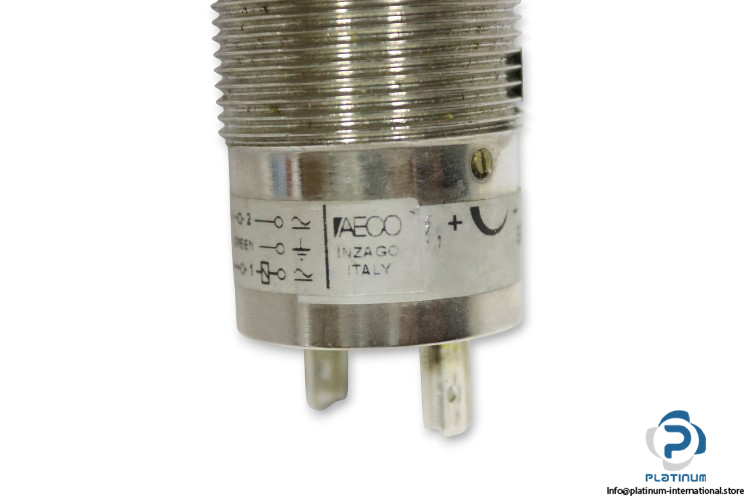

AECO SC30M-A20 NO/NC K Capacitive Sensor

The AECO SC30M-A20 NO/NC K is an industrial capacitive proximity sensor designed for reliable detection of solid, liquid, and granular materials. It features adjustable sensing distance and programmable NO/NC output, making it suitable for automation, level detection, and object sensing applications.

Manufacturer: AECO

Type: Capacitive Sensor

Model: SC30M-A20 NO/NC K

Part Number: 13992

Working Voltage	20 to 250 VAC/DC
Output Type	AC/DC
Function	NO or NC Programmable
Actuation Type	Instantaneous
Sensing Distance	0 to 20 mm Adjustable
Hysteresis	20% Sn
Maximum Switching Frequency	10 Hz
Repeatability	10% Sn
Maximum Output Current	500 mA
Minimum Output Current	10 mA
Maximum Peak Current (20 ms)	1.5 A
Residual Current	2 mA
Voltage Drop	6 V
Mechanical Characteristics	M30 X 1.5
Housing Material	Nickelled Brass
Connection Type	K Plug
Temperature Limits	ˆ’20 to +70 °C
IP Rating	IP65
