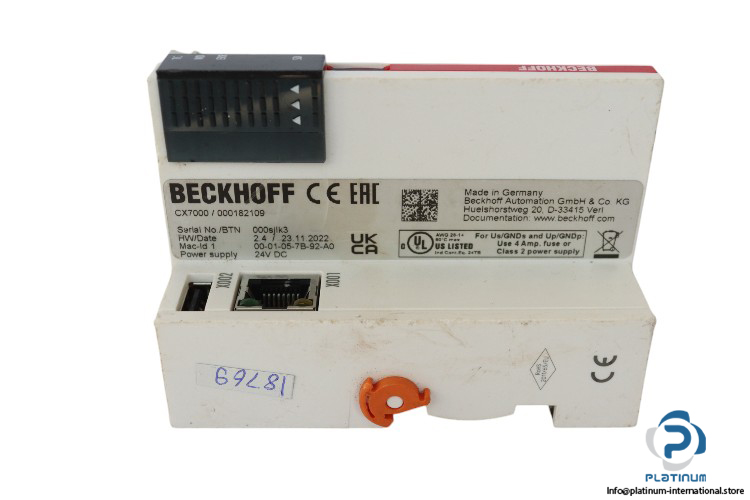

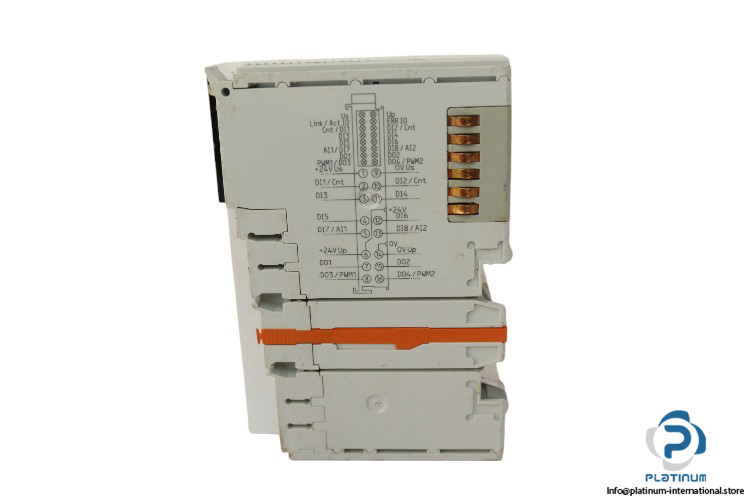

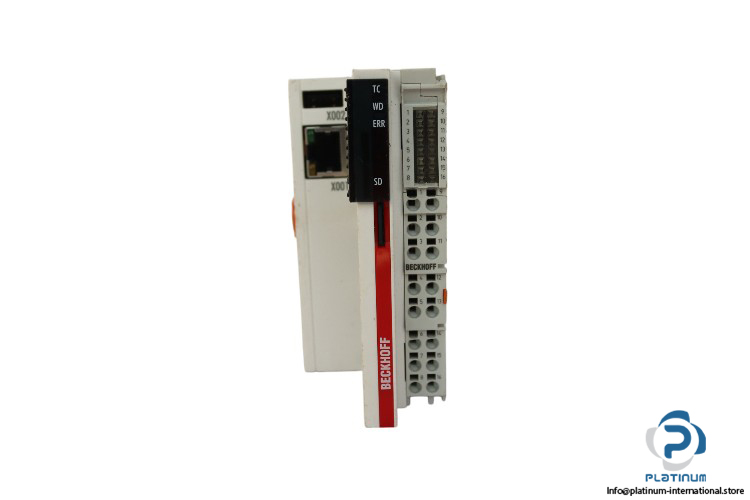

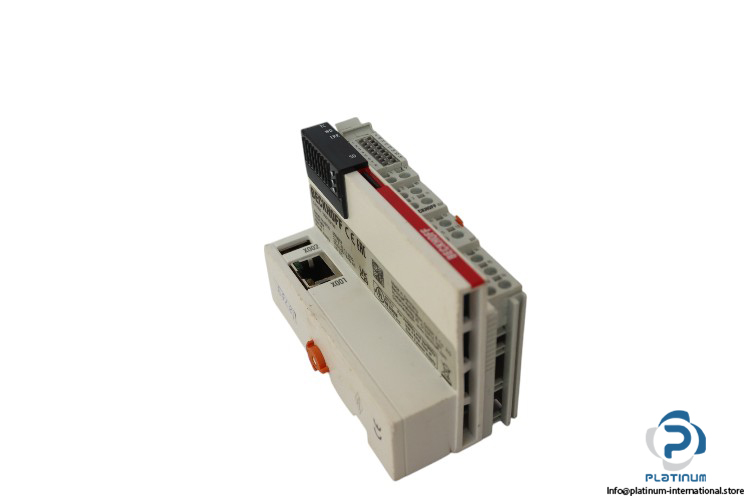

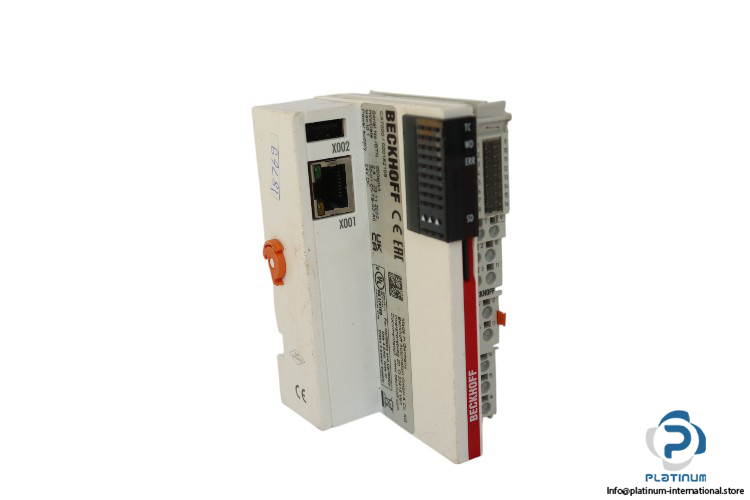

Beckhoff CX7000 Digital Input
333,33$
Digital Input
The Beckhoff CX7000 Digital Input module offers 8 inputs with a nominal voltage of 24 V DC, configurable input filtering, and 32-bit counter depth. Ideal for precise signal monitoring in industrial automation systems.Beckhoff CX7000 Digital Input
The Beckhoff CX7000 Digital Input is a high-performance device designed for use in industrial automation and control systems. This input module is based on 1-wire connection technology and offers 8 inputs, each with a nominal voltage of 24 V DC. The module is capable of handling a maximum output current of 24 V/0.5 A, making it suitable for a variety of industrial control tasks. The CX7000 features configurable input filtering, with the default filter set at 3 ms, and it can be reduced to a minimum of 10 μs for high-speed applications.
Manufacturer: Beckhoff
Type: Digital Input
Model: CX7000
This digital input module is ideal for applications that require precise control and monitoring of digital signals, providing reliable and efficient operation in a range of industrial environments.
| Connection Technology | 1-wire |
| Number of Inputs | 8 |
| Nominal Voltage | 24 V DC |
| Max. Output Current | 24 V/0.5 A |
| Number of Inputs | 2 |
| Internal Resistance | 500 KΩ |
| Counter Depth | 32-bit |
| Signal Voltage "0" | -3 / +5 V |
| Signal Voltage "1" | 11 / 30 V |
| Input Filter | Configurable, default: 3 ms, min.: 10 μs |
| Strip Length | 8 / 9 mm |
