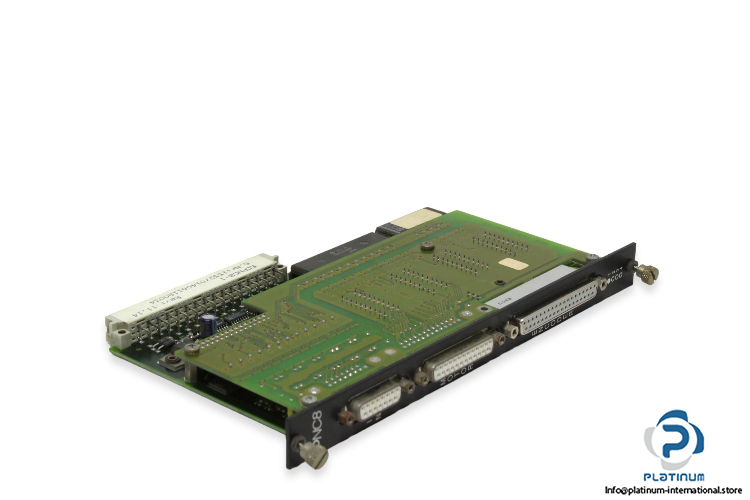

B&R PNC8 POSITIONING MODULE
450,00$
POSITIONERINGSMODULE B&R PNC8 is een compacte en efficiënte positioneringsmodule met 12 digitale ingangen, 16 digitale uitgangen, 4-assige bediening en 12-bits analoge uitvoer voor servomotoren, ideaal voor hoogprecisie automatiseringsomgevingen.
B&R PNC8 POSITIONING MODULE
The B&R PNC8 is a high-performance positioning module designed for advanced motion control applications. With support for multiple digital I/Os and encoder signal integration, it is ideal for use in automation systems requiring reliable servo motor coordination and fast input/output response times.
Manufacturer: B&R
Type: Positioning Module
Model: PNC8

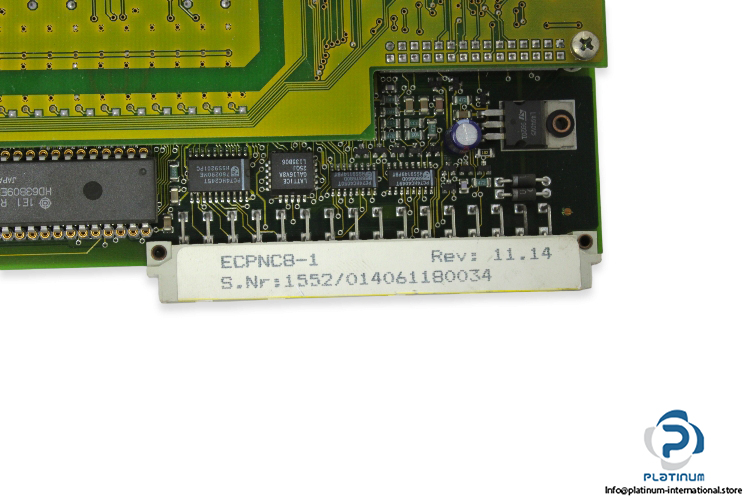

Part No.: ECPNC8-1
Revision: 11.14
Serial No.: 1552/014061180034
Input Specifications
- Number of Digital Inputs (DI): 12
- Input Voltage: 24 V DC
- Input Current: 6 mA
- Maximum Input Frequency: 100 kHz
Output Specifications
- Number of Digital Outputs (DO): 16
- Output Voltage: 24 / 30 V DC
- Maximum Output Current: 400 mA
Performance & Connectivity
- Power Consumption: 3.9 W
- Number of Axes Controlled: 4
- Analog Output for Servo Motors: 12 Bit
- Switching Delay: 10 msec

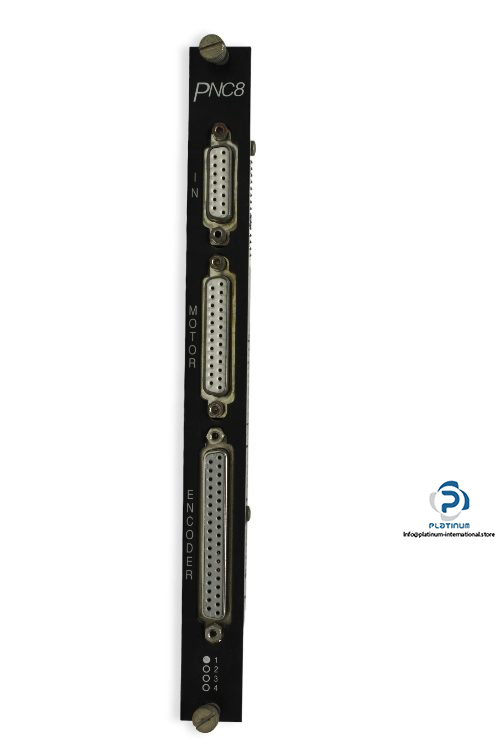

- Signal Encoder Connection: 37 pin
- Signal Encoder Input Voltage: 5 / 24 V
- Maximum Counter Frequency: 400 kHz
- Counting Range: 32 Bit Binary
Dimension: 127 x 25 x 229 mm
