Datalogic ET3-1342 Universal Midi Sensor

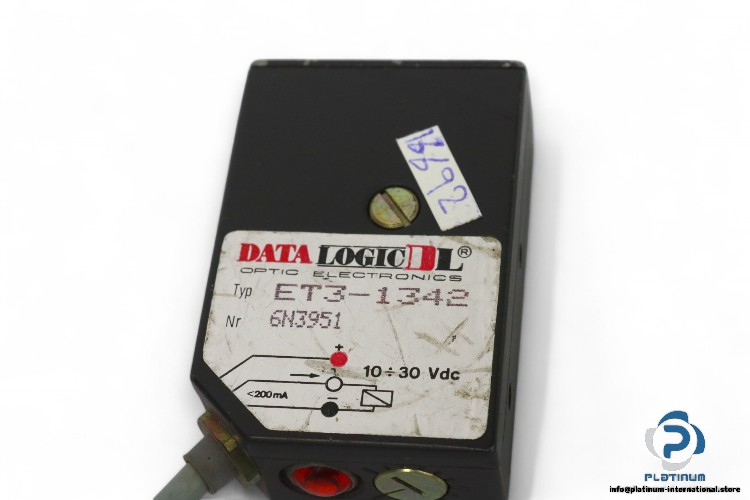

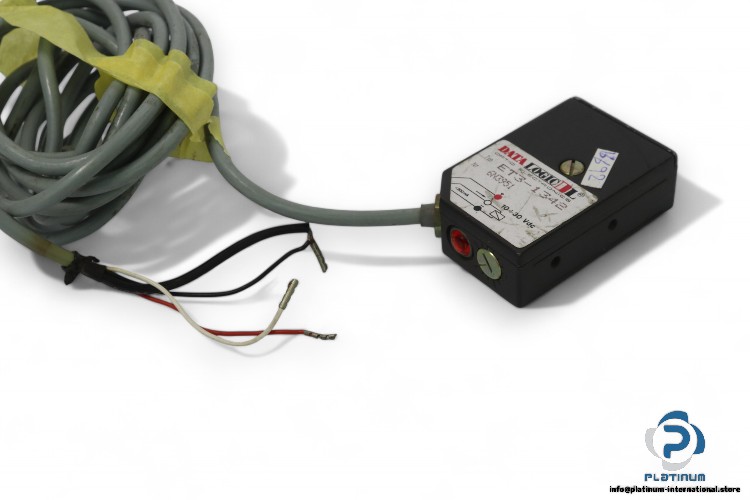

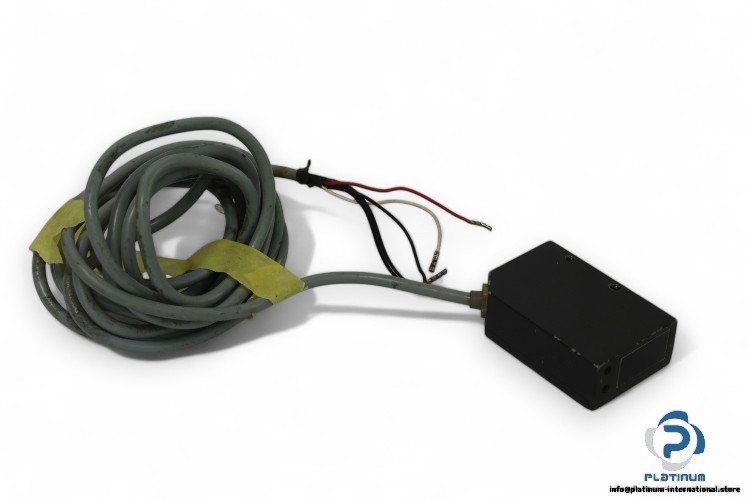

DATALOGIC Universal MIDI Sensor ET3-1342

The DATALOGIC Universal MIDI Sensor ET3-1342 is designed for versatile industrial applications, offering configurable NPN/PNP output types and high reliability with a response time of just 1 ms. With robust protection ratings (IP67, IP64) and wide operating temperature range, this sensor ensures durability and optimal performance in challenging environments.

Manufacturer: DATALOGIC

Model: ET3-1342

Part No.: 6N3951

Technical Specifications

• Power Supply: 10 … 30 V DC
• Output Type: NPN/PNP configurable
• Output Current: 200 mA max.
• Response Time: 1 ms max.
• Switching Frequency: 500 Hz max.
• Operating Mode: Dark/Light configurable
• Connection: M12 4-pole connector 3 m Ø 5 mm cable
• Electrical Protection: Class 1
• Mechanical Protection: IP67, IP64
• Housing Material: ZAMA
• Lens Material: PMMA plastic
• Operating Temperature: -25 … +55°C
