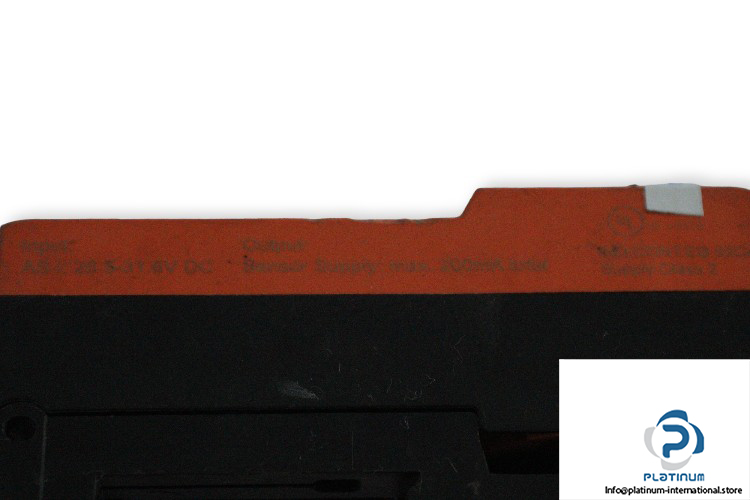

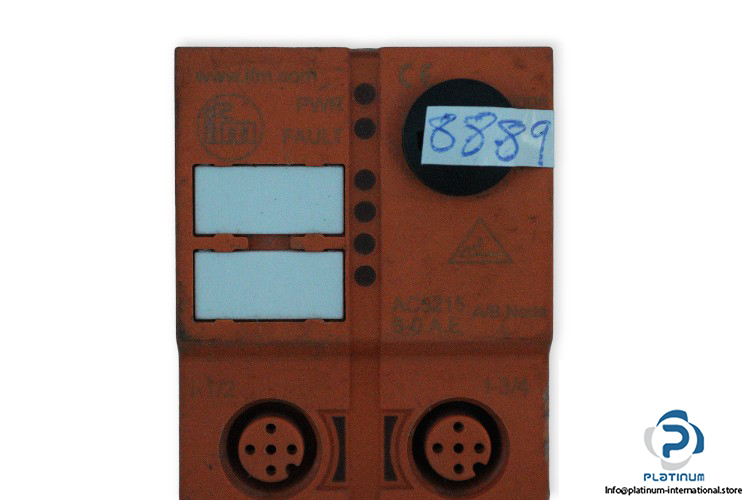

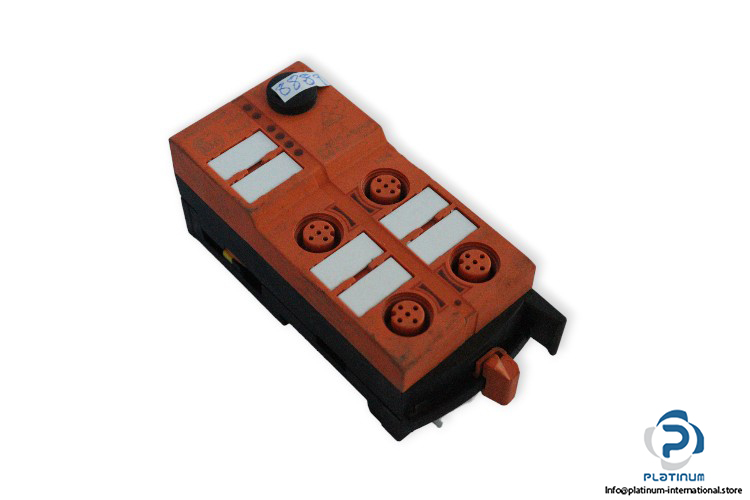

IFM AC5215 AS-Interface

Manufacturer: IFM
Type: As-Interface Classic Line Module
Model: AC5215

Operating voltage: 26.5…31.6 VDC
Max. current consumption from AS-i: 250 mA
Number of digital inputs: 4
Input circuit of digital inputs: PNP
Sensor supply of the inputs: AS-i
Power supply: 18…30 V (DC)
Max. total current rating of inputs: 200 mA
Input current High: 6…10 mA
Input current Low: 0…2 mA
Ambient temperature: -25…70 °C
Protection Class: IP 67
