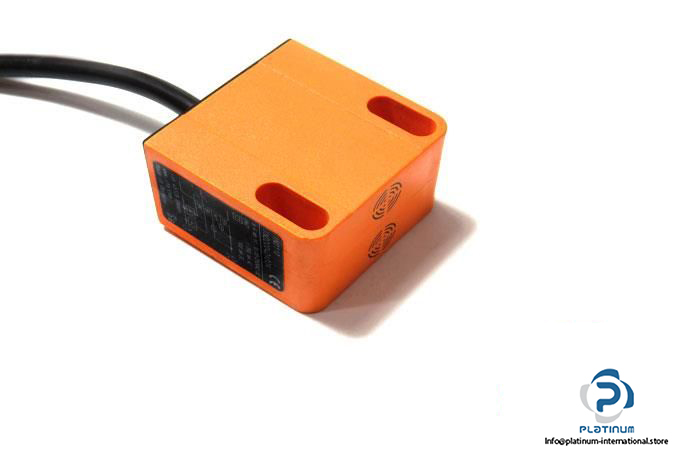

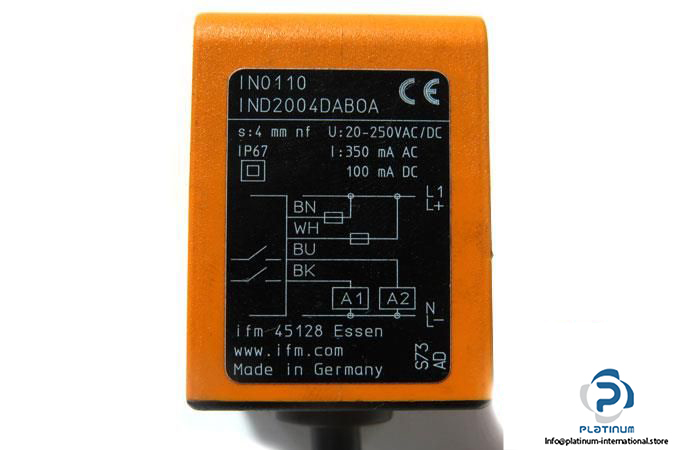

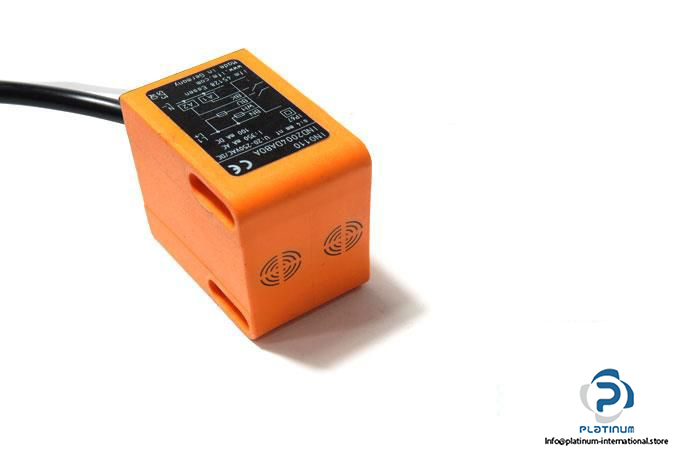

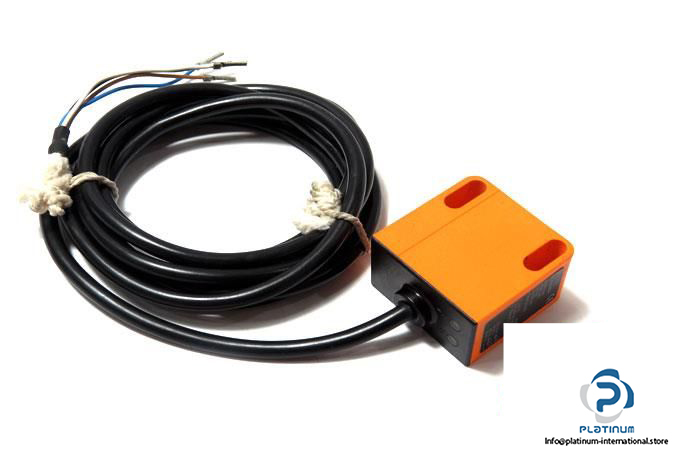

IFM IN0110 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE DUAL SENSOR FOR VALVE ACTUATORS

Part No.: IN0110

MRN: IND2004DAB0A

Sensing Range: 4 mm

Real Sensing Range: 4 ± 10% mm

Operating Distance: 0 … 3.25 mm

Operating Voltage: 20 … 250 V DC

Voltage Drop max. (AC, DC): 6.5V AC, 6.5 V DC

Switching output current (AC, DC): 100 mA AC , 350 mA DC

Switching frequency (AC, DC): 25, 50 Hz

Output Function: Normally open

Connection type: PVC Cable, 2 m

Protection Class: II

Enclosure rating: IP65

Housing: Rectangular

Ambient Operating temperature: -25 … 80°C

Dimensions: 40 x 26 x 40 mm

Material: PBT

Mounting: Non-flush mountable

Weight: 154.5 g

Condition: Used
