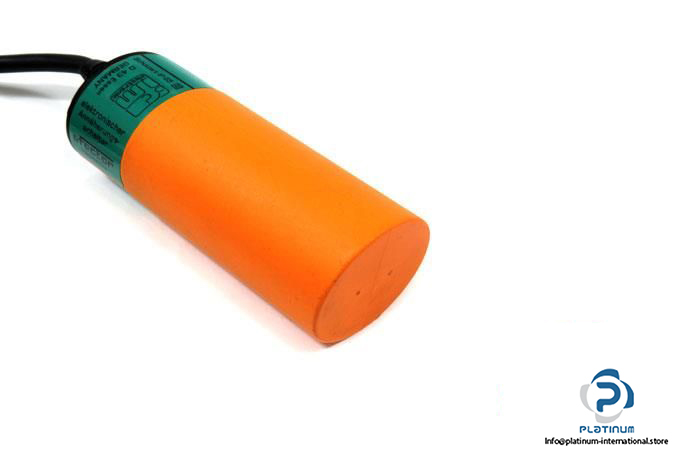

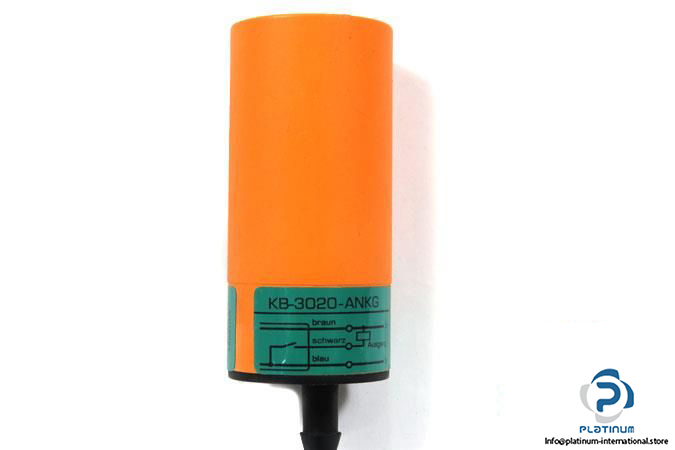

IFM KB-3020-ANKG Capacitive Sensor

Manufacturer: ifm

Type: CAPACITIVE SENSOR

Part No.: KB5202

MRN: KB-3020-ANKG

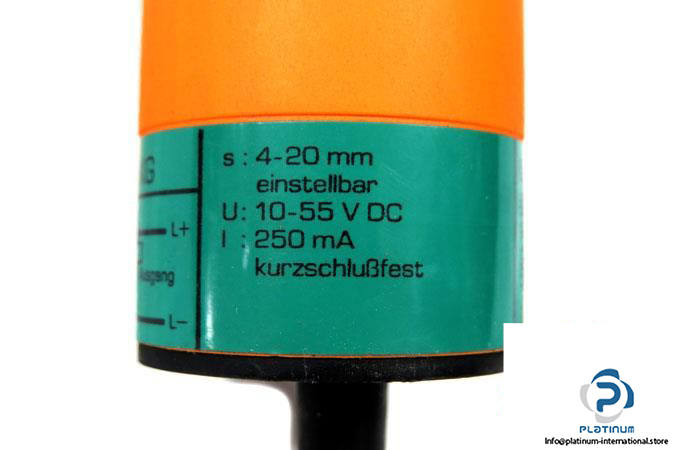

Sensing Range: 4 … 20 mm

Real Sensing Range: 20 ± 10% mm

Operating Distance: 0 … 16.2 mm

Operating Voltage: 10 … 55 V DC

Voltage Drop max.: 2.5 V DC

Switching output current: 250 mA DC

Switching frequency: 40 Hz

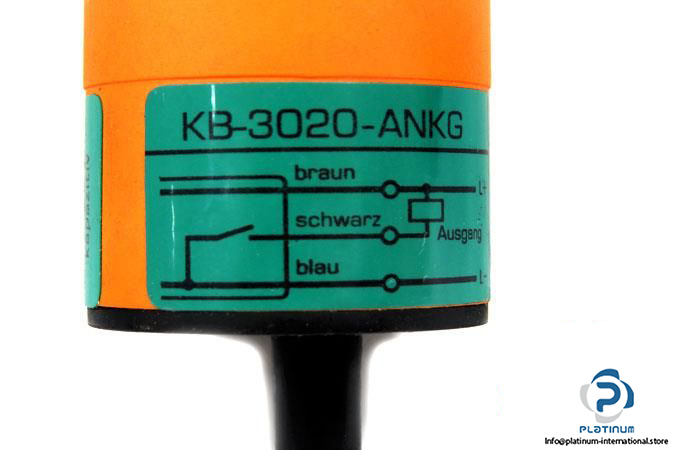

Electrical Design: NPN

Output Function: Normally open

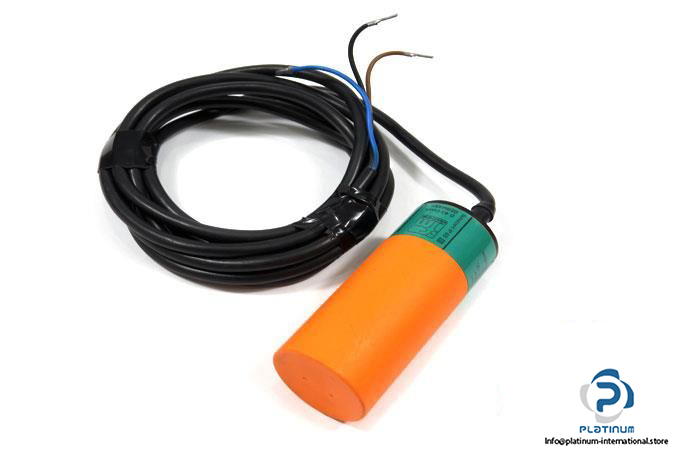

Connector type, length: PVC Cable, 2 m

Protection Class: II

Enclosure rating: IP65

Housing: Cylindrical

Ambient Operating temperature: -25 … 70°C

Diameter, Housing length: 34 ,81 mm

Material: PBT

Mounting: Non-flush mountable

Condition: New
