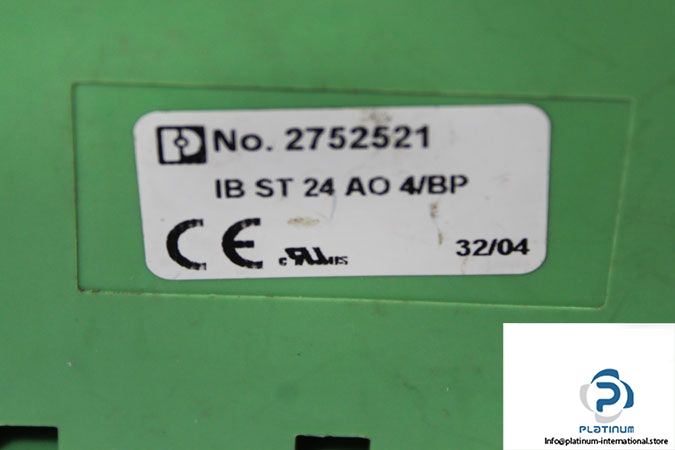

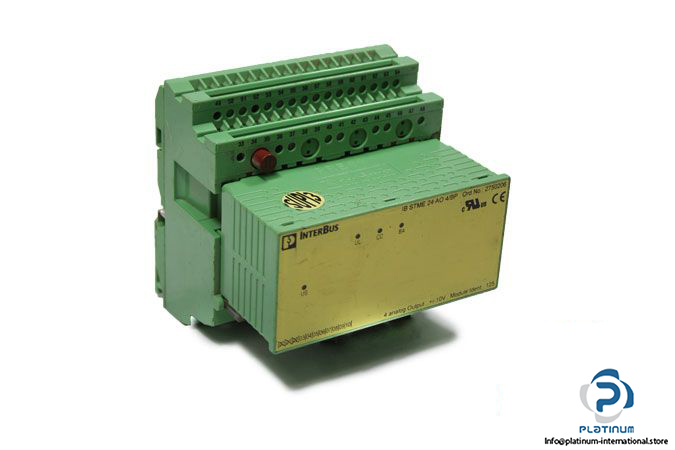

Phoenix Contact IB ST 24 AO 4/BP – 2752521 I/O Module

Manufacturer: Phoenix Contact

Type: I/O Module

Model: IB ST 24 AO 4/BP – 2752521

Order No.: 2752521

Interface: ST local bus

Connection Method: ST local bus connector

Transmission Speed: 500 kbps

Communications Power: 9 V DC (from the ST local bus)

Typical Current Consumption:       150 mA

I/O Voltage: ± 24 VDC 5 % (ripple)

I/O Voltage Range: 18.5 V DC … 30.2 V DC

Max. Power Consumption From the Local Bus     : 130 mA (from the ST local bus) / 100 mA (from the ST local bus)

No. of Channels: 4

Connection Technology: 2-wire

Connection Method: Screw connection

DAC Resolution: 12 Bit

Degree of Protection: IP20

Ambient Temperature (Operation): -20 … 50 °C

Dimensions: 117 X 118 X 116 mm

Weight: 0.6 Kg
