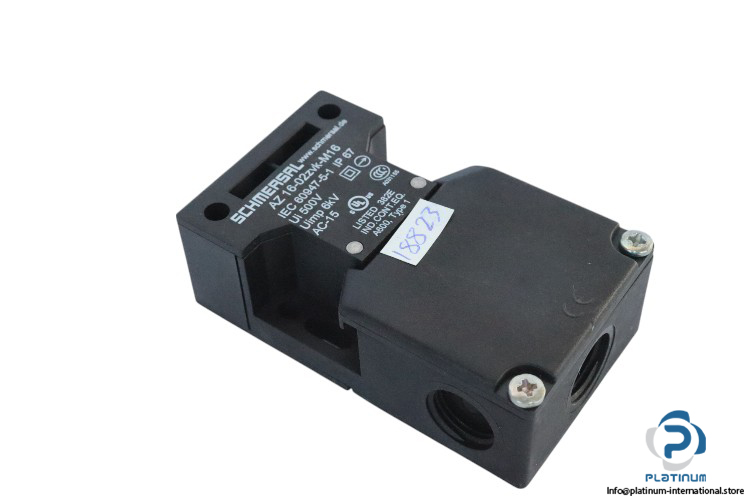

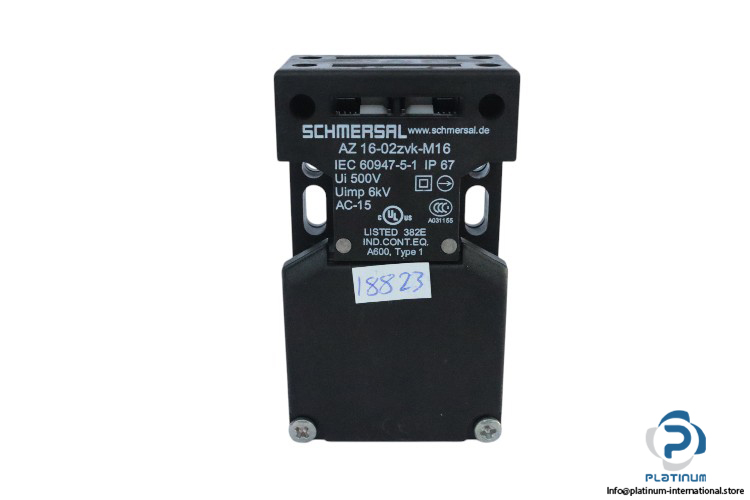

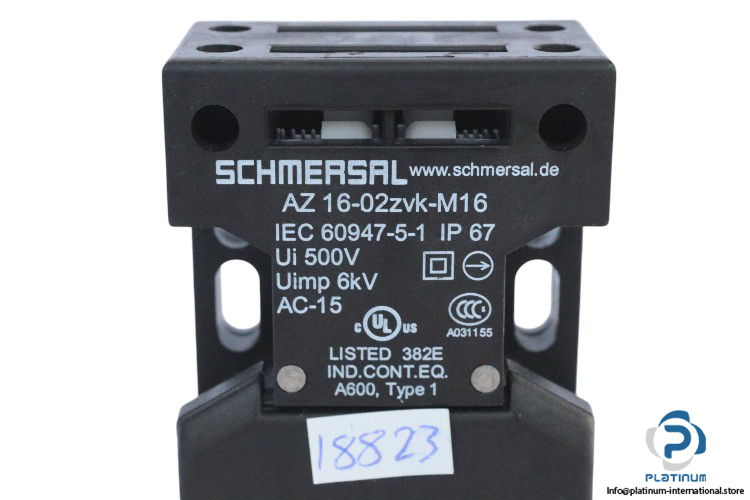

Schmersal AZ 16-02ZVK-M16 Safety Switch

Op voorraad14 eenhedenKlaar voor verzending

Safety Switch

The Schmersal AZ 16-02ZVK-M16 Safety Switch operates with a 500V rated insulation voltage, 6kV rated impulse withstand voltage, and IP67 protection. Ideal for industrial applications with 2 NC contacts and an operating temperature range of -30°C to +80°C.

Fabrikant
SCHMERSAL
SKU
1059695
Staat
Nieuw
Delen
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd

Schmersal AZ 16-02ZVK-M16 Safety Switch

The Schmersal AZ 16-02ZVK-M16 Safety Switch is a highly reliable and robust safety switch designed for ensuring secure operations in industrial environments. This safety switch features a rated insulation voltage of 500V and a rated impulse withstand voltage of 6kV, offering enhanced protection against electrical surges. With screw terminal connections and three M16 cable entries, it ensures easy and secure wiring. The AZ 16-02ZVK-M16 is equipped with two NC contacts and a slow action, positive break NC contact for a high level of safety in critical applications.

It is designed for use in environments with a degree of pollution level 3, and it operates within a thermal test current of 10A. The device is built with an IP67 degree of protection, making it resistant to dust and water, ensuring reliable operation even in harsh environments. With a wide ambient temperature range of -30 to +80°C, it is suitable for a variety of industrial applications. The safety switch's dimensions are 52 mm x 90 mm x 30 mm, making it compact yet highly efficient for industrial safety systems.

Manufacturer: Schmersal

Type: Safety Switch

Model: AZ 16-02ZVK-M16

The Schmersal AZ 16-02ZVK-M16 Safety Switch is a dependable solution for ensuring safe operation in a wide range of industrial environments, offering high protection standards and reliable performance.

Rated Insulation Voltage (Ui)500 V
Rated Impulse Withstand Voltage (Uimp)6 kV
Cable Entry3 x M16 x 1.5
TerminationScrew terminals
Degree of Pollution3
Thermal Test Current10 A
Switching Element2 NC contact
Switching PrincipleSlow action, positive break NC contact
Cable Section0.25 to 2.5 mm²
Degree of ProtectionIP67
Ambient Temperature-30°C to +80°C
Dimensions52 mm x 90 mm x 30 mm
