Schneider Electric M9A26924 Auxiliary Contact Block
Hulprelaisblok SCHNEIDER ELECTRIC Multi9 met 1 wisselcontact, nominale stroom 3/6 A, breed regelspanningsbereik en compact 1-polig IP20 ontwerp voor modulaire elektrische systemen.

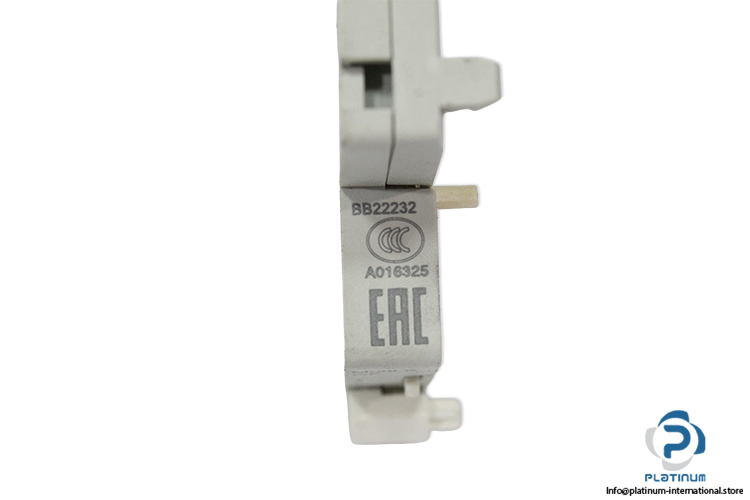

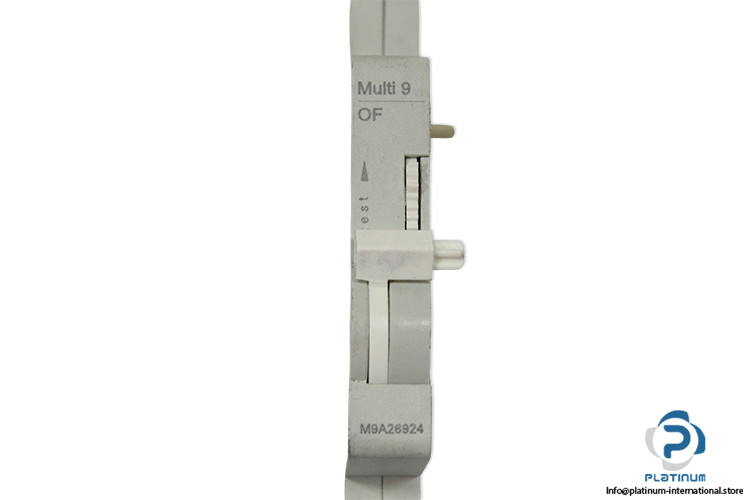

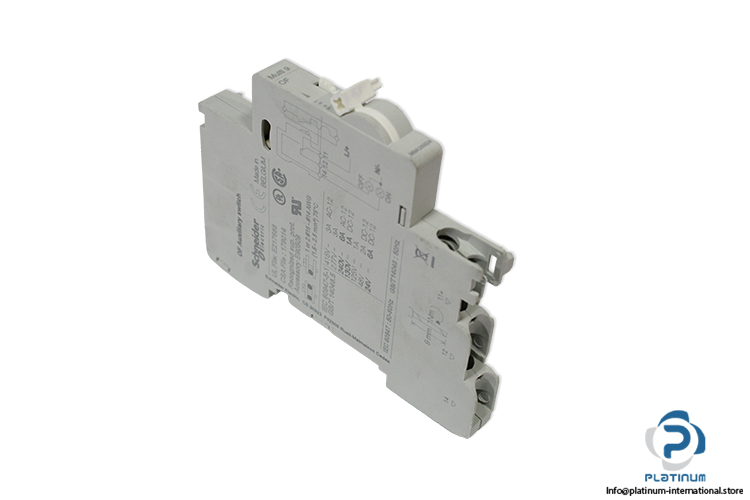

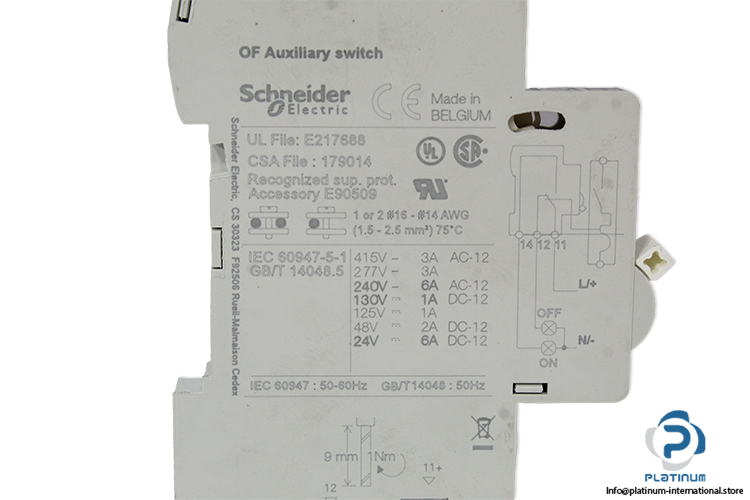

SCHNEIDER ELECTRIC M9A26924 Auxiliary Contact Block
The SCHNEIDER ELECTRIC M9A26924 auxiliary contact block from the Multi9 range is designed to provide remote status signaling and control circuit integration for modular protection devices. With compact dimensions and reliable changeover contact configuration, it ensures efficient monitoring in industrial and commercial electrical installations.
Manufacturer: SCHNEIDER ELECTRIC
Type: Auxiliary Contact Block
Model: M9A26924
| Range | Multi9 |
| Short Name | OF |
| Control Circuit Voltage | 240 ... 415 V AC / 24 ... 130 V DC |
| Rated Operational Current (In) | 3 / 6 A |
| Frequency | 50 / 60 Hz |
| Contact | 1 Changeover (CO) |
| Rated Insulation Voltage | 500 V |
| Rated Impulse Voltage (Uimp) | 4 kV |
| Poles No. | 1-Pole |
| Protection Class | IP20 |
| Ambient Temperature | -25 / 50 °C |
| Dimensions | 85 x 9 x 73.5 mm |
