Schneider KNB 25CF5 TAP OFF Unit
Tap-Off Unit SCHNEIDER ELECTRIC KNB 25CF5 plug-in tap-off unit voor Canalis KN bussysteem, 25 A nominaal met vaste polariteit montage en IEC-conform ontwerp.
SCHNEIDER ELECTRIC KNB 25CF5 Tap Off Unit

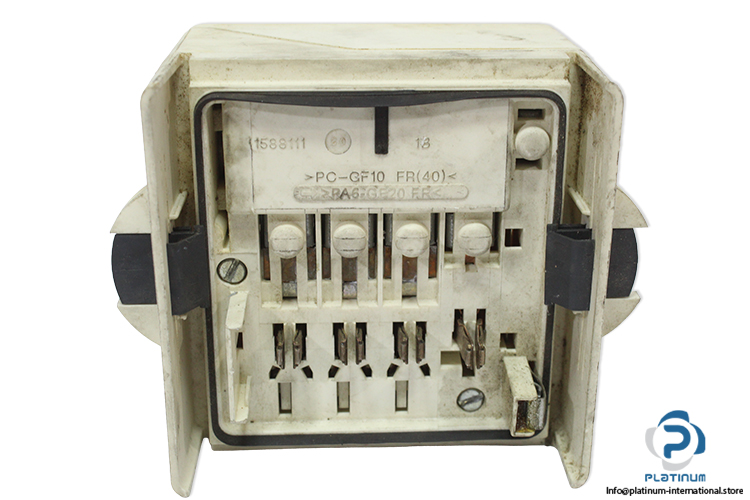

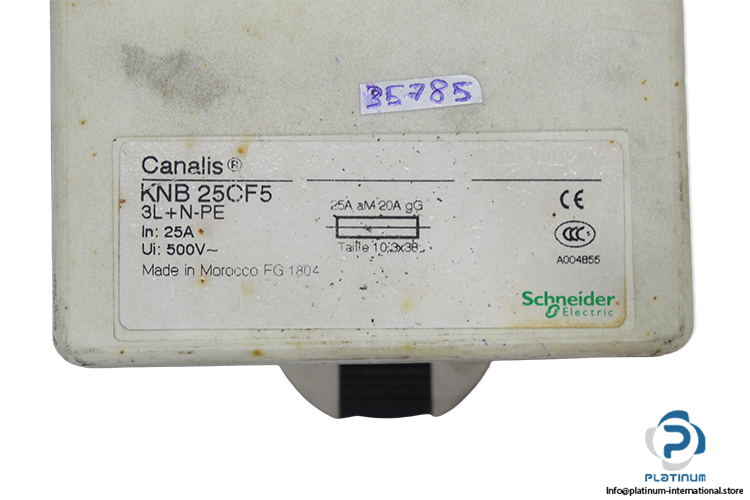

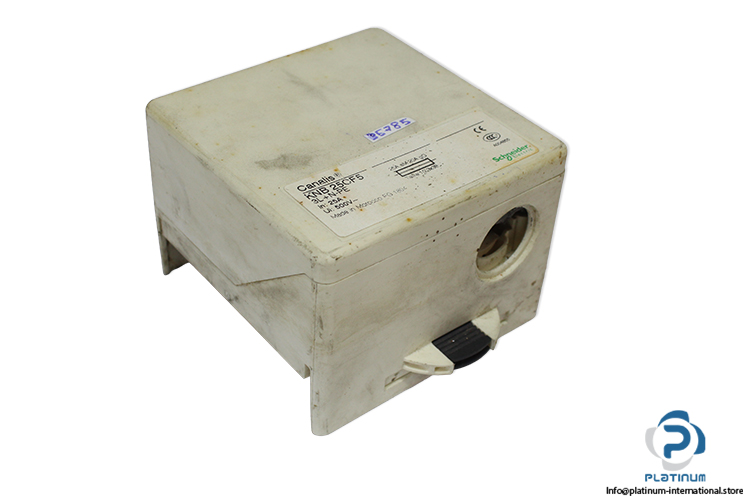

The SCHNEIDER ELECTRIC KNB 25CF5 is a plug-in tap-off unit designed for Canalis KN busbar trunking systems. It provides safe and efficient power distribution with fixed polarity mounting and compatibility with cylindrical fuse isolators.
Manufacturer: SCHNEIDER ELECTRIC
Type: Tap Off Unit
Model: KNB 25CF5
Range Of Product: Canalis
Range Compatibility: Canalis KN Busbar Trunking
Product Or Component Type: Tap-Off Unit
Busbar Trunking Compatibility: Canalis KN Busbar Trunking Plug-In
Protection Type:
Provided Equipment:
Fuse To Be Ordered Separately
Cable Clamp
Standards:
IEC 61439-1
IEC 61439-6
| Rated Operational Current (Ie) | 25 A At 35 °C |
| Fuse Isolator | For aM Cylindrical Fuse, Size 10 x 38 mm “ 25 A Conforming To NF |
| Fuse Isolator | For gG Cylindrical Fuse, Size 10 x 38 mm “ 20 A Conforming To NF |
| Mounting Mode | Plug-In With Fixed Polarity |
| Rated Operational Voltage (Ue) | 230...500 V Depending On Protective Device |
| Rated Impulse Withstand Voltage (Uimp) | 4.6 kV |
| Rated Insulation Voltage (Ui) | 500 V Depending On Protective Device |
| Network Frequency | 50/60 Hz |
| Width | 103 mm |
| Depth | 48.8 mm |
| Height | 161 mm |
| Configuration | 3L + N + PE |
