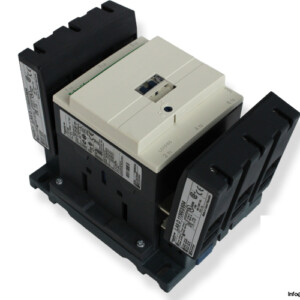

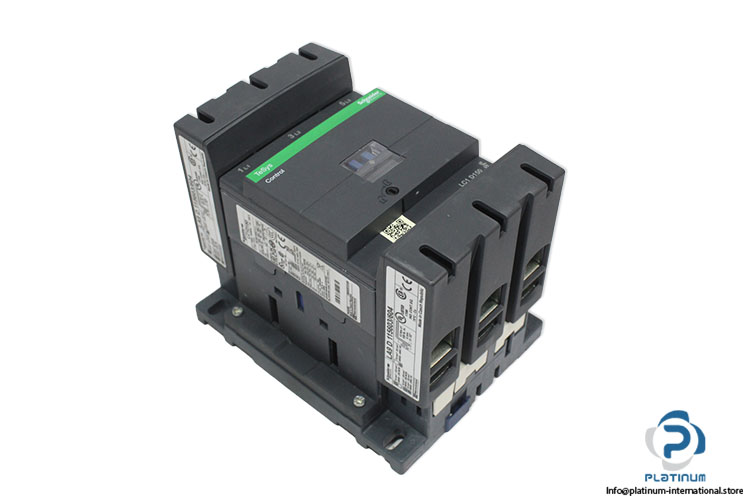

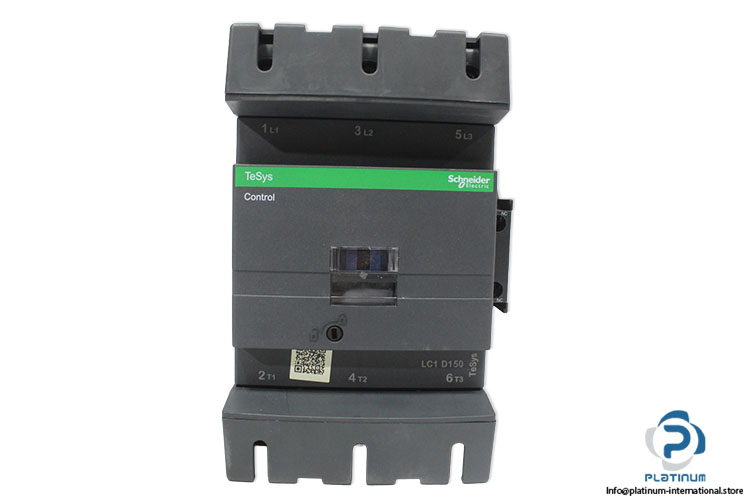

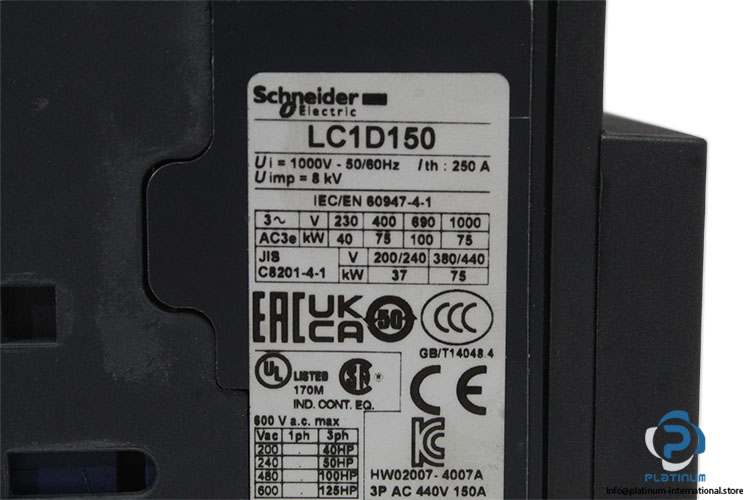

Schneider LC1 D150P7 Contactor
Nieuw
Op voorraad1 eenheidKlaar voor verzending
Contactor Body Without Coil SCHNEIDER TeSys Deca LC1D150 contactor body with 3 NO contacts, 75 kW motor rating, and durable industrial design for motor control and switching applications.
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd
| MNR | LC1D150P7 |
| Part No. | 047607 |
| Ref No | PK2422/LC1 D150P7 |
| SN | 3389110476071 |

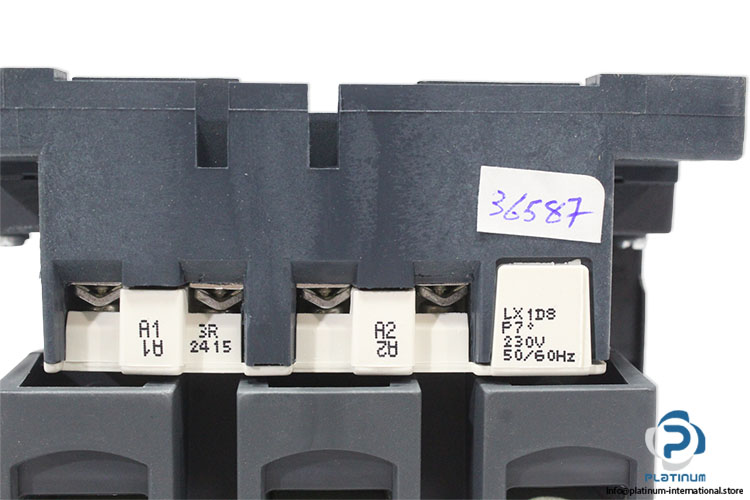

| Coil Model | LX1DS |
| Range | TeSys |
| Range of product | TeSys Deca |
| Product or Component Type | Contactor |
| Device short name | LC1 D |
| Utilisation category | AC-4/AC-1/AC-3/ AC-3e |
| power pole contact composition | 3 NO |
| Motor power kW at 380...400 V AC 50/60 Hz (AC-3) | 75 kW |
| Poles description | 3P |
| Control circuit voltage | 230 V AC, 50/60 Hz |
| Rated insulation voltage (Ui) | 1000 V AC, 50/60 Hz |
| Conventional free air thermal current (Ith) | 200 A |
| Rated impulse withstand voltage (Uimp) | 8 KV |
| Operating Temperature | -40 … +60 °C |
| Degree of Protection | IP20 |
| Dimensions | 158 x 120 x 136 mm |
| Standard | IEC / EN 60947-4-1 |

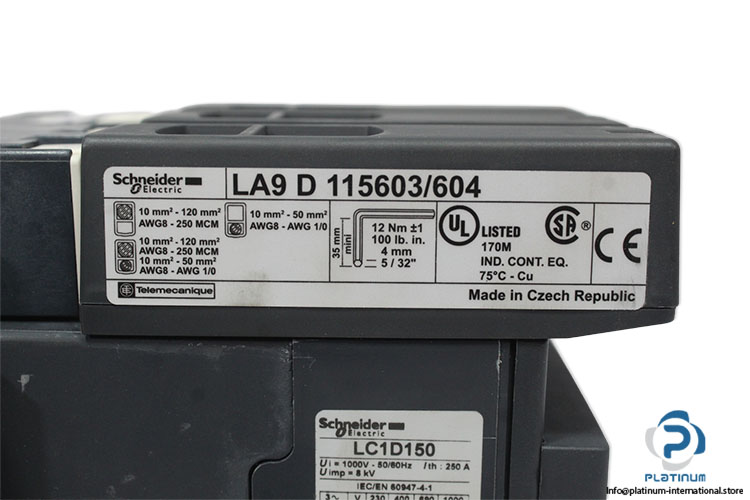

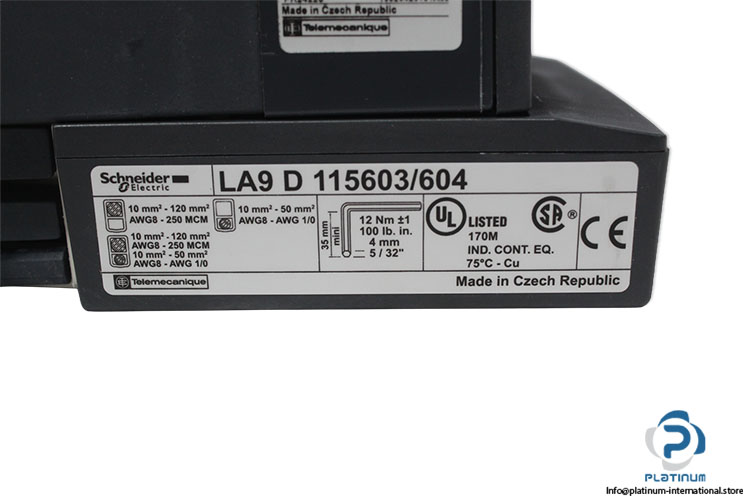

| Attached with1 | SCHNEIDER LA9 D 115603/604 Terminal Block |
| Stock key | CON-003 |
| Condition | New |
| SKU | 1099306 |
| Weight | 2,5 |
