Sick DME5000-111 Laser Distance Sensor

Name: SICK DME5000-111 LASER DISTANCE SENSOR
SKU: 1044396
Availability: LimitedAvailability

sick-DME5000-111-laser-distance-sensor-(used)

sick-DME5000-111-laser-distance-sensor-(used)-1

sick-DME5000-111-laser-distance-sensor-(used)-2

sick-DME5000-111-laser-distance-sensor-(used)-3

sick-DME5000-111-laser-distance-sensor-(used)-4

sick-DME5000-111-laser-distance-sensor-(used)-5

Gebruikt

Op voorraad2 eenhedenKlaar voor verzending

Fabrikant: Sick Type: Lasafstandsensor Model: DME5000111 Onderdeelnummer: 1022949

Fabrikant

SICK

SKU

1044396

Categorie

Sensors

Staat

Gebruikt

2DO 70000mm Distance long Range Sensor Sick

Enorme Voorraad

Wereldwijde verzending

Deskundige Ondersteuning

Kwaliteit Gegarandeerd

Manufacturer: Sick
Type: Laser distance sensor
Model: DME5000111
Part No.: 1022949

Supply voltage: 18 … 30 V DC
Measurement range: 0.15 … 70 m
Light spot size (distance): 130 mm (@ 70 m), 270 mm (@ 150 m), 360 mm (@ 220 m)
Digital output: (2 DO) Push-pull: PNP/NPN
Maximum output current: ≤ 100 mA
Current consumption: < 250 mA @24 V DC
Housing material: Metal (zinc diecast)
Window material: Glass

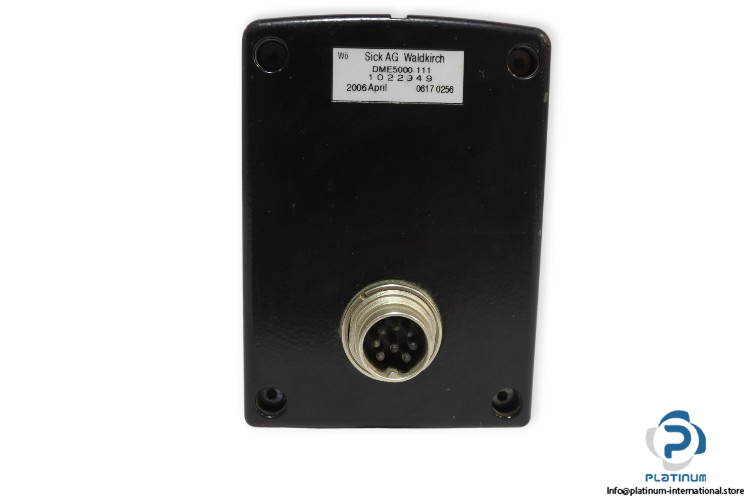

Connection type: Male connector, M16, 8-pin
Indication: Display
Light source: Laser, red
Target: Reflector
Resolution: 0.05 mm … 5 mm
Protection degree: IP65
Operation temperature: -10 … 55°C
Dimensions: 61 x 101 x 176 mm

Specificatie	Waarde
Weight	1,69 kg
Condition	Used
Manufacturer	SICK
Max. Sensing Range [mm]	70000
Nominal Voltage [DC]	24 V
Shelf No.	240820
Type of Product	Laser distance sensor
Part No.	1022949
Dimensions [mm]	61 x 101 x 176
