Sick DME5000-111 Laser Distance Sensor

Manufacturer: Sick
Type: Laser distance sensor
Model: DME5000111
Part No.: 1022949

Supply voltage: 18 … 30 V DC
Measurement range: 0.15 … 70 m
Light spot size (distance): 130 mm (@ 70 m), 270 mm (@ 150 m), 360 mm (@ 220 m)
Digital output: (2 DO) Push-pull: PNP/NPN
Maximum output current: ≤ 100 mA
Current consumption: < 250 mA @24 V DC
Housing material: Metal (zinc diecast)
Window material: Glass

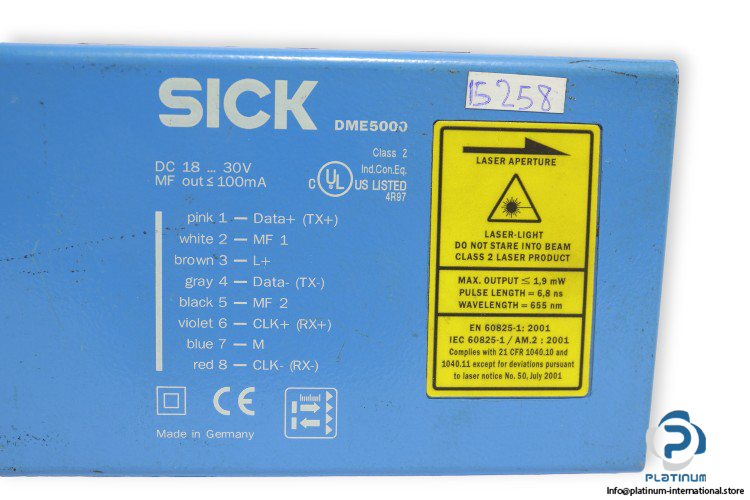

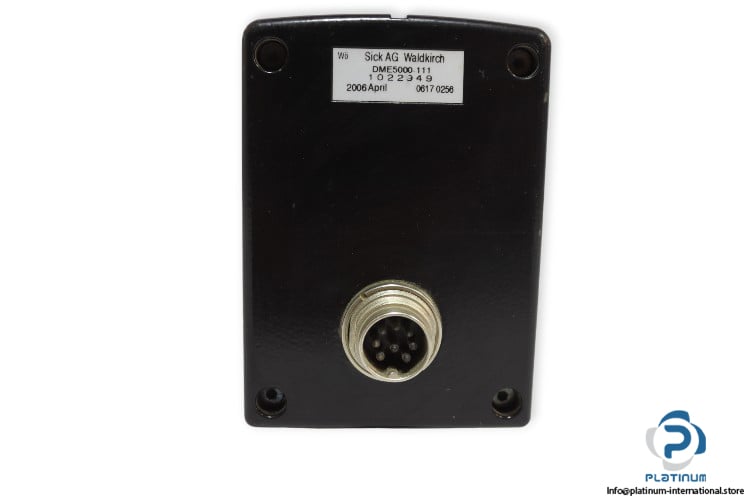

Connection type: Male connector, M16, 8-pin

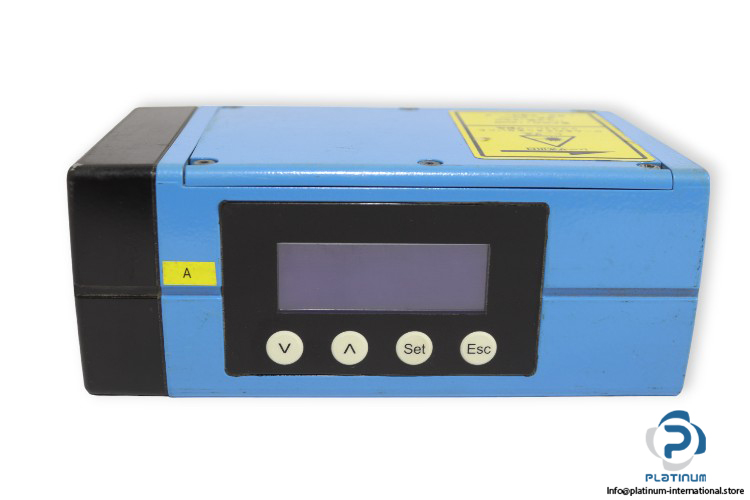

Indication: Display
Light source: Laser, red
Target: Reflector
Resolution: 0.05 mm … 5 mm
Protection degree: IP65
Operation temperature: -10 … 55°C
Dimensions: 61 x 101 x 176 mm
