Stahl 9461/12-08-11 Analog Input Module

Op voorraad19 eenhedenKlaar voor verzending

99,99$

Analoge ingangsmoduul STAHL AIM HART 08 voor IS1-systeem met 8 kanalen, HART-communicatieondersteuning en 0“20 mA / 4“20 mA signaalbereik voor industriële procesbewaking.

Fabrikant
STAHL
SKU
1096065
Categorie
Others
Staat
Gebruikt
Delen
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd

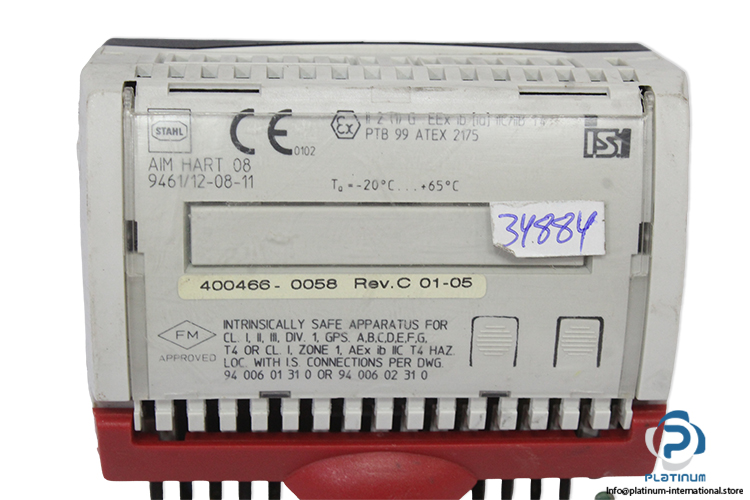

STAHL AIM HART 08 Analog Input Module

The STAHL AIM HART 08 is an industrial analog input module designed for the IS1 remote I/O system. It supports multiple current signal ranges and integrates HART communication capability for advanced field device diagnostics and monitoring in hazardous environments.

Manufacturer: STAHL

Type: Analog Input Module

Model: AIM HART 08

Order No.: 9461/12-08-11

Code: 400466-0058

Revision: C 01-05

Series: 9461

System: IS1

Max. Voltage (U0)26.2 V
Max. Current (I0)91 mA
Max. Power (P0)591 mW
Max. Capacitance Ca For IIC73 nF
Max. Inductance La For IIC0.5 mH
Number Of Input Channels8
Supported Transmitters2-Wire Transmitter With/Without HART
Signal Range0 .. 20 mA, 4 .. 20 mA
Minimum Signal0 mA
Maximum Signal23.5 mA
Supply Voltage16.0 V At 20 mA For 2-Wire Transmitters
Max. Short Circuit Current35 mA
Operating Threshold Open-Circuit Monitoring2.4 mA, 3.6 mA For Signal 4 .. 20 mA (Parameterizable)
Power ConsumptionMax. 6.6 W
Power LossMax. 3.7 W
Ambient Temperature-20 ... +65 °C
ProtectionExplosion Proof
