Stahl 9461/12-08-11 Analog Input Module
Used
In stock19 unitsReady to ship
99,99$
Analog Input Module
STAHL AIM HART 08 analog input module for the IS1 system featuring 8 channels, HART communication support, and 0“20 mA / 4“20 mA signal range for industrial process monitoring.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

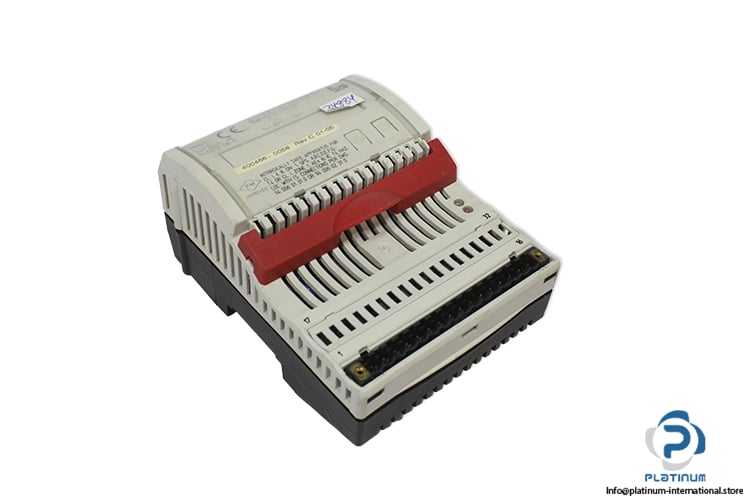

STAHL AIM HART 08 Analog Input Module
The STAHL AIM HART 08 is an industrial analog input module designed for the IS1 remote I/O system. It supports multiple current signal ranges and integrates HART communication capability for advanced field device diagnostics and monitoring in hazardous environments.
Manufacturer: STAHL
Type: Analog Input Module
Model: AIM HART 08

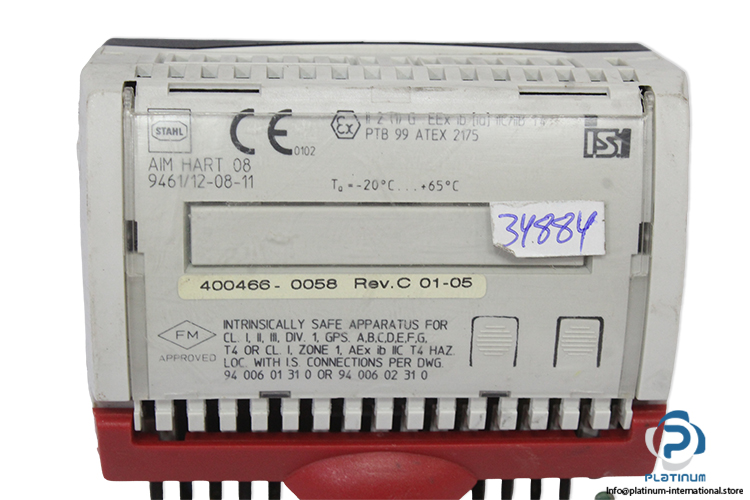

Order No.: 9461/12-08-11
Code: 400466-0058
Revision: C 01-05
Series: 9461
System: IS1
| Max. Voltage (U0) | 26.2 V |
| Max. Current (I0) | 91 mA |
| Max. Power (P0) | 591 mW |
| Max. Capacitance Ca For IIC | 73 nF |
| Max. Inductance La For IIC | 0.5 mH |
| Number Of Input Channels | 8 |
| Supported Transmitters | 2-Wire Transmitter With/Without HART |
| Signal Range | 0 .. 20 mA, 4 .. 20 mA |
| Minimum Signal | 0 mA |
| Maximum Signal | 23.5 mA |
| Supply Voltage | 16.0 V At 20 mA For 2-Wire Transmitters |
| Max. Short Circuit Current | 35 mA |
| Operating Threshold Open-Circuit Monitoring | 2.4 mA, 3.6 mA For Signal 4 .. 20 mA (Parameterizable) |
| Power Consumption | Max. 6.6 W |
| Power Loss | Max. 3.7 W |
| Ambient Temperature | -20 ... +65 °C |
| Protection | Explosion Proof |
