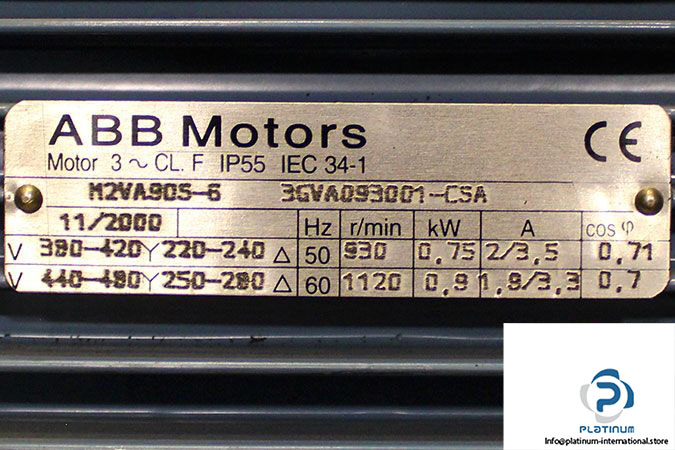

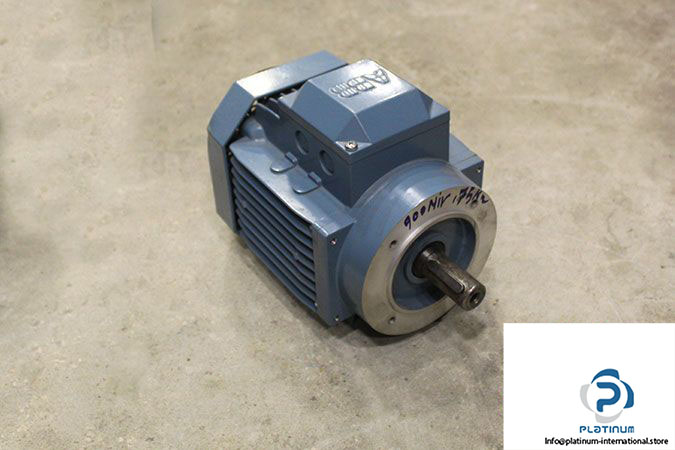

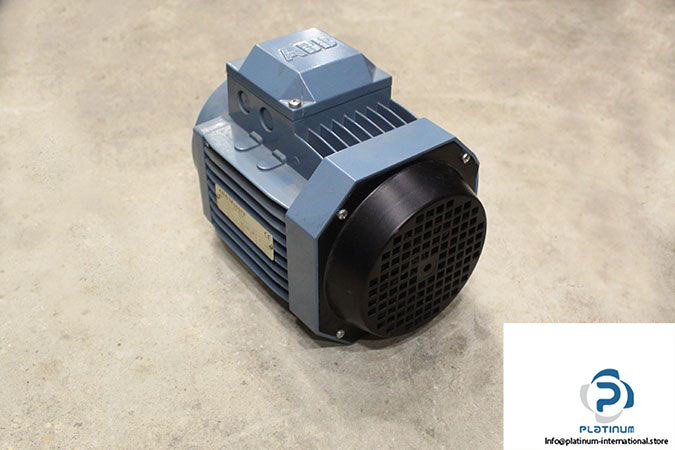

ABB M2VA90S-6 3GVA093001-CSA 3 Phase Electric Motor

Manufacturer: ABB

Type: 3 Phase Electric Motor

Model: M2VA90S-63GVA093001-CSA

At 50 Hz

Rated Voltage (Star): 380…420 V

Rated Voltage (Delta): 220…240 V

Rated Speed: 930 min^-1

Rated Power: 0.75 kW

Rated Current (Star): 2.0 A

Rated Current (Delta): 3.5 A

Power Factor: 0.71

At 60 Hz

Rated Voltage (Star): 440…480 V

Rated Voltage (Delta): 250…280 V

Rated Speed: 1690 min^-1

Rated Power: 0.30 kW

Rated Current (Star): 1.9 A

Rated Current (Delta): 3.3 A

Power Factor: 0.7

Shaft Diameter: 24 mm

Flange Diameter: 140 mm

Number of Poles: 6

Motor Size: 90S

Protection Class: IP55

Insulation Class: F

Weight: 12.9 kg
