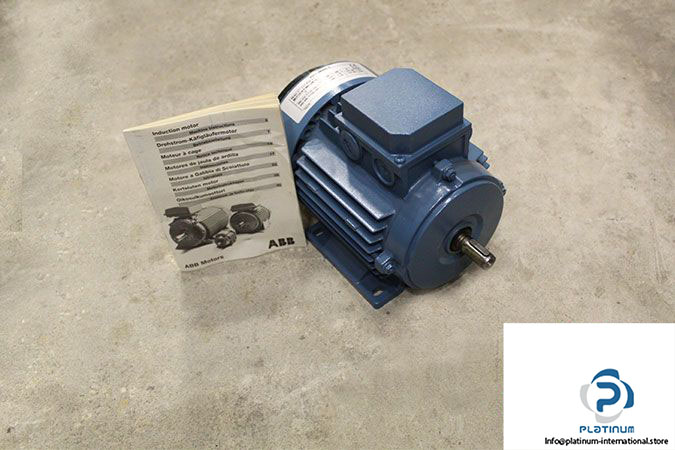

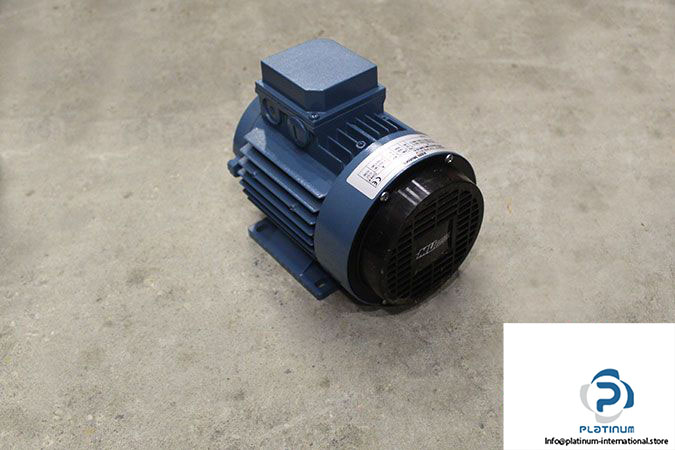

ABB MU71A14-4 MK129016-S 3 Phase Electric Motor

Manufacturer: ABB

Type: 3 Phase Electric Motor

Model: MU71A14-4MK129016-S

At 50 Hz

Rated Voltage (Star): 380…420 V

Rated Voltage (Delta): 220…240 V

Rated Speed: 1400 min^-1

Rated Power: 0.25 kW

Power Factor: 0.57

At 60 Hz

Rated Voltage (Star): 440…480 V

Rated Voltage (Delta): 250…280 V

Rated Speed: 1690 min^-1

Rated Power: 0.3 kW

Power Factor: 0.59

Rated Current (Star): 1.1 A

Rated Current (Delta): 1.9 A

Shaft Diameter: 14 mm

Motor Size: 71A

Number of Poles: 4

Protection Class: IP55

Insulation Class: F

Weight: 5.05 kg
